VERTICAL CONTACT TOASTER
P/N 1010719 Rev. E 02/13
Hi-Limit Reset Button
A hi-limit thermostat will turn off electrical power to the
heater and control circuits if the unit overheats. To
reset this thermostat, allow sufficient time (10-15 min-
utes) for the unit to cool down, then depress the reset
button located on the rear of the unit (Figure 5).
If the unit requires continuous resetting, contact your
Roundup authorized service agency.
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
551

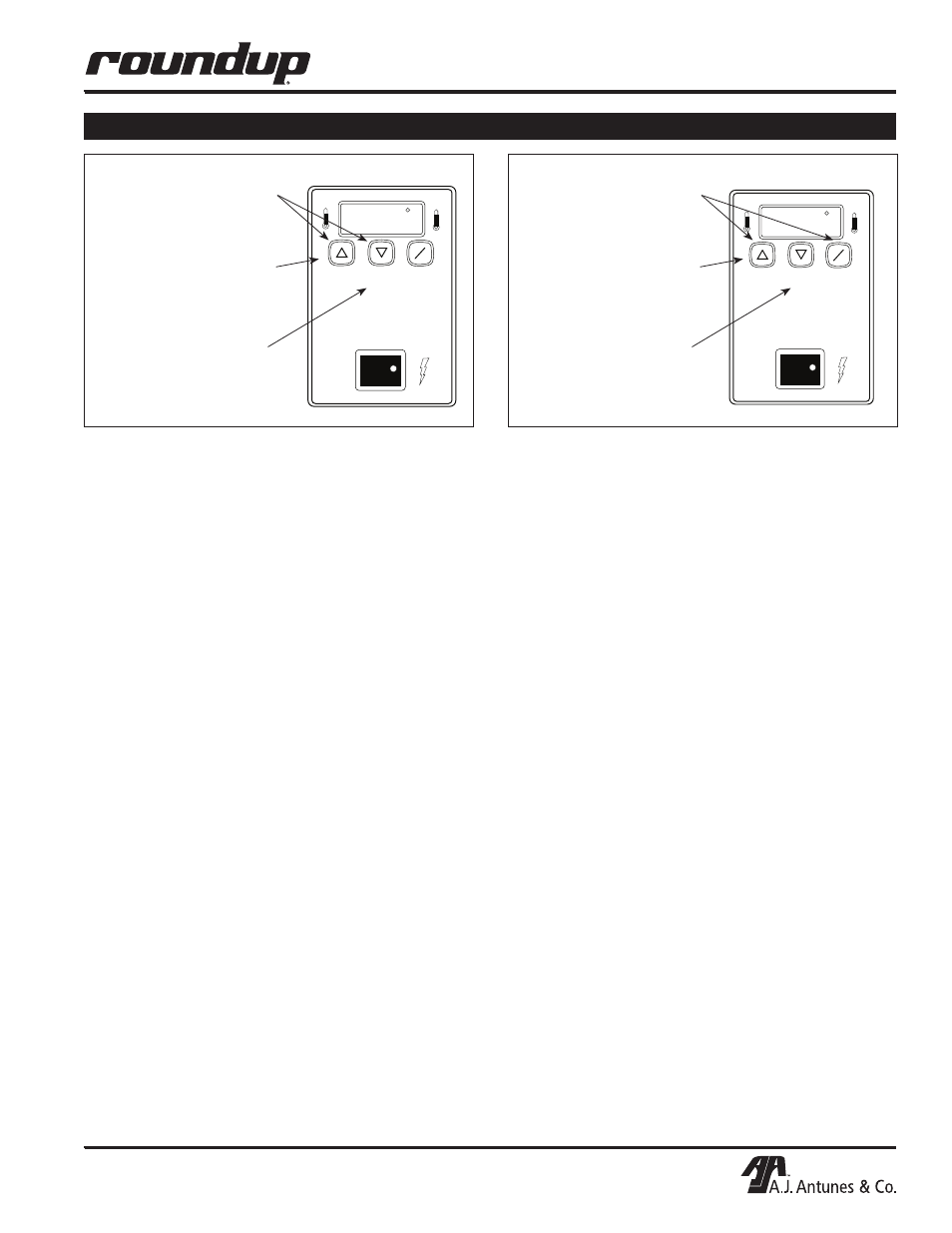

Figure 8. Adjusting Platen Heater
Temperature Setpoint
1. Press both keys at the same
time for 1 second to start
adjustment sequence.
2. Press TEMP UP key to raise
platen setpoint temperature.
3. Press TEMP DOWN key to
lower platen setpoint
temperature.
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
336
Figure 9. Adjusting Auxiliary Heaters
Temperature Setpoint
1. Press both keys at the same
time for 1 second to start
adjustment sequence.
2. Press TEMP UP key to raise
auxiliary heaters setpoint
temperature.
3. Press TEMP DOWN key to
lower auxiliary heaters
setpoint temperature.
OPERATION (continued)
