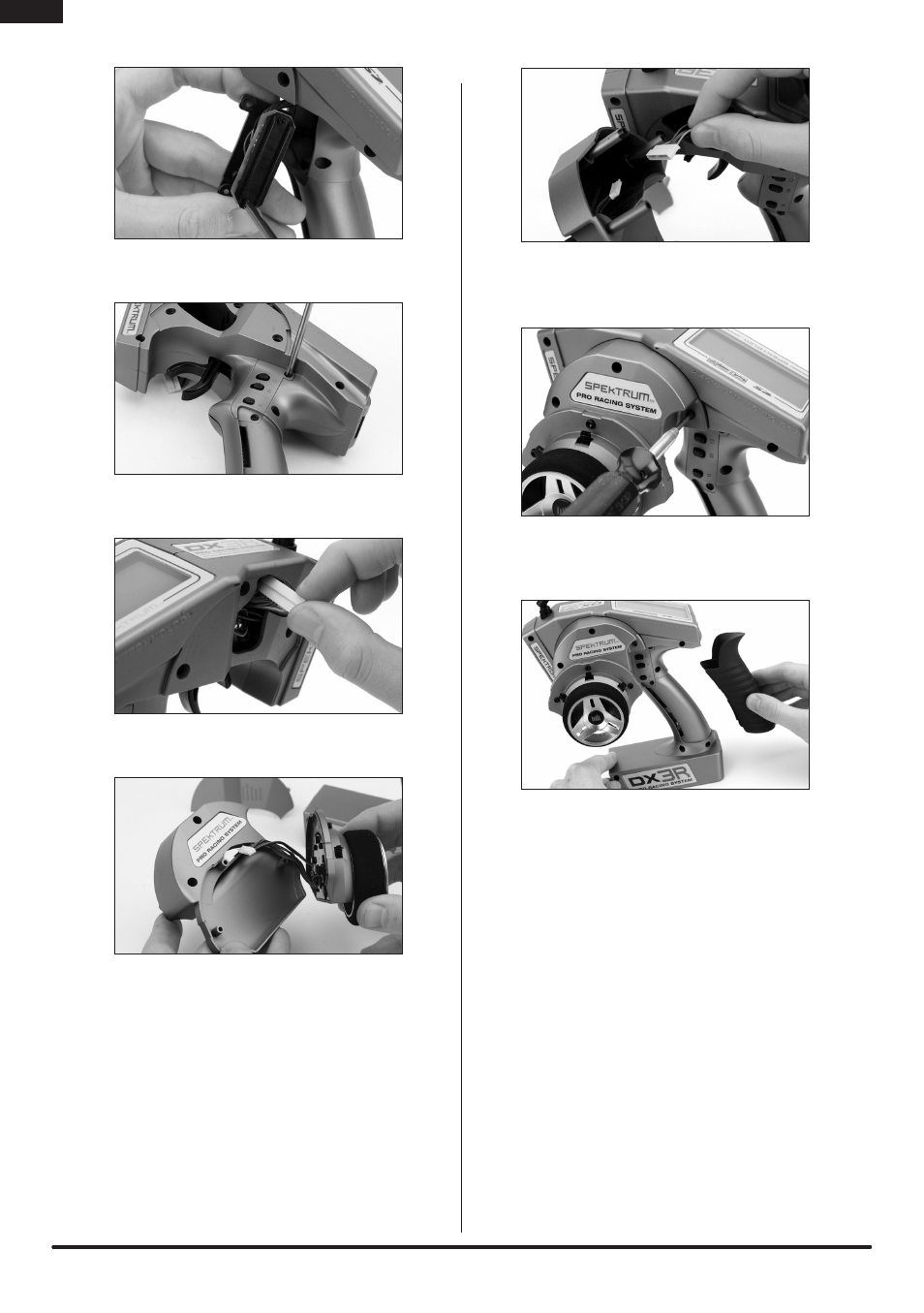

8. Carefully screw the PC board and backplate in place
and test that all buttons are depressing properly.
9. Place both grip plates in place and fasten them
using four Phillips screws (two per side).
10. Push the steering wheel connector through the
transmitter case to the opposite side.
11. Select the opposite “handed” steering shell and
pass the steering wheel mechanism connector
through the hole in the shell.
12. Connect the steering wheel mechanism connector
to the connector from the transmitter. Make sure
the connection is tight. Note correct polarity.
13. Fit the other handed backplate in place and
secure the steering wheel assembly in place
using the three long cap head screws.
14. Fit the grip in place and reinstall the batteries.
Note that the buttons D and E now work in reverse.
You will need to change the direction of these
switches in the System menu (see page 15, 16).
