10 SPEKTRUM DX3R PRO USER GUIDE
EN

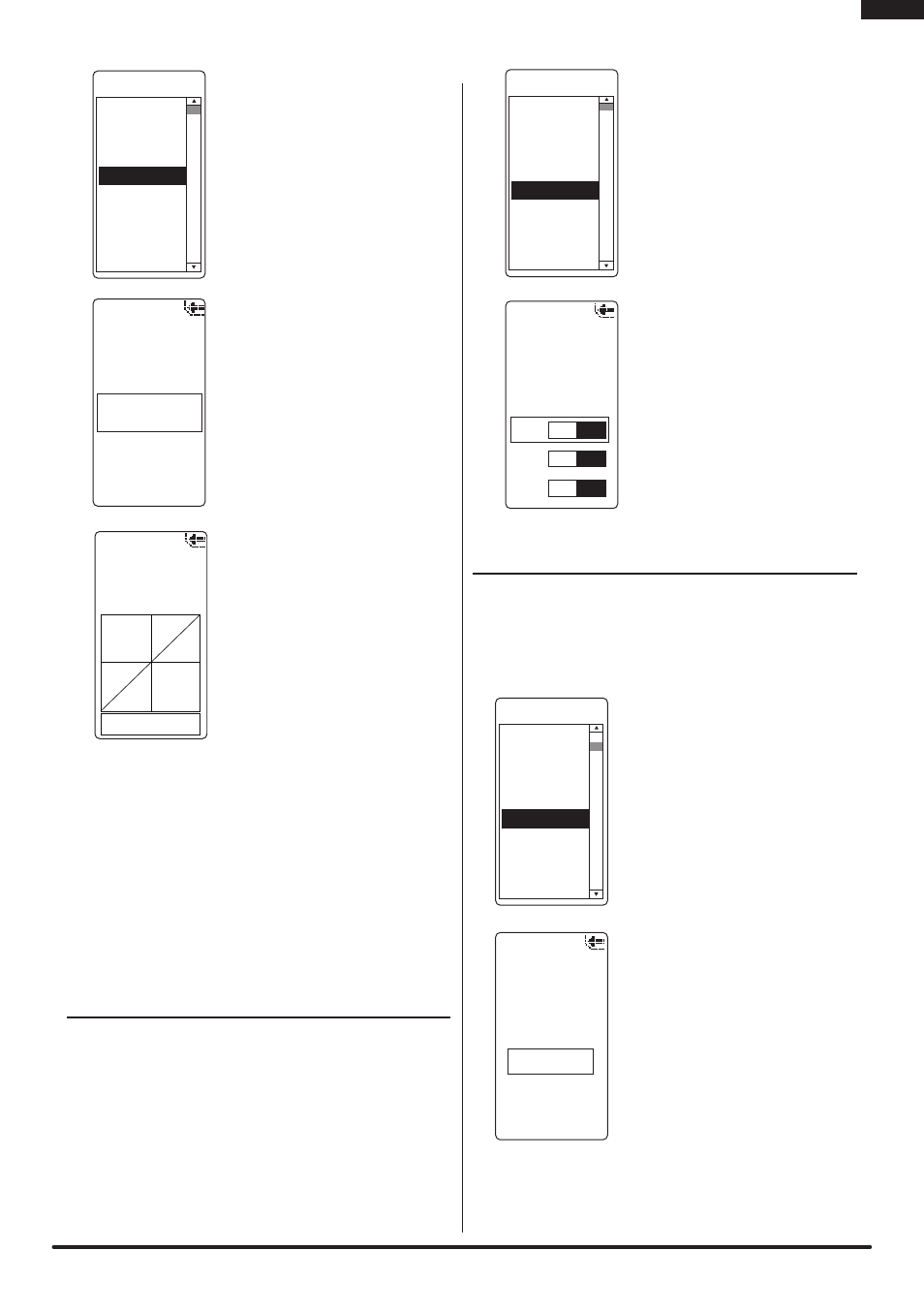

• From the List screen, highlight
the Exponential function.
• Press the roller to enter the
Exponential function. The Expo
screen will display as shown.
Changing Values Equally:
• Rotate the roller to highlight the
channel you wish to adjust.
ST= Steering
TH= Throttle and brake
AX= Auxiliary channel 3
• Press the roller to enter the
highlighted channel’s travel
function.
• Rotate the roller to highlight
the values at the bottom of the
screen. Press the roller to select
the values.
• Rotating the roller wheel will
now adjust both the right and left
values simultaneously.
Changing Values
Independently:
• To adjust the right or left values
independently, rotate the wheel
left or right for steering and aux,
or move the trigger forward or
backward for throttle. The left and
right values can now be adjusted independently.
• To highlight both values again, press the roller once
and both values will be highlighted.
Note: Positive and negative Expo values are
available. A positive Expo value results in the
center being less sensitive (desirable most of
the time) while a negative value increases the
sensitivity around center (normally not used).
rEvErsE
The Reverse function (servo reverse) establishes the
servo’s direction relative to the channel’s input (e.g., a
right steering input should result in a right steering angle
at the car). Reverse is available on all three channels.
• From the List screen, highlight
the Reverse function.
• Press the roller to access the
Reverse function.
The following screen appears.
• Use the roller to select the
channel you wish to reverse.
ST=Steering
TH=Throttle
AX= Auxiliary
• Press the roller to highlight that
channel and the surrounding
box will flash. Rotate the roller
to change to the desired servo
direction (REV or NOR).
• Press the roller to set the value.
sub-TrIm
The Sub-Trim function corrects for minor angular
inaccuracies that occur when placing the servo horn
on the servo. In many cases, the servo horn is not
exactly perpendicular to the servo, or in the exact
optimum desired position.
• From the List screen, highlight
the Sub-Trim function.
• Press the roller to access the
Sub- Trim function.
The following screen appears.
• Use the roller to select the
channel you wish to reverse.
ST=Steering
TH=Throttle
AX= Auxiliary
• Press the roller to highlight that
channel. The surrounding box
will flash. Rotate the roller to
adjust the value and direction of
the sub-trim.
• Press the roller to set the value.
