Installation
Oven Assembly
DOUBLE SEctiOn ASSEMBLY
1. Secure the short legs to the bottom sections as de-
scribed.
2. Place the upper section in position on top of the lower
oven.
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
OvEn LEvELinG
After assembly, the oven should be leveled and moved to
the operating location.
1. The oven can be leveled by adjusting the feet or cast-
ers located on the botto
Flue Connector

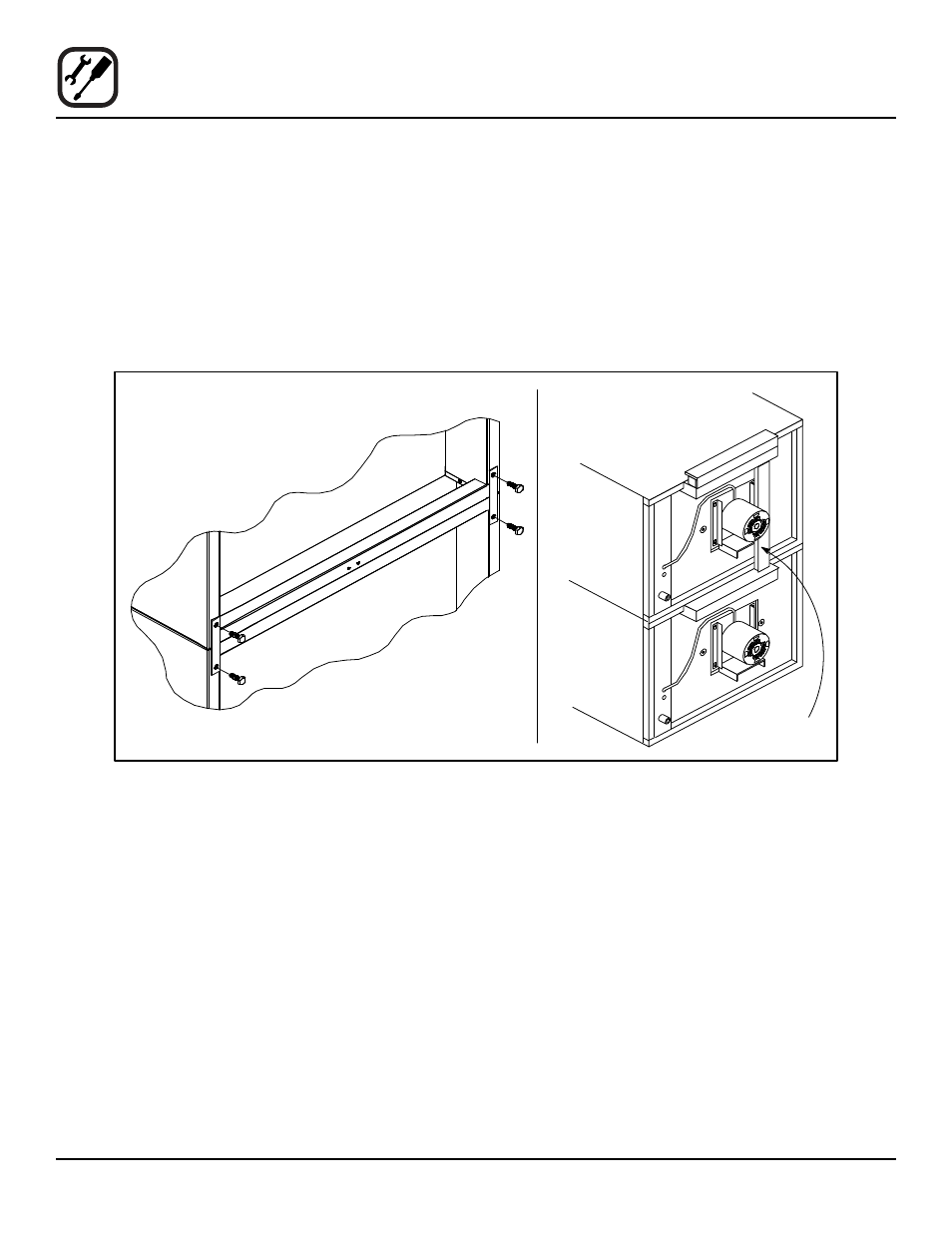

Figure 6
