supervisor. For more details, contact your local Novell network
administrator or refer to the Novell documentation.
2. Ensure that the routers you want to configure are connected as described in
the Quick Install Guide.
3. Connect a terminal to the console port (port 0) on each router as described
in the in the Quick Install Guide. Alternatively, you can connect a PC to the
console port and use a terminal emulation program like Windows™
Terminal.
4. Login to the MANAGER account on each router. (see “Logging In” on
page 15)
Configuring IPX
This example (Figure 10 on page 96) illustrates the steps required to configure a
pair of AR410 routers to create a Novell® IPX internetwork, using the router’s
command line interface. In this scenario, PCs at a remote office need access to a
Novell file server at the Head Office site. The two sites are connected by a PPP
link over a wide area link—either a dedicated leased line or an ISDN call.

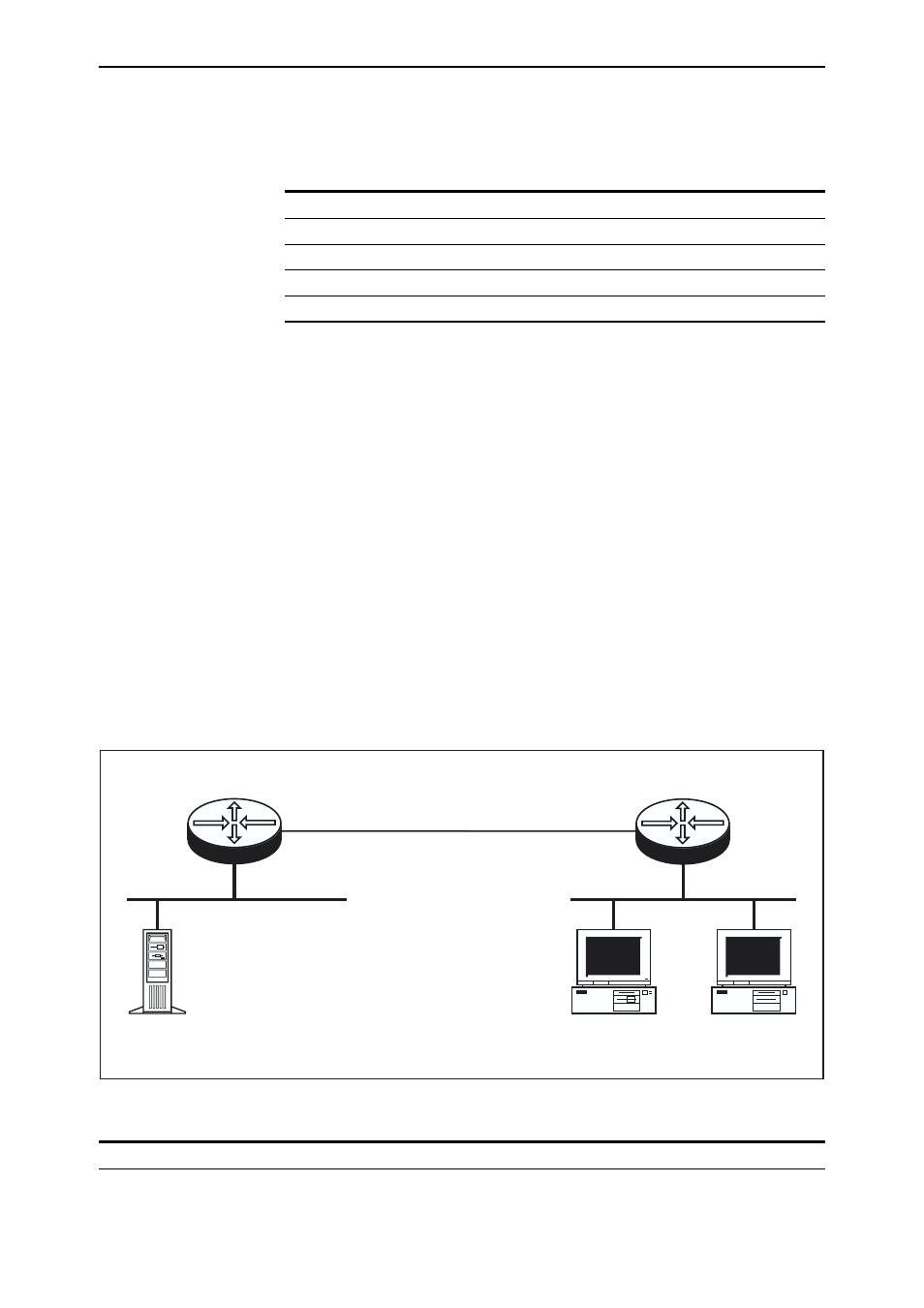

Figure 10: Example configuration for an IPX network.
Table 11: Frame type and equivalent router encapsulation.
Novell Frame Type Router Encapsulation
Ethernet_802.3 802.3
Ethernet_802.2 802.2
Ethernet_II EthII
Ethernet_SNAP SNAP
Head Office Router
Network = 401
Remote Office Router
Network = 12
Netware
File Server Remote PC Remote PC
PPP Data Link
Network = 129
UGIPX1_R
Table 12: Example configuration parameters for an IPX network .
Configuration Parameter Head Office Router Remote Office Router
Ethernet interface eth0 eth0
