Installing the Switch
10
Caution
Pluggable Equipment: The socket outlet should be installed near the
equipment and should be easily accessible.
$
13
Caution
Air vents: The air vents must not be blocked on the unit and must have
free access to the room ambient air for cooling.
$
14
Caution
Operating Temperature: This product is designed for a maximum
ambient temperature of 40°C.
$
16
Caution
All Countries: Install this product in accordance with local and
National Electric Codes.
$
17
Installing the Switch
To install an AT-FS21x or AT-FS212/x Series Switch, perform the following
procedure:
1. Remove all equipment from the package and store the packaging in a safe
place.
2. Remove the mounting bracket screws, as shown in Figure 3. These screws
are marked with black circles.

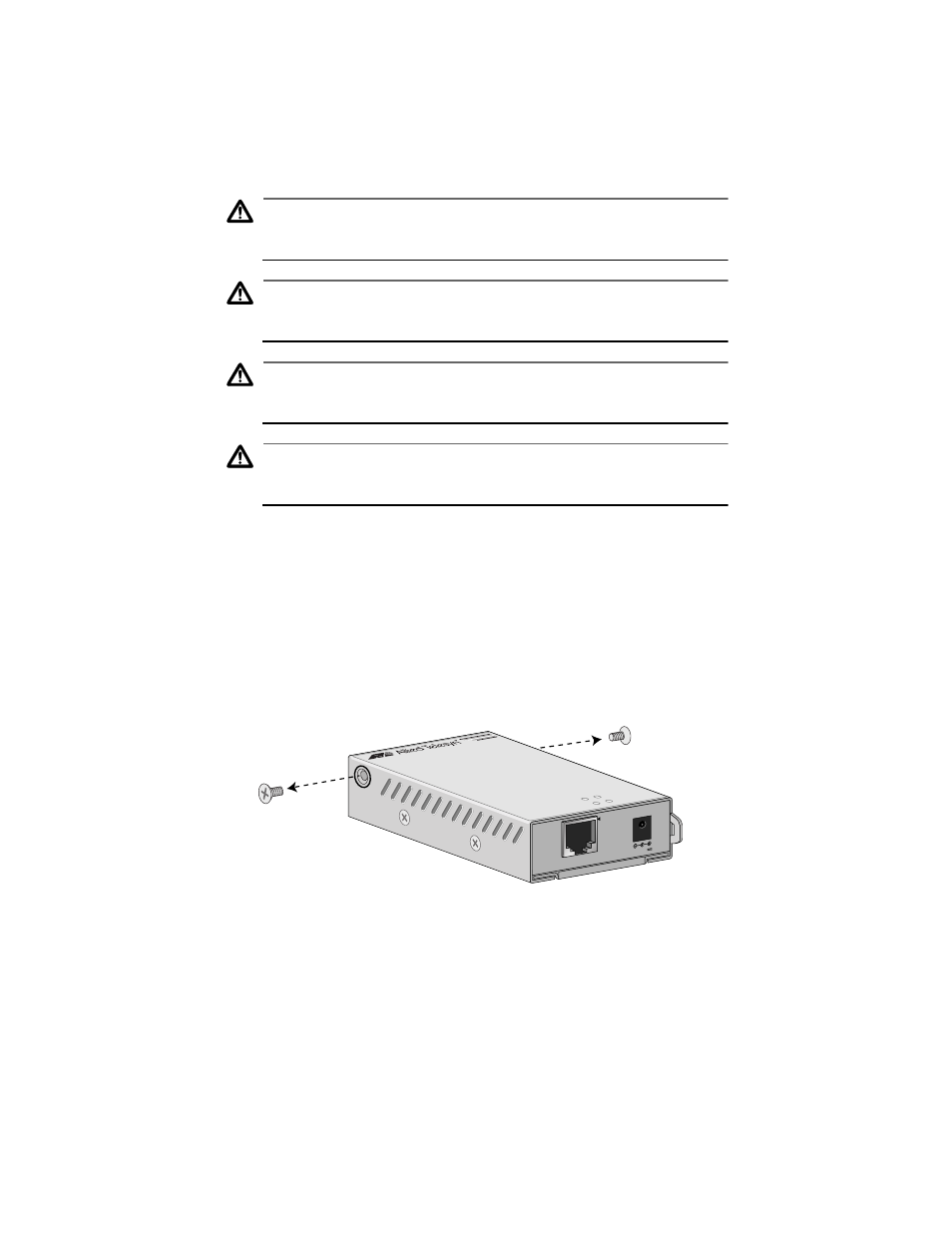

Figure 3 Removing the Mounting Bracket Screws
FX
TX
PWR
Fast E therne t Switc
h
AT-FS2
14
10Base -T/
100Base -TX
3.3VDC
