Overview
6
Network Topologies

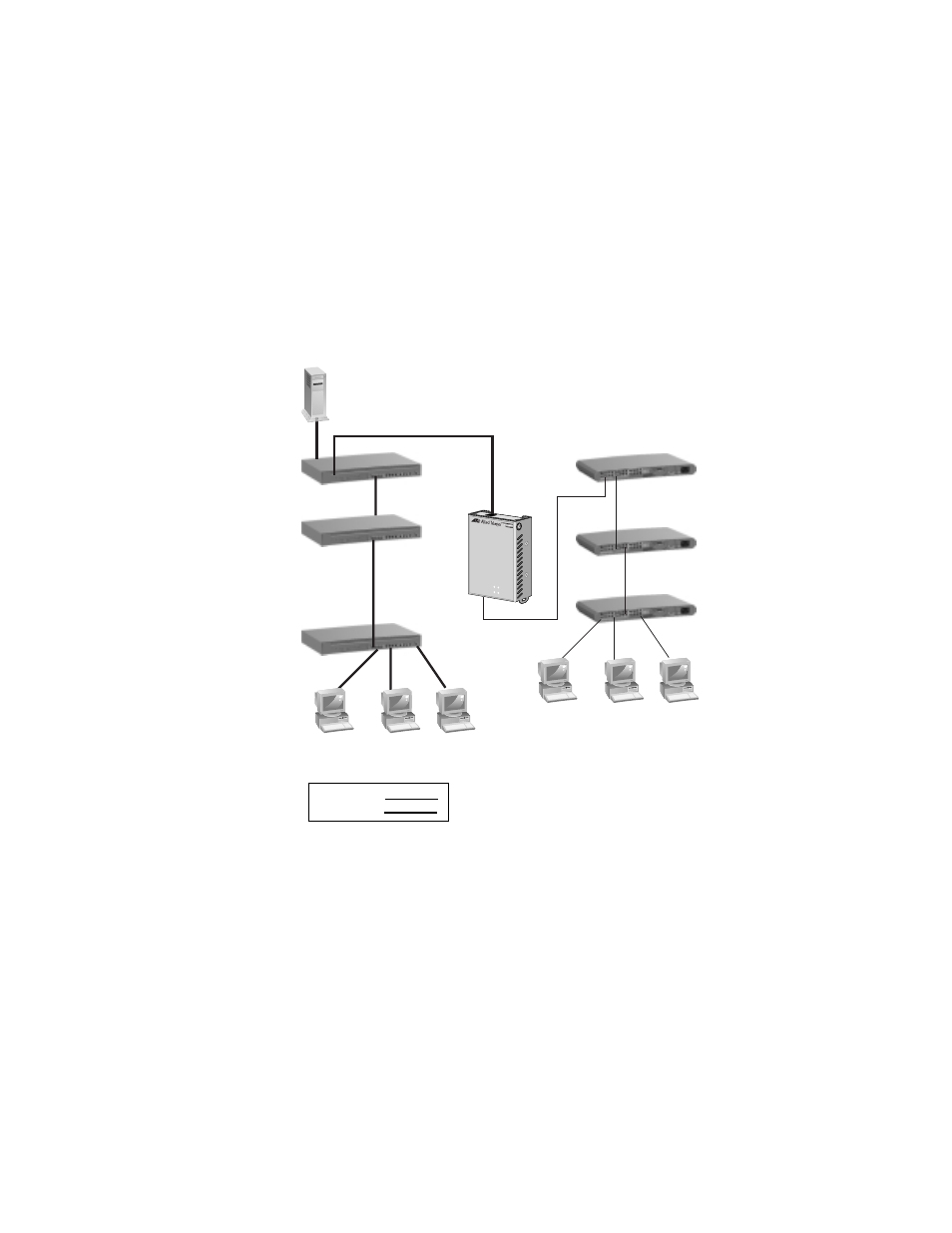

Figure 2 illustrates a topology using one AT-FS214 switch to interconnect two
small networks of stackable hubs. Network 1 has an AT-FH812u with an
AT-FH807u switching module connected to the 100Base-FX port on the
AT-FS214. Network 2 has an AT-3624TR hub connected to the 10/100Base-TX
port on the AT-FS214.
Figure 2 Network Topology
FX
TX
PWR
100M
LK/AT
Fast Ether
net Switch
AT-FS214
Twisted Pair
Fiber Optic
AT-FH812u
AT-FH812u
AT-FH812u
AT-FS214
AT-3624TR
AT-3624TR
AT-3624TR
Network 1
Network 2
with an
AT-FH807u
module
