8
Terminator Switch (AT-MC15 Only)
The Terminator switch on the AT-MC15 media converter offers 50
Ω
termination without the use of a T-connector and 50
Ω
barrel terminator. Only
end-point nodes need 50
Ω
termination. Internal nodes on a thinnet segment
should be connected to the cable through standard 10Base2 T-connectors. Refer
to Figure 3 for the location of the Terminator switch.

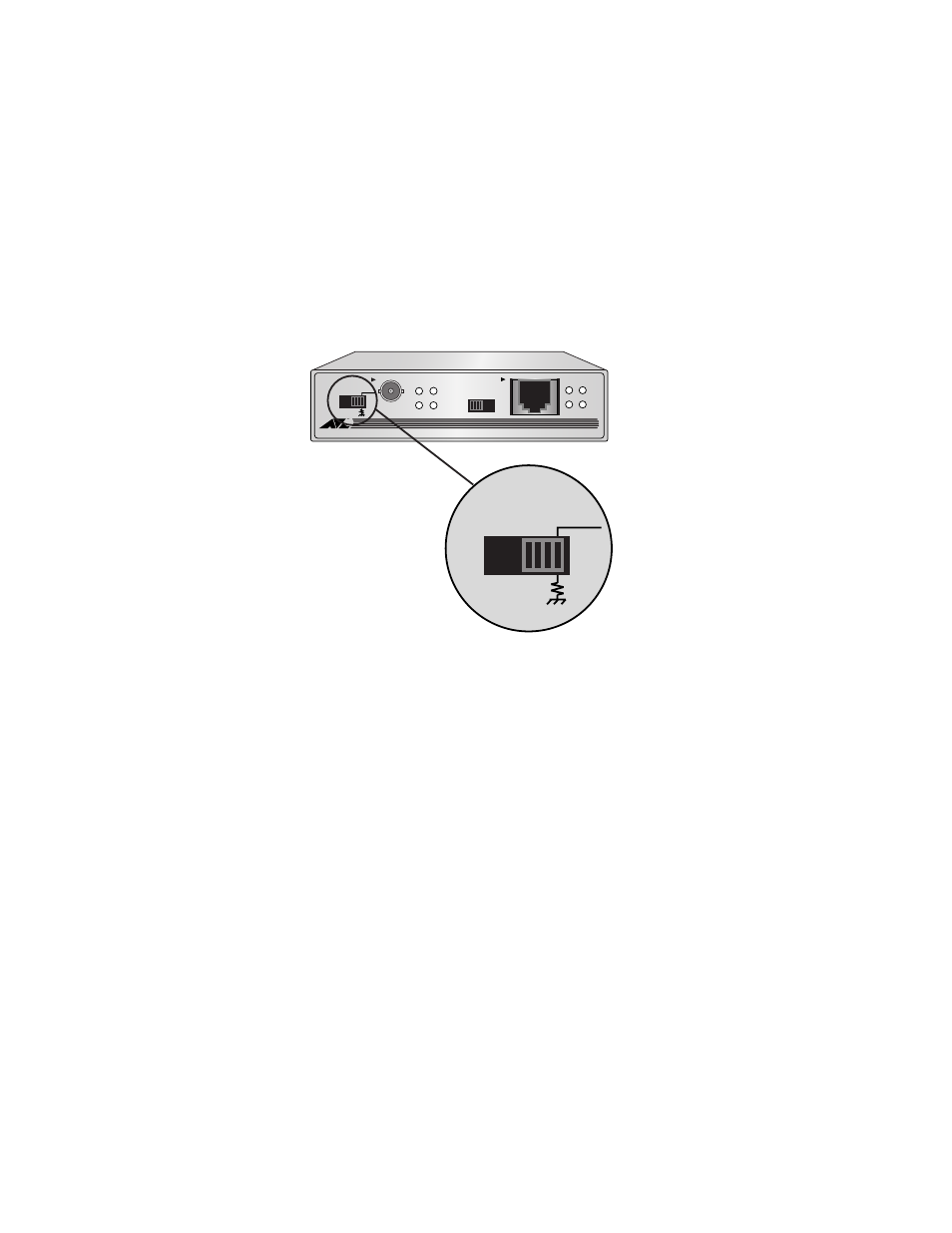

Figure 3 Terminator Switch
10Base2
MC15 ETHERNET MEDIA CONVERTER
MDI MDI-X
10Base-T
TX
RX
ONLINE
COL
RX
TX
PWR
LNK
TERMINATOR
O
F
F
O
N
TERMINATOR
O
F
F
O
N
