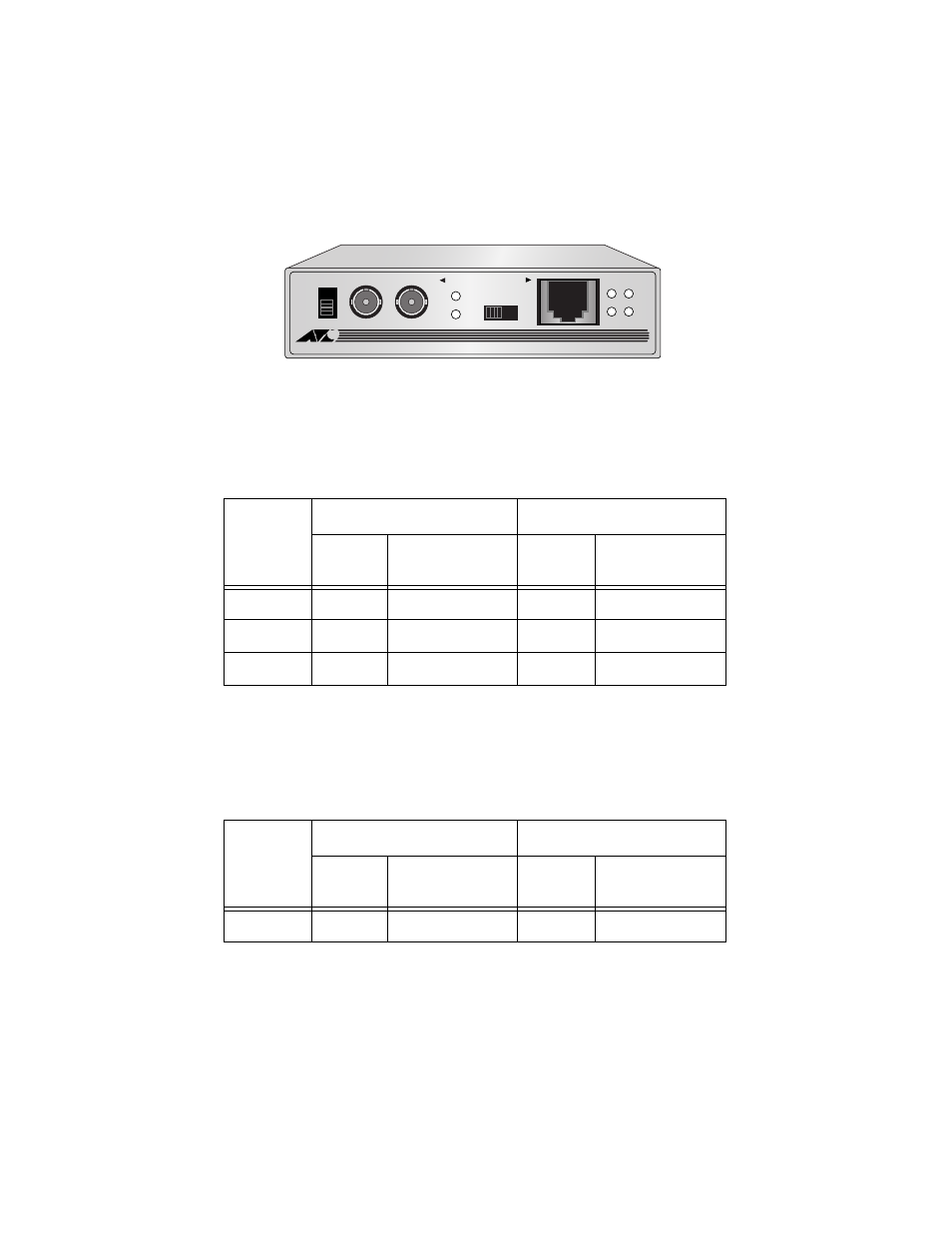

Figure 1 illustrates an AT-MC1x Series Media Converter.
Figure 1 AT-MC1x Series Media Converter (AT-MC13 model)
Table 1 lists the maximum operating distances for the AT-MC13, AT-MC14,
and the AT-MC16 media converters.
Table 1 Maximum Operating Distances
Table 2 lists the maximum operating distances for the AT-MC15 media
converter.
Table 2 Maximum Operating Distances
Model
10Base-F 10Base-T
Connector
Maximum Operating
Distance
1
1. Maximum operating distance may be less depending on the duplex mode of the end stations and the type of fiber
optic cabling used with the port.
Connector
Maximum Operating
Distance
AT-MC13 ST 2 km (1.2 mi) RJ-45 100 m (328 ft)
AT-MC14 SC 2 km (1.2 mi) RJ-45 100 m (328 ft)
AT-MC16 ST 15 km (9.3 mi) RJ-45 100 m (328 ft)
Model
10Base2 10Base-T
Connector
Maximum Operating
Distance
Connector
Maximum Operating
Distance
AT-MC15 BNC 185 m (606 ft) RJ-45 100 m (328 ft)
10Base-F
REC
LNK
TX RX
MC13 ETHERNET MEDIA CONVERTER
MDI MDI-X
10Base-T
REC
LNK
PWR
NML
FIBER
LINK TEST
