AT-MC104XL and AT-MC104LH Installation Guide
7
Configurations

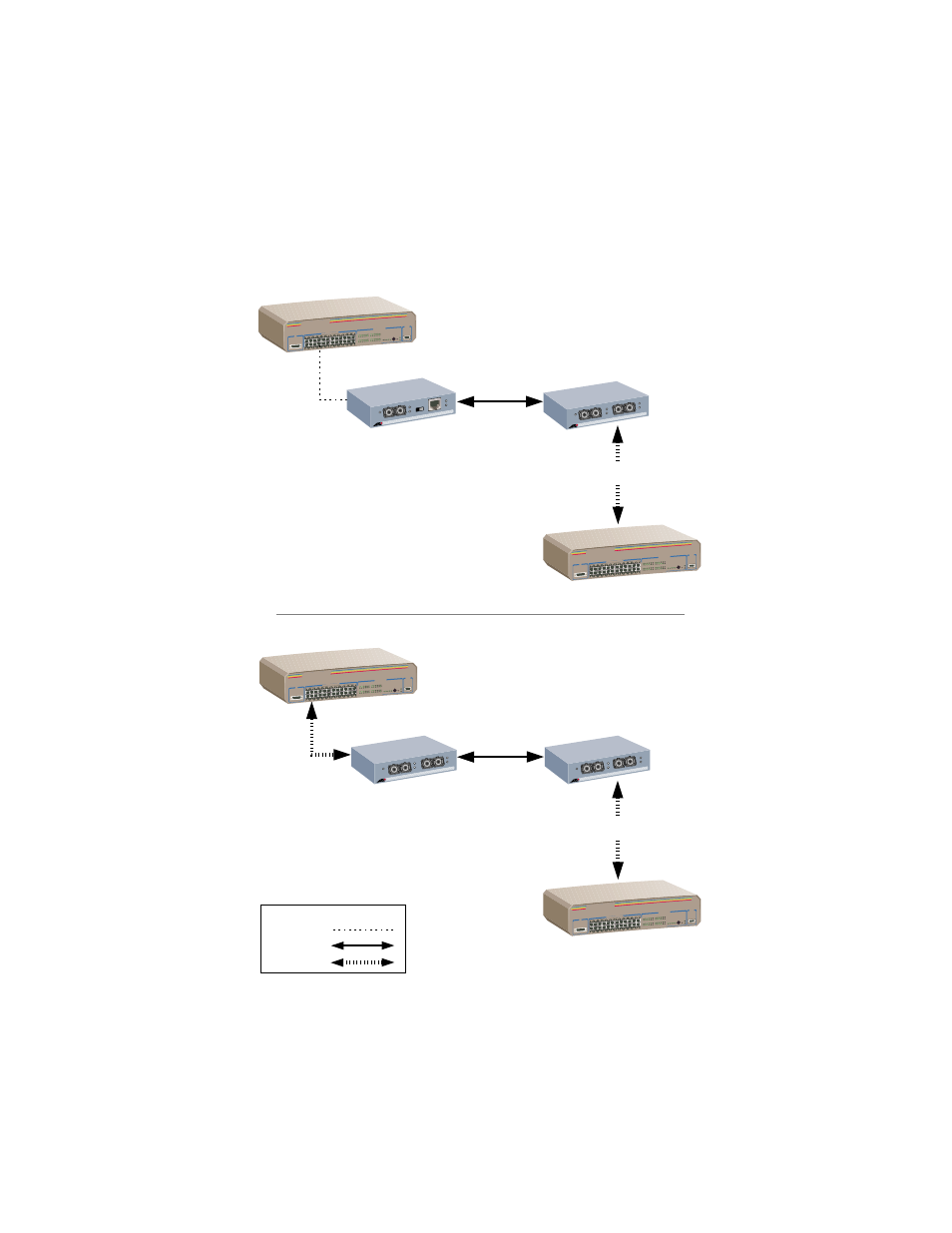

Figure 6 shows two typical network configurations of the AT-MC104XL Media
Converter.
Figure 6 Typical Configurations
Cable Legend
Twisted Pair
Single Mode Fiber
Multimode Fiber
AT-MC104XL AT-MC103XL
10/100Base-TX Switch
10/100Base-TX/FX Switch
15 Kilometers/
49,213 ft or 9.3 mi
2 Kilometers/
6,562 ft
100 meters
AT-MC104XL AT-MC104XL
10/100Base-TX/FX Switch
10/100Base-TX/FX Switch
15 Kilometers/
49,213 ft or 9.3 mi
2 Kilometers/
6,562 ft
2 Kilometers/
6,562 ft
