4
Package Contents
❑ AT-MC104XL or AT-MC104LH Media Converter
❑ Four Protective Feet (for standalone use only)
❑ External AC-DC power Adapter
❑ This Installation Guide
❑ Warranty Card
Contact your sales representative if any items are missing or damaged.
Installing the Media Converter as a Standalone
Warning
Do not stare into the laser beam when installing the media converters.
!
4
LIGHTNING DANGER: DO NOT WORK on equipment or CABLES
during periods of LIGHTNING ACTIVITY
!
5
DO NOT BLOCK AIR VENTS
!
6
The following steps are for a standalone installation. For information
concerning how to install a media converter in a rack-mount chassis, see “Rack-
mount Chassis Installation” on page 6
1. Remove all equipment from the package and store the packaging in a safe
place
2. Attach the four rubber feet to the base of the unit, placing one rubber foot
in each corner. For rack-mount installation, do not attach the four rubber
feet.
3. Plug the AC-DC power adapter into an appropriate AC power outlet and
inset the power plug into the DC receptacle located on the rear panel.

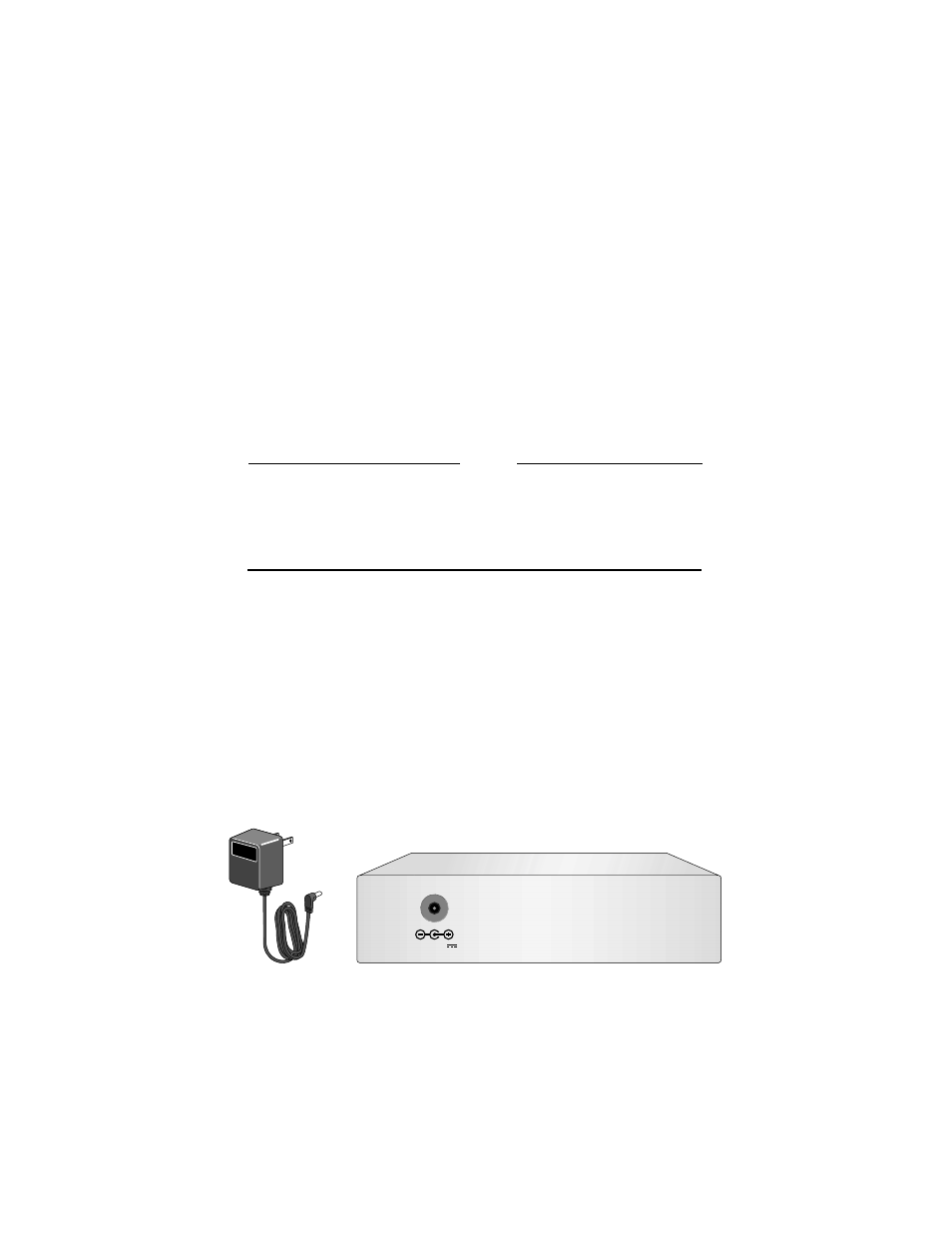

Figure 4 12V DC Connector on Rear Panel with External Power Adapter
12 V D C
