AT-8000 Series Fast Ethernet Switches Installation Guide
87

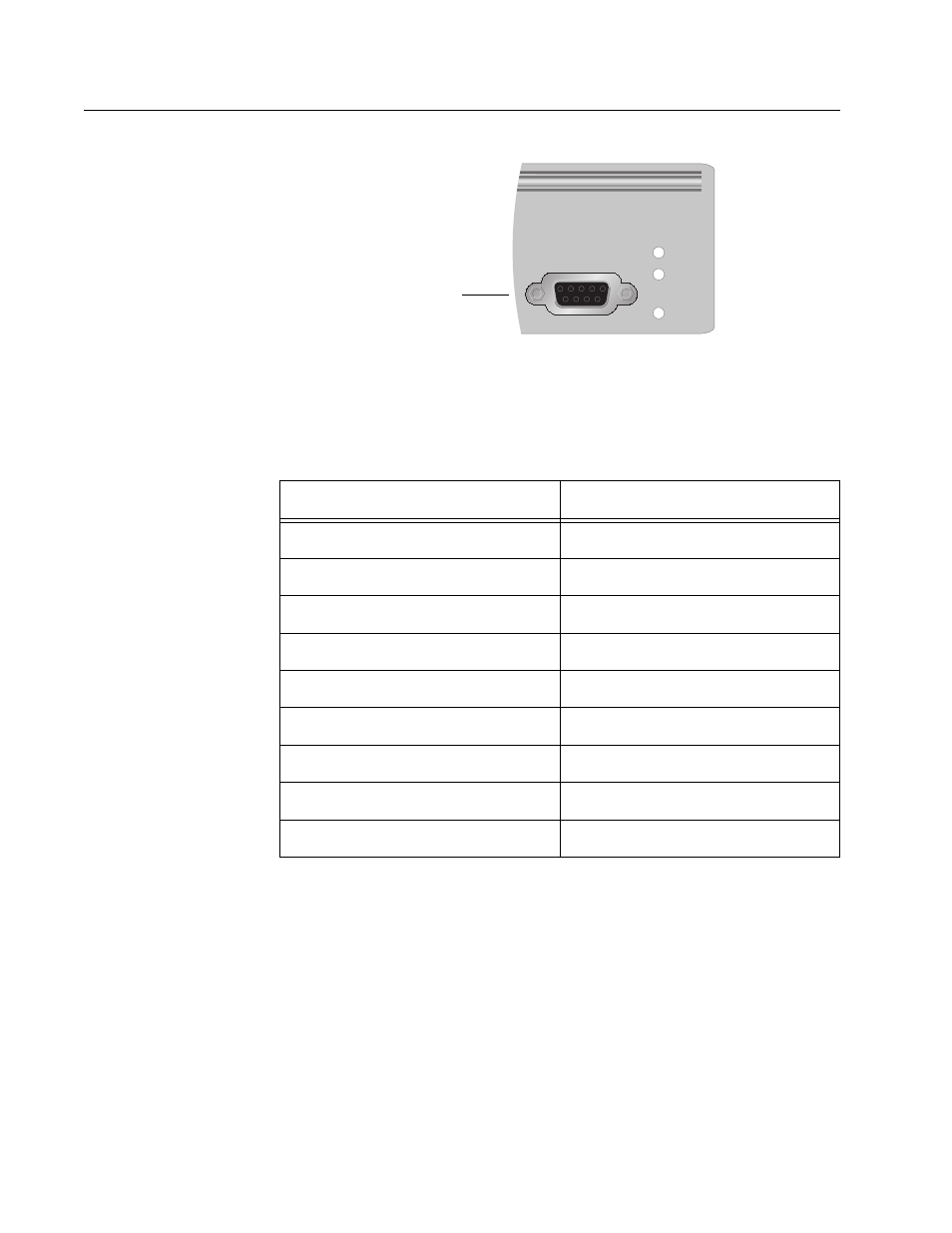

RS-232 Terminal Port Pinouts
Figure 41. Table 12 lists the pin signals on the RS-232 Terminal Port.
Table 12. RS-232 Terminal Port Pin Signals
Pin
Signal
1
Data Carrier Detect
2
Transmit Data
3
Receive Data
4
Data Set Ready
5
Ground
6
Data Terminal Ready
7
Clear to Send
8
Request to Send
9
Ring Indicator
K
FAULT
MASTER
RS-232 TERMINAL PORT
PWR
RS-232 Terminal Port
