Network Topologies
This section illustrates several of the network topologies you can create
with the AT-8000 Series Fast Ethernet Switches.
Power
Workgroup
Topology
The topology shown in Figure 14 is commonly referred to as a power
workgroup topology. Each workstation or end-node is connected
directly to a port on an AT-8024 Fast Ethernet Switch. Each end-node has
a dedicated data link to the switch for best performance and reliability.
The devices can operate at either 10 Mbps or 100 Mbps.

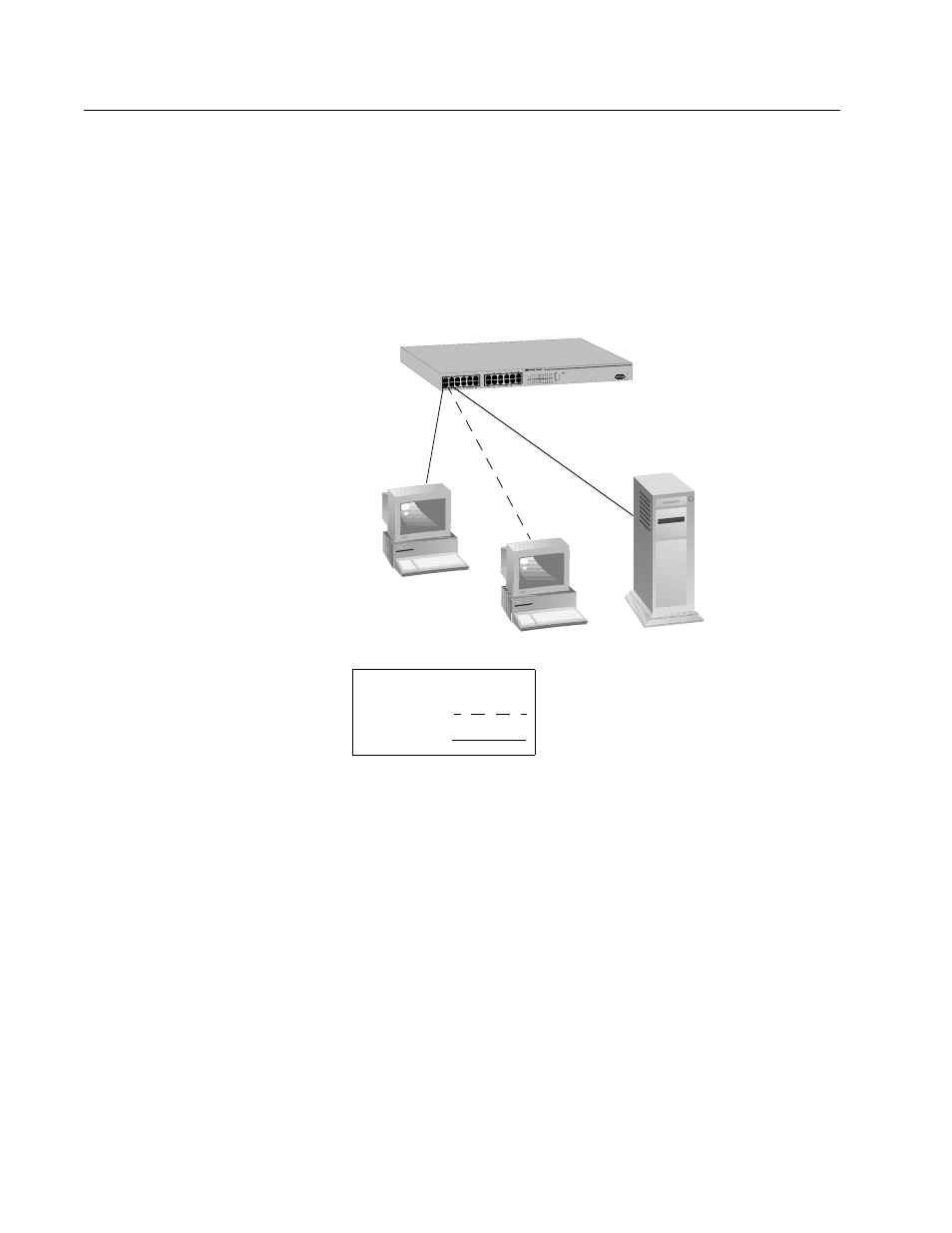

Figure 14. Power Workgroup Topology
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL
FAULT
MASTER
PWR
AT-8024
10Base-T / 100Base-TX
Fast Ethernet Switch
RS-232 TERMINAL PO
RT
Legend
10 Mbps
100 Mbps
AT-8024 Fast
Ethernet Switch
