Installation
56

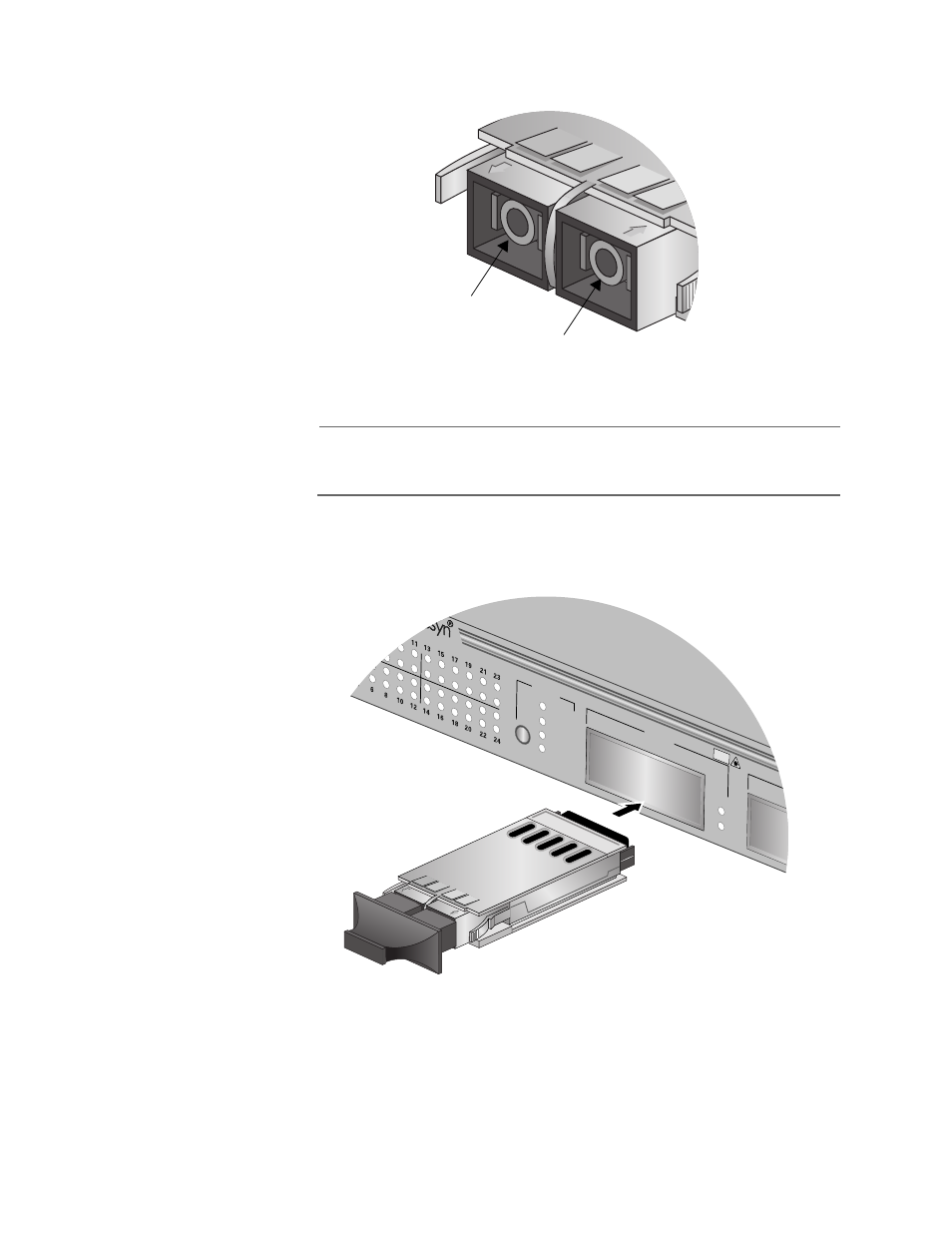

Figure 21. Optical Bore and Ferrule of GBIC Module
Note
Unnecessary removal and insertion of a GBIC can lead to premature
failure.
4. Slide the GBIC module into an expansion slot on the switch. The
GBIC module is completely seated in the slot when it clicks into
place.
Figure 22. Installing a GBIC Module
5. If you purchased two GBIC modules for the switch, repeat this
procedure to install the second module.
Ferrule
Bore
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL
LINK
MODE
POR
T A
10Base-
T / 100 Base- TX Fast Ethernet Swit
ch
CLASS 1 LASER PR ODUCT DO NO T ST ARE INT O BEAM
