AT-ARW256E Quick Installation Guide
1.2 Connecting to the ADSL Line
To connect the Wireless ADSL Router to the ADSL line carried out Chapter 1.2(a).
To connect the Wireless ADSL Router to the ADSL line and a Telephone set, carried out
Chapter 1.2(b).

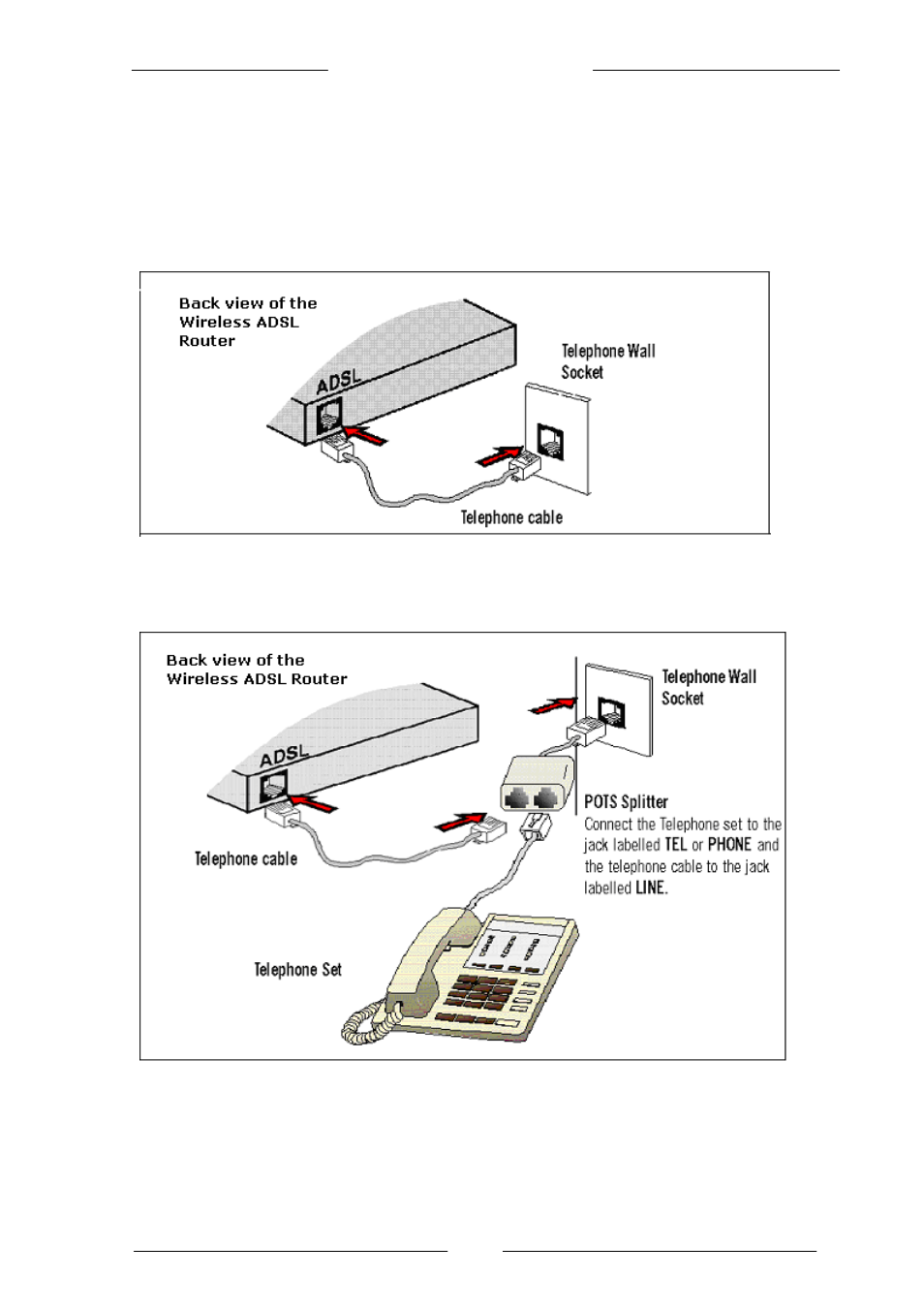

(a) To connect to the ADSL line
(b) To connect to the ADSL line and Telephone Set
The POTS Splitter (with built-in Microfilter) is a device that allows you to connect both your
Telephone cable and Telephone Set to the same Telephone Wall Socket. The device at the
same time helps to eliminate background noise on the telephone line, ensuring the best
possible phone performance. The POTS Splitter (Optional) is not provided in the package.
Page 7 of 32
