AT-ARW256E Quick Installation Guide
Wireless ADSL Router Overview

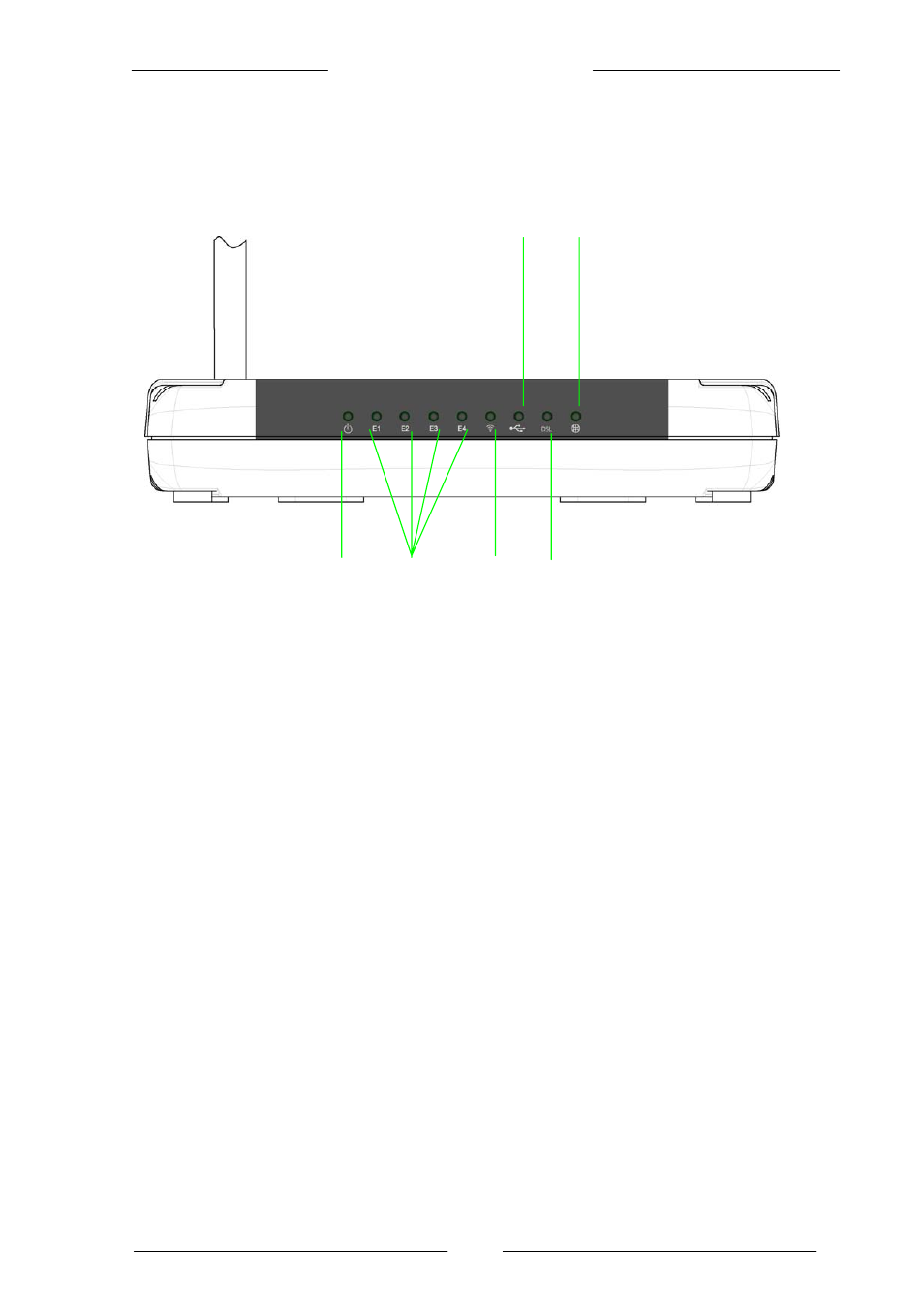

Front Indicators
4 6
1 2 3 5
1
POWER
Lights up when power is supplied to the Wireless ADSL Router.
2 ETHERNET (E1 ~ E4)
Lights up when the Ethernet cable is properly connected from your Wireless ADSL
Router to the Ethernet Card.
Flickers when the ADSL is transmitting/receiving data.
3
WIRELESS
Flickers when the Wireless LAN is operational.
4 USB
Lights up when the USB cable is properly connected from your Wireless ADSL Router to
the USB slot.
Lights Off when the USB cable is not connected or it is properly disconnected.
5
DSL
LED light off when no Telephone jack (RJ-11) is connected.
Flickers when the Wireless ADSL Router is trying to establish a connection with the
ADSL Service Provider (Training).
Steady Green Light when the ADSL connection is established.
6
Internet
Green LED Lights up when the PPP connection is established.
LED Light off when no PPP connection.
