Chapter 2: Installation
40
18. Slide the AT-iMG606BD Multiservice Gateway onto the
base, matching the grooves, until the fiber optic cable
snaps into place in the port and the gateway is aligned
with the base, as shown in Figure 21.

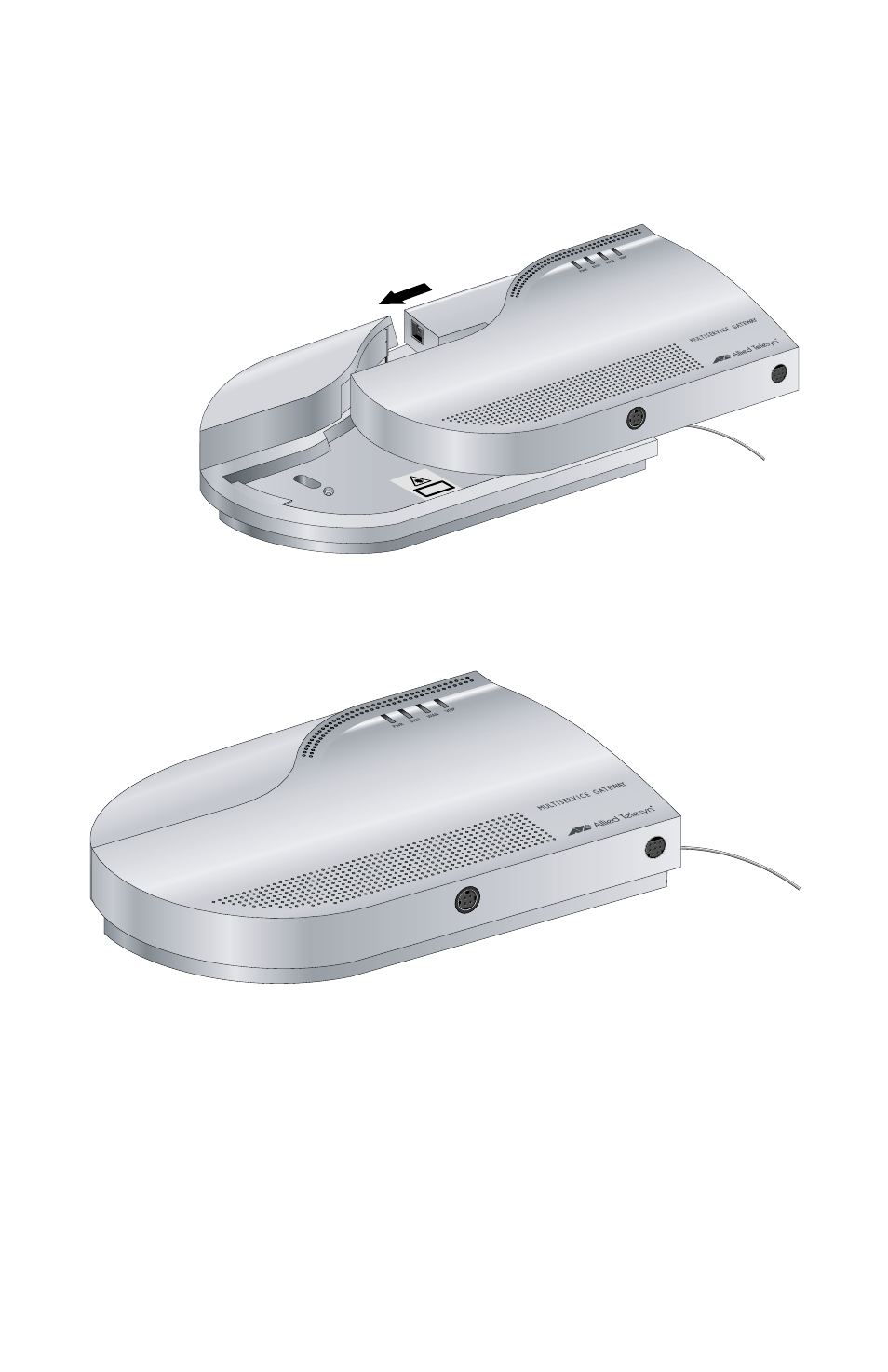

Figure 21. Mounting the Gateway on the Base
Figure 22 illustrates the completed assembly.
Figure 22. AT-iMG606BD Multiservice Gateway Installed on
the Base
