Allied Telesis AT-iMG606BD User Manual
Page 34
Chapter 2: Installation
34
3.
Select a wall location and mark three hole locations for
the anchors, as shown in Figure 8.
Make sure that you install the base so that the top edge
is level.

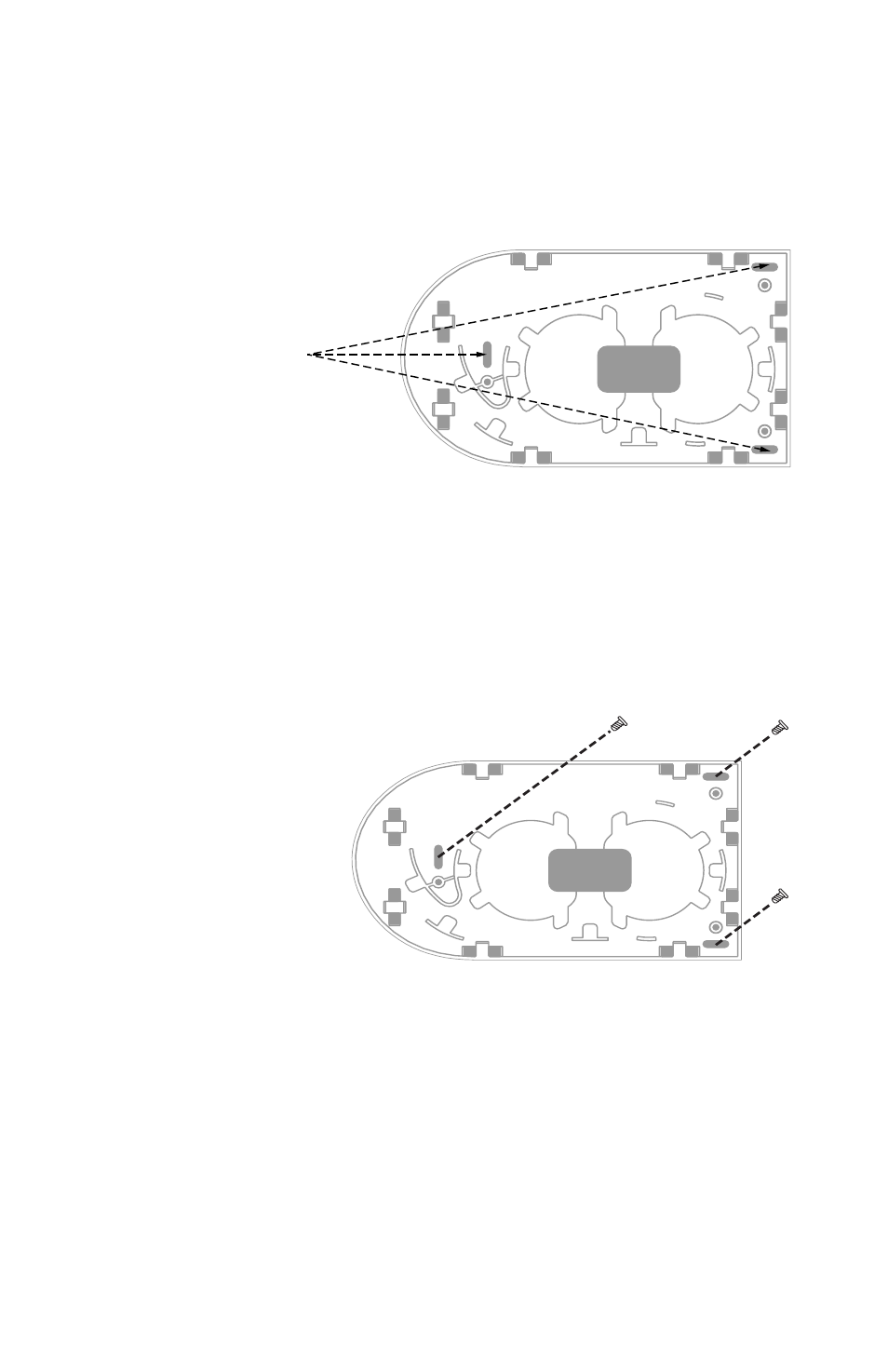

Figure 8. Location of Wall Anchor Holes
4.
Install the wall anchors.
5.
Attach the base to the wall by inserting three screws
(not provided) into the wall anchors, as shown in
Figure 9.
Figure 9. Mounting the Base to the Wall
384
Wall anchor holes
385
