10. Mount the cover over the base, aligning the screw
holes with the posts, as shown in Figure 14.

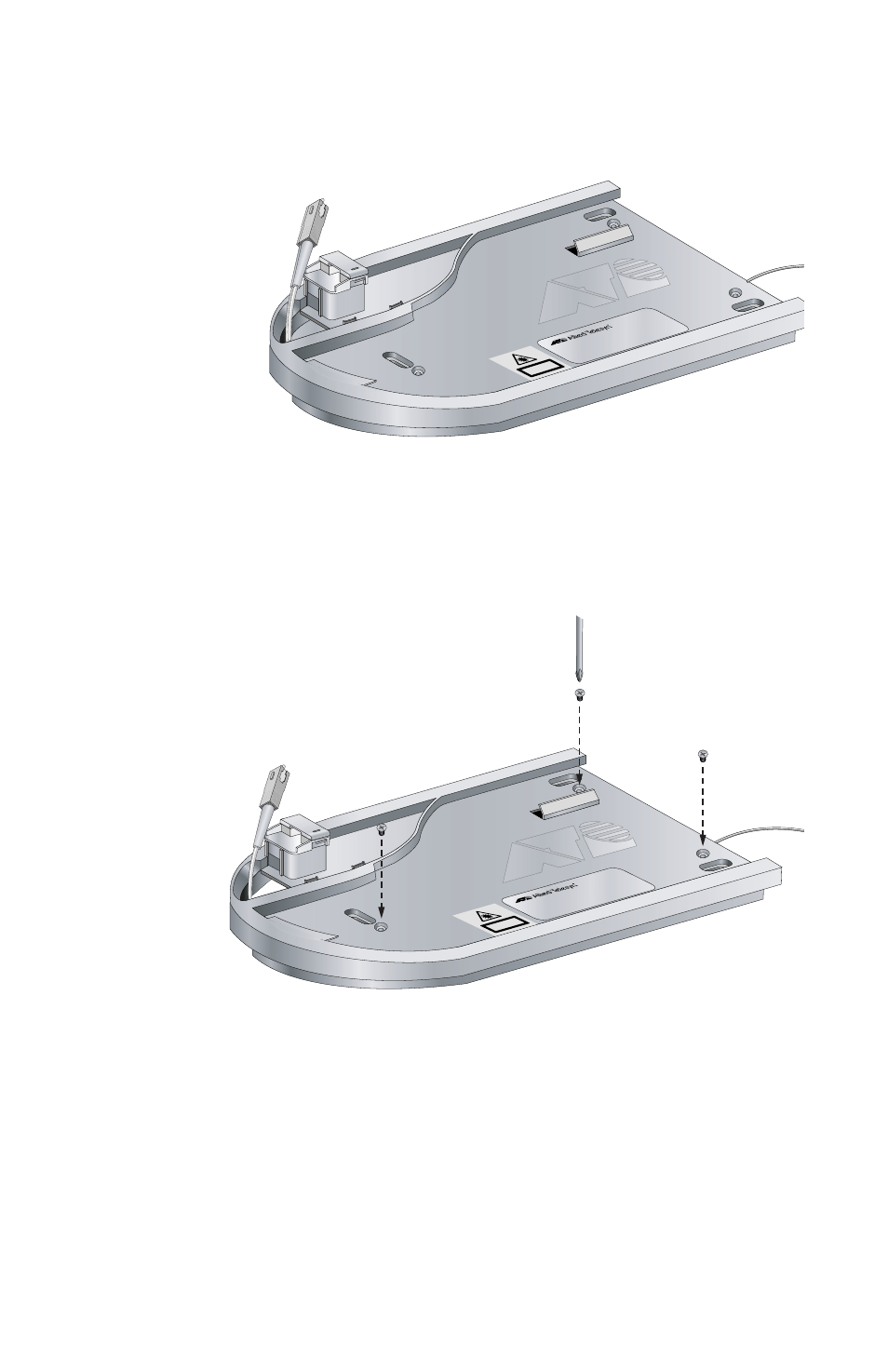

Figure 14. Aligning the Screw Holes with the Posts
11. Using a Phillips screwdriver, attach the cover to the
base with three of the screws provided in the kit, as
shown in Figure 15.
Figure 15. Attaching the Cover to the Base
