AT-iMG606BD Multiservice Gateway Installation Guide
39
15. If the fiber optic cable has a cap, remove it.
16. Align the connector shield with the slots and pin on the
cover and snap it down into place, as shown in
Figure 19.

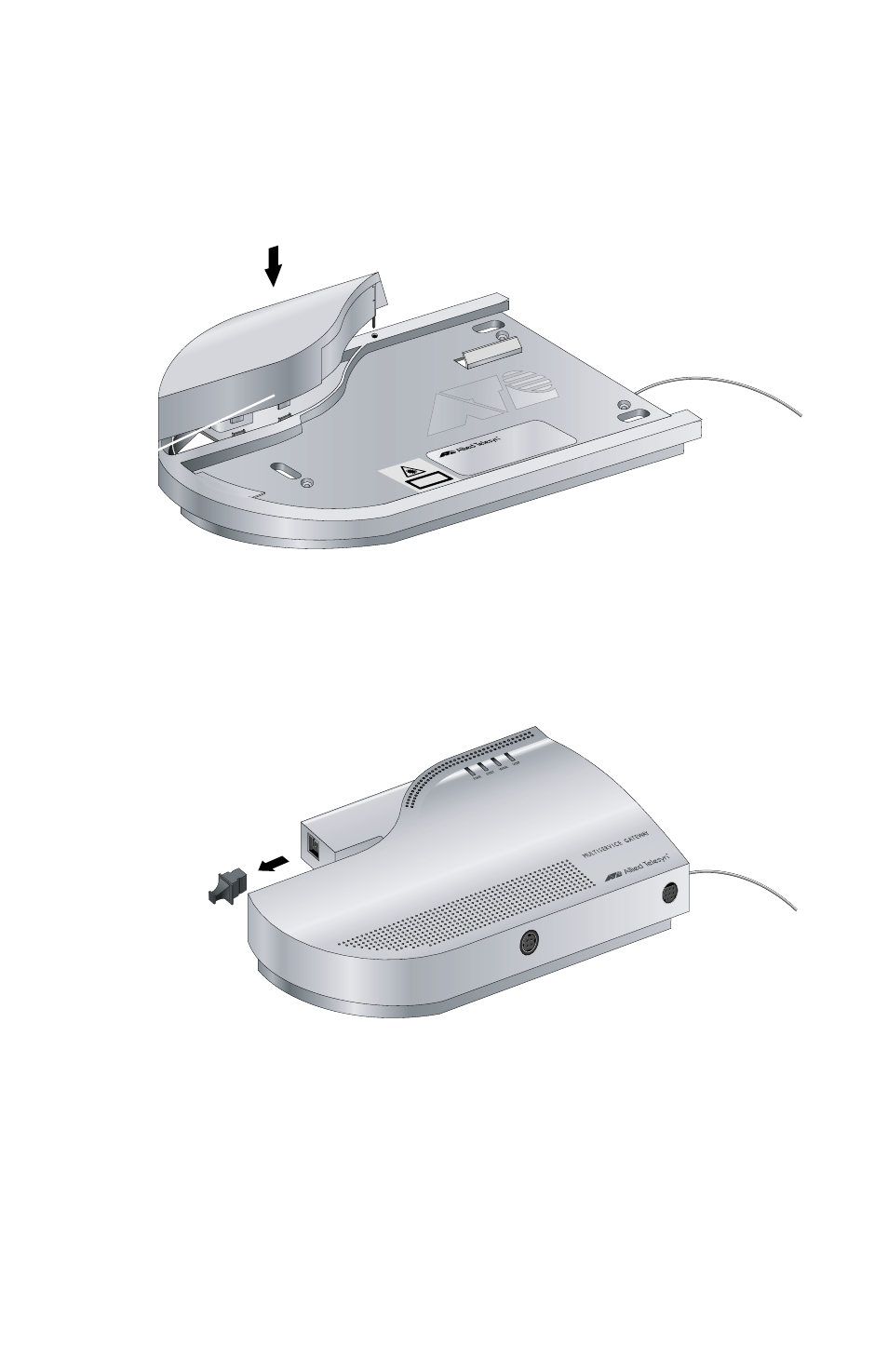

Figure 19. Installing the Connector Cover
17. Remove the plug from the fiber optic port on the
AT-iMG606BD Multiservice Gateway, as shown in
Figure 20.
Figure 20. Removing the Plug from the Fiber Optic Port
CLASS 1
LASER PRODUCT
395
396
POW
ER
CONSOLE
