Chapter 2: Installation

36

Installing the Switch in a Rack

To install the switch in a rack, perform the following procedure:

1. If attached, remove the rubber feet using a flat-head screwdriver.

2. Install a bracket on one side of the switch using a Phillips screwdriver

and three of the rack-mount screws included with the switch. Figure 9
shows how to mount the brackets on the switch.

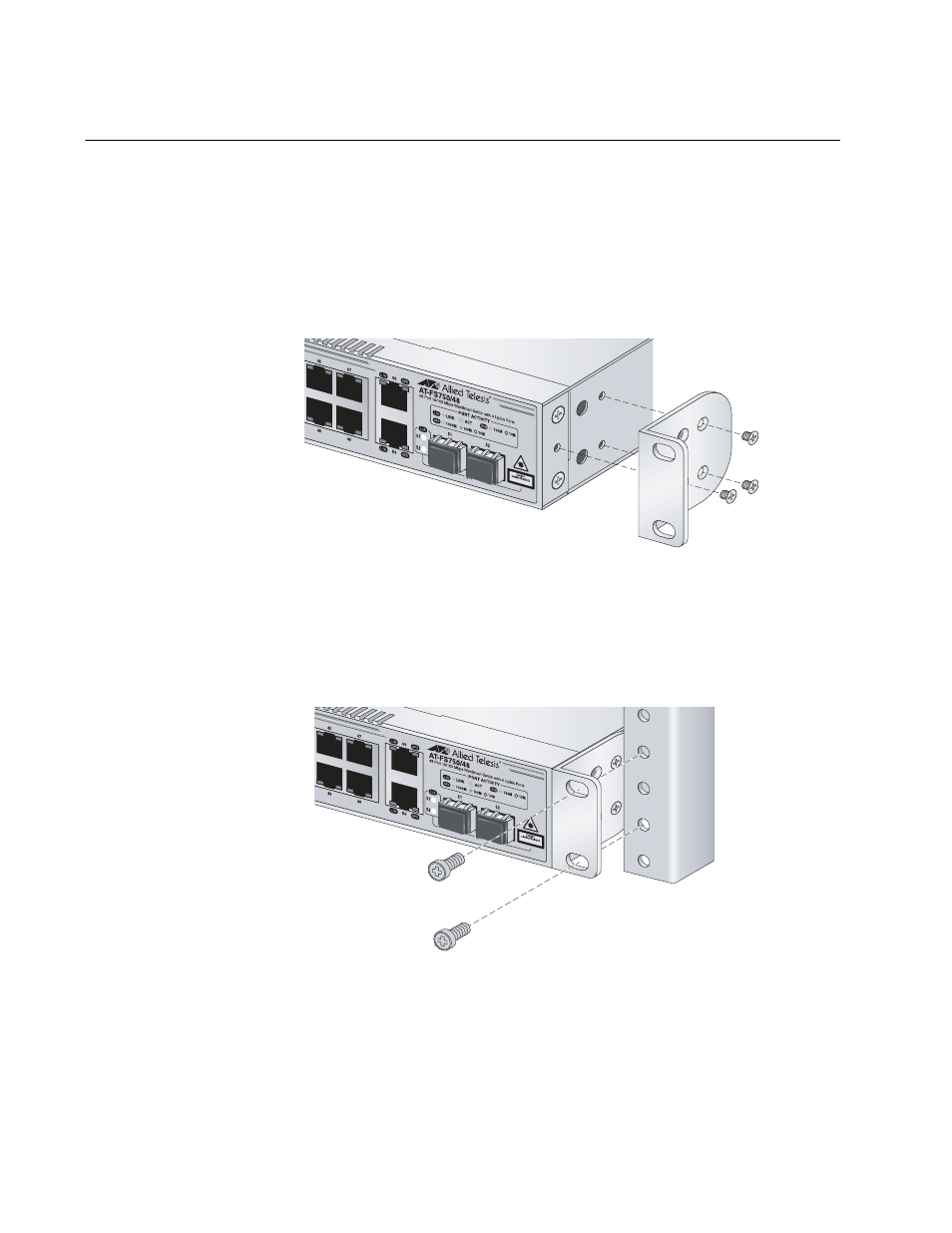

Figure 9. Attaching the Rack-Mount Bracket

3. Repeat step 2 to attach the remaining bracket to the other side of the

switch.

4. Mount the switch on a 19-inch rack, as shown in Figure 10.

Figure 10. Mounting the Switch on the Rack
