Chapter 1: Overview
26
Network Topologies
This section illustrates two network topologies that you can create with the
AT-FS750/48 Fast Ethernet Smart switch: a power workgroup and
collapsed backbone. Both types of topologies are described below.
Power
Workgroup
Topology
The topology shown in Figure 6 is commonly referred to as a power
workgroup topology. Each workstation or end node is connected directly to
a port on the switch. Each end node has a dedicated data link to the
switch for best performance and reliability. The devices can operate at 10
Mbps or 100 Mbps.

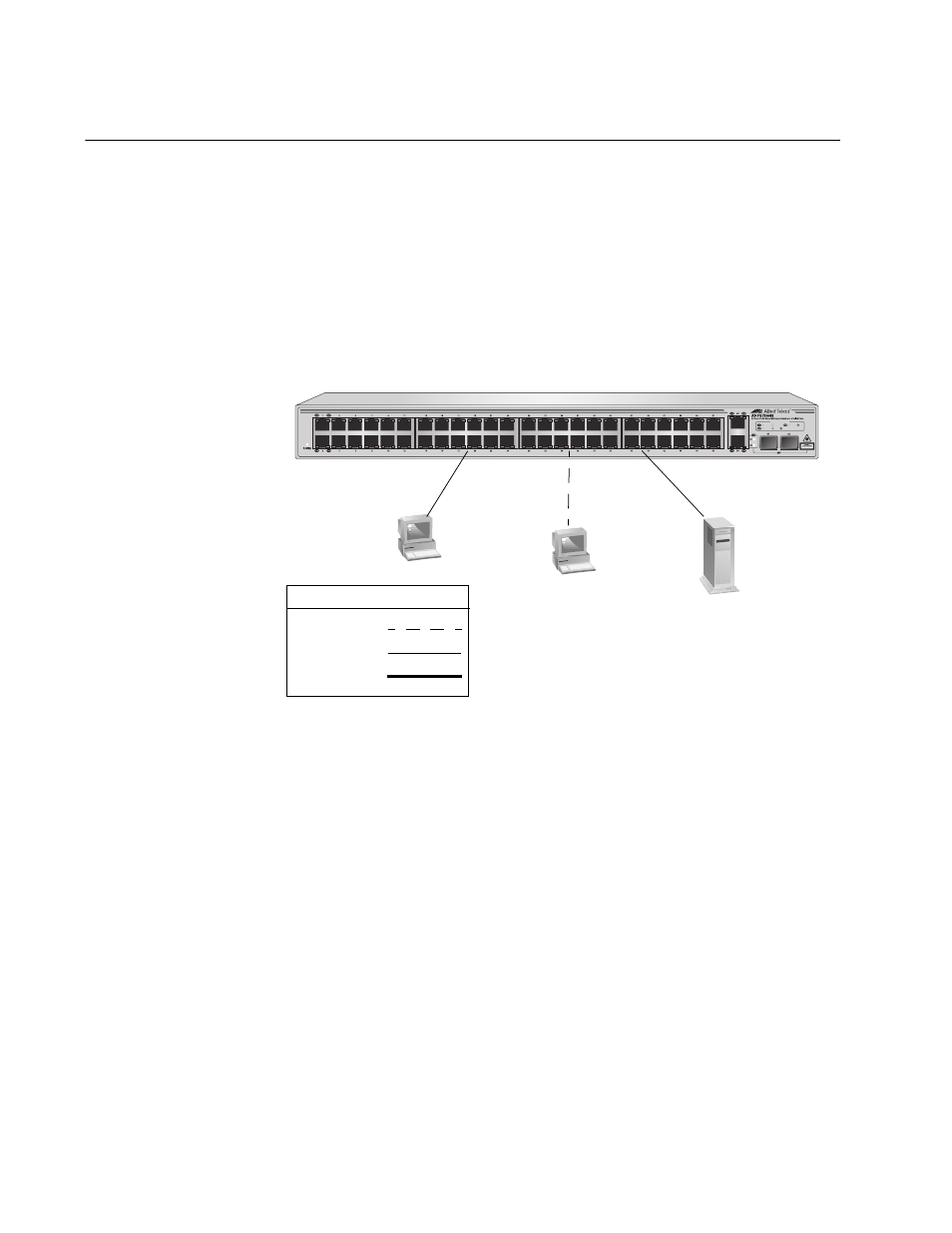

Figure 6. Power Workgroup Topology
Legend
100 Mbps
1000 Mbps
10 Mbps
1025
LINK 1000M ACT 10M 100M
PORT ACTIVITY 100M 10M
