Powering On an AT-CV1000 Chassis
The AC power adapter for the AT-CV1000 chassis consists of two parts: a
power cord and a power adapter.
Note
The power adapter for the AT-CV1000 chassis is not used if the
chassis is installed in an AT-MCR12 rack-mount chassis.
Note
Use only power sources that are UL Listed (QQGQ or EPBU), TUV
Licensed or other Safety Agencies approved, and that are suitable
for country of use.
To power on an AT-CV1000 chassis, perform the following procedure:
1. Plug one end of the power cord into the socket on the power adapter,
plug the other end of the power cord into a power outlet, and plug the
pigtail cable on the power adapter into the power connector labeled
12VDC on the back of the converter, as shown in Figure 20.

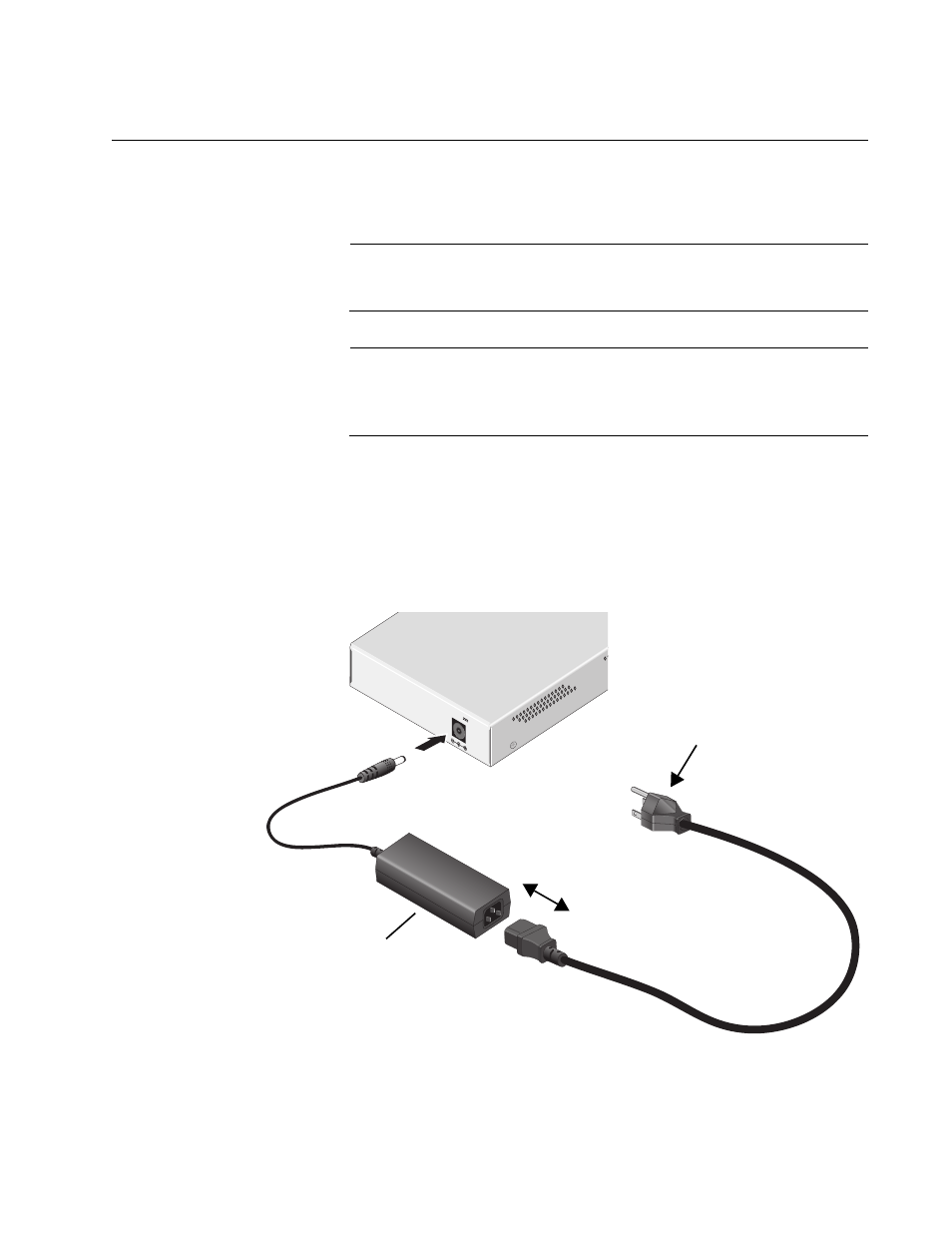

Figure 20. Connecting the Power Adapter and Power Cord
12VDC
517
Plug into Wall Outlet
Plug Together
Plug In
Power Adapter
