AT-CV1000 One-Slot Chassis Installation Guide

25

Using the AT-CV1000 Chassis on a Desktop

To use the AT-CV1000 chassis on a desktop, perform the following
procedure:

1. Remove the chassis from the shipping container.

2. Turn the chassis over and place it on a secure surface.

3. Attach the four self-adhesive rubber feet, included, to the bottom of the

chassis, as shown in Figure 7.

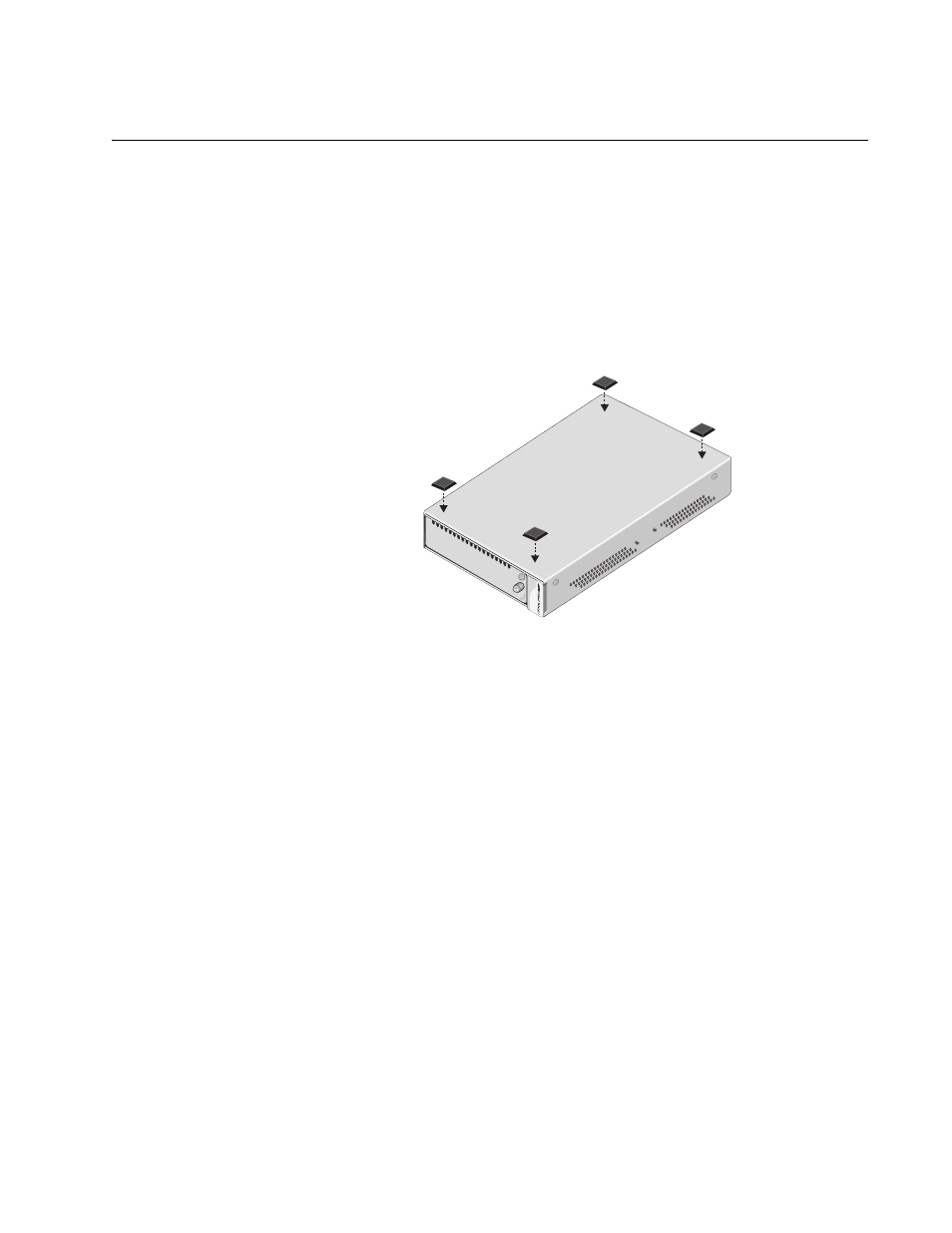

Figure 7. Attaching Rubber Feet

4. Turn the chassis over again.

5. Install the line card according to the instructions in “Installing a

Converteon™ Line Card” on page 32.

6. Place the chassis in its intended location.

7. Cable the line card according to the instructions that were shipped with

the line card.

8. Power on the chassis according to the instructions in “Powering On an

AT-CV1000 Chassis” on page 35.
