Chapter 3: Installation
26
Mounting the AT-CV1000 Chassis on a Wall
The AT-CV1000 chassis is shipped with two wall-mounting brackets. The
chassis is designed to be mounted vertically on a wall using the keyholes
on the wall-mounted brackets.
To mount the AT-CV1000 chassis on a wall, perform the following
procedure:
1. If attached, remove the rubber feet, data cables, and power cord from
the chassis.
2. Install the line card according to the instructions in “Installing a
Converteon™ Line Card” on page 32.
3. Install the provided wall-mount brackets onto the chassis, as illustrated
in Figure 8.

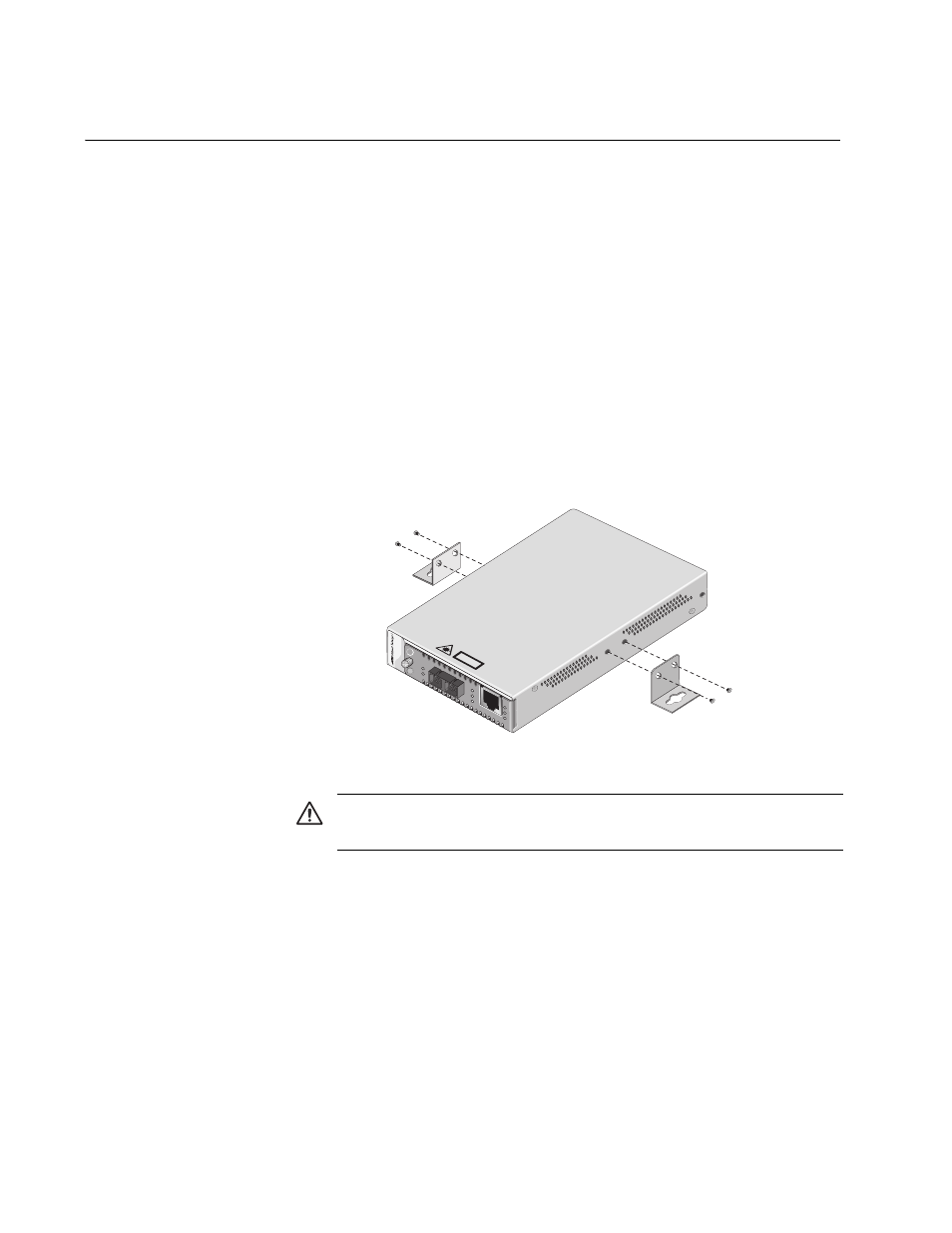

Figure 8. Installing the Wall-Mount Brackets on the Chassis
4. Select a wall location for the device.
5. Place the chassis against the wall and mark the locations for the wall
anchors.
A T-CM202
LK A
T
S F P
LK A
T FD
A T -CV100
0
SML ML O
A M
T X
R D Y
263
CLA SS 1
LA SER PR OD UC T
Caution: The attached mounting brackets must be used to
securely mount the device on the wall.
