AT-MCR12 Media Conversion Rack-Mount Chassis Installation Guide
37

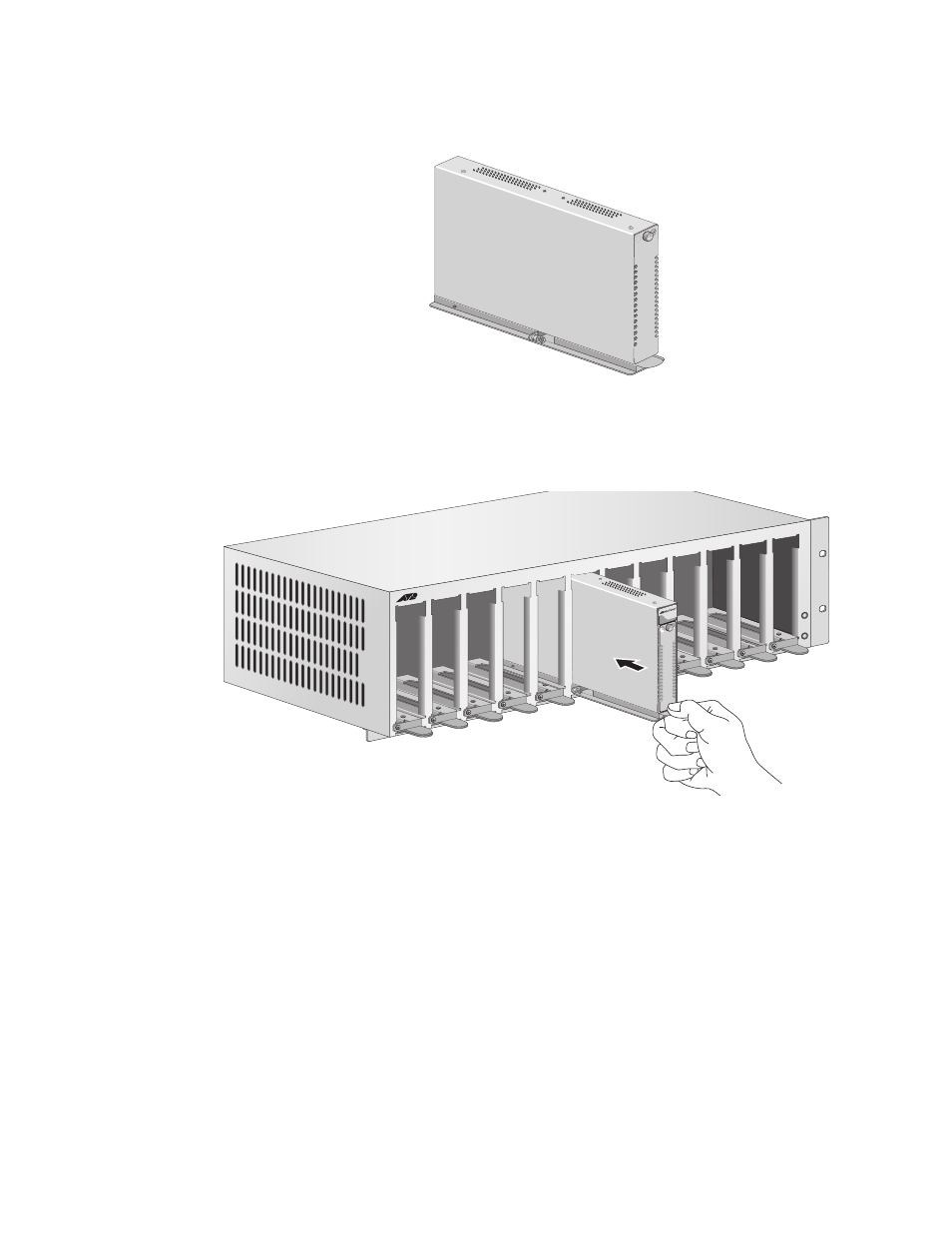

4. Turn the chassis over, as shown Figure 13.
Figure 13. AT-CV1000 Chassis with AT-CVMCR Adapter Installed
5. Use the thumb tab on the adapter to slide the AT-CV1000 chassis into
the AT-MCR12 chassis, as shown in Figure 14.
Figure 14. Sliding the AT-CV1000 into the AT-MCR12 Chassis Slot
6. Press gently on the AT-CV1000 chassis to seat the chassis into the
backplane.
RDY 1266
1252
MEDIA CONVERTER RACKMOUNT CHASSIS
T
X
RDY
LK AT FD
SML ML OAM
AT -CM 202
LK AT
F
X
MCR12
MEDIA CO
NVERTER
RACK MOUNT CHAA
SIS
PWR A
PWR B
T
X
RDY
LK AT FD
SML ML OAM
AT-C V100 0
