Page 32
Chapter 2: Installation
32
Installing a Media Converter in the Chassis
To install a media converter in the AT-MCR12 chassis, perform the
following procedure.
1. Select the slot where you want to install the media converter.
2. Loosen the captive screw that secures the mounting rail in the
AT-MCR12 chassis, and remove the mounting rail by sliding it out, as
shown in Figure 6.

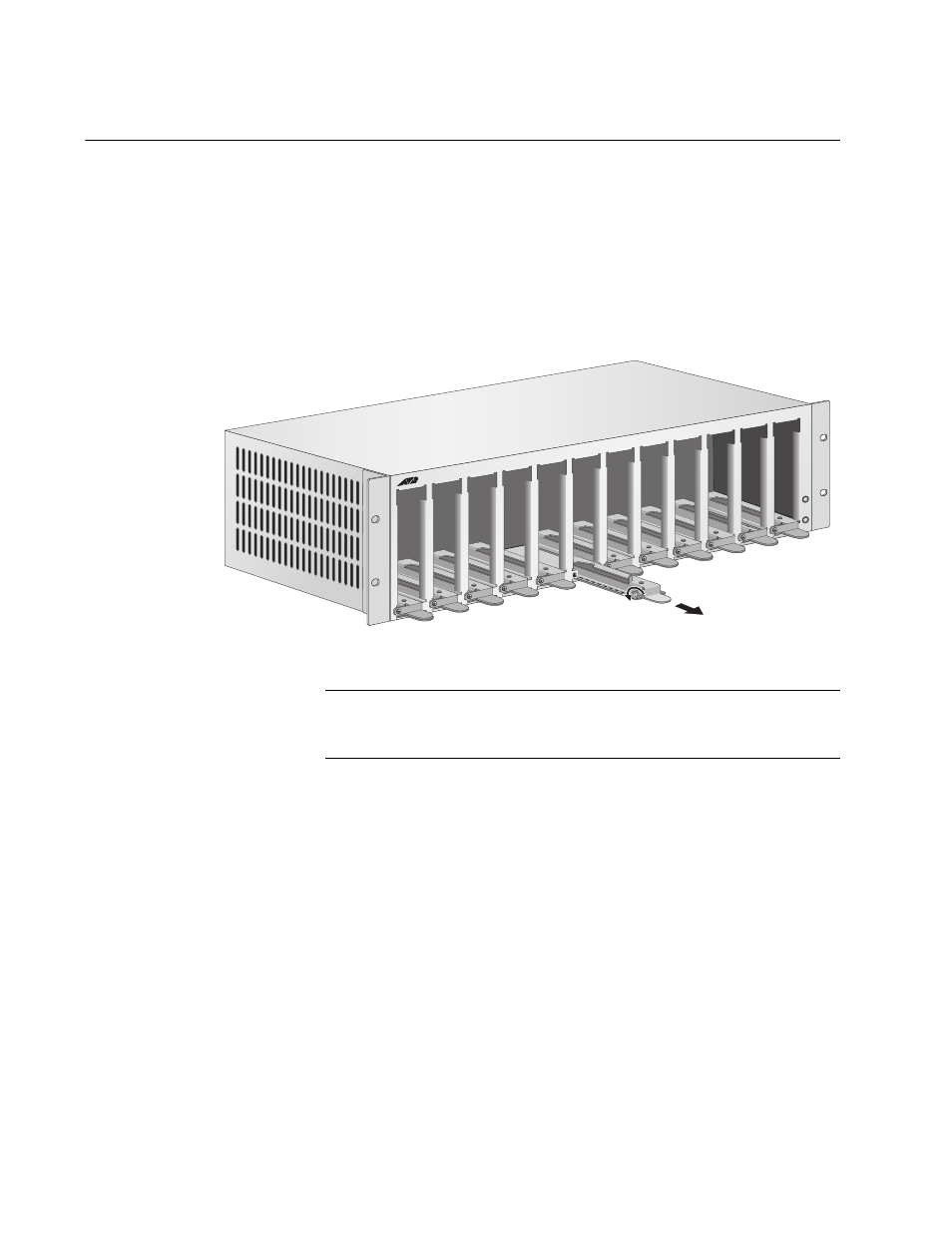

Figure 6. Removing the Mounting Rail
Note
Leave the mounting rails in the slots until you are ready to install a
media converter.
1251
MEDIA CONVERTER RACKMOUNT CHASSIS
MCR12
MEDIA CONVER
TER RA
CKMOUNT CHAASIS
PWR A
PWR B
