AT-MCR12 Media Conversion Rack-Mount Chassis Installation Guide
31
3. Secure the ground lug with the two M5 lock nuts provided, as
illustrated in Figure 5.

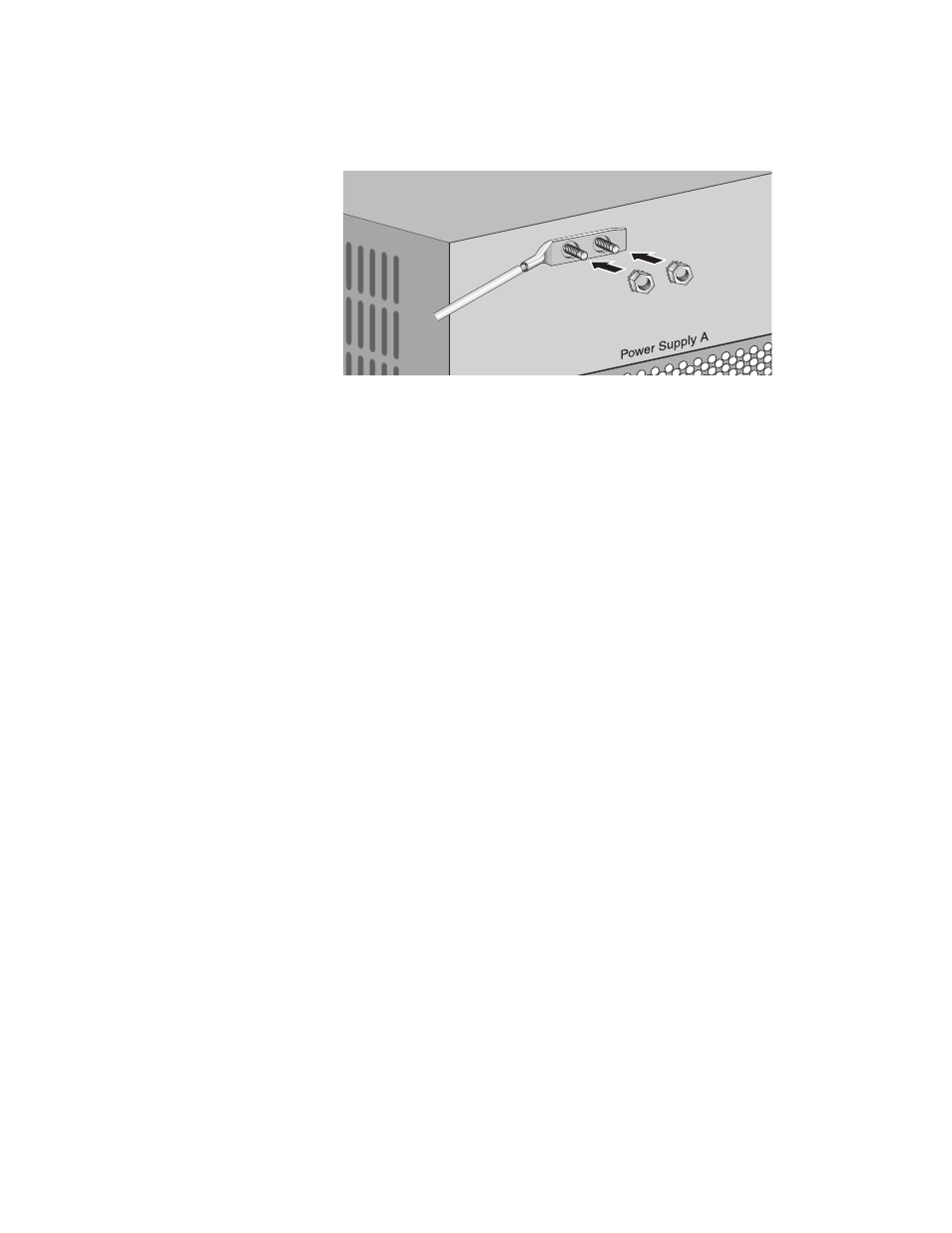

Figure 5. Securing the Ground Lug with Two M5 Lock Nuts
4. Attach the other end of the ground wire to an appropriate ground
(earth) rod of the building.
5. Go to “Powering on an AC-Powered Chassis” on page 39 to complete
the installation.
