Allied Telesis Telesyn AlliedView NMS System 9.0 - Manual (Page 38)

Starting the Client HTML Client
AlliedView NMS Installation Guide (Starting Up AlliedView NMS 9.0) 5-6

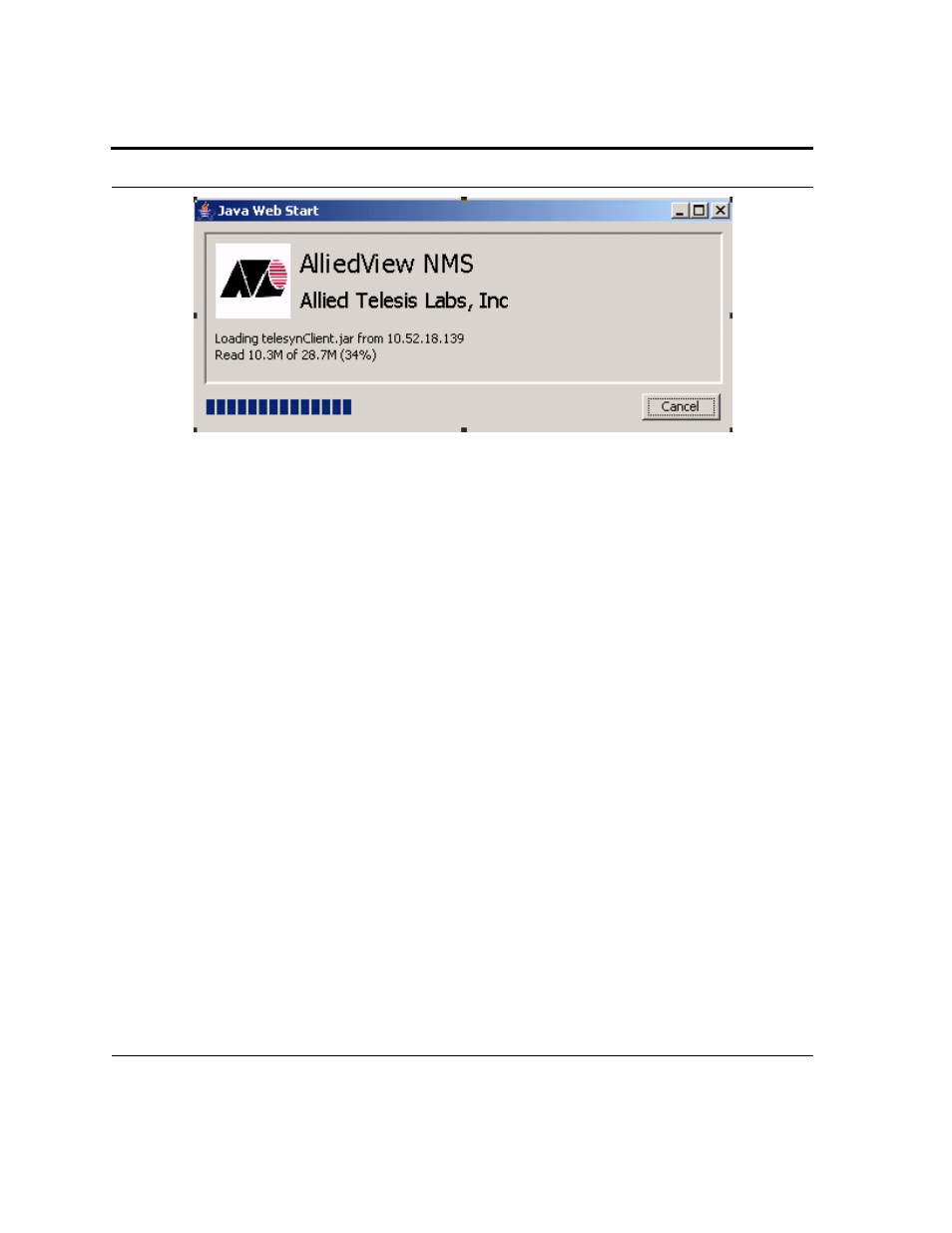

FIGURE 5-4 Java Web Start Download
2. If Java Web Start is not installed, you will be given the option of installing it from the Sun Web site. You can
also install it from the AlliedView NMS Login screen (refer to
Figure 5-3 ) by clicking on Download Java.
Note: Installing from the AlliedView NMS Login screen (refer to Figure 5-3 ) is preferred since it will
always contain the correct version of the jre software.
For Solaris, click the Sun Microsystem’s Binary Code Agreement link and read the license agreement.
3. When the AlliedView NMS Authentication window appears, enter root as the username and public as the
password, and then click Connect. The AlliedView NMS Application screen will appear, with the IP Topol-
ogy screen. Refer to the NMS Administration Guide and the NMS User Guide for more information.
Note: It is highly recommended that you change your password immediately upon first logging in.
The root username and public password are defaults for the AlliedView NMS. Leaving the
default password may make your NMS vulnerable to unauthorized access. Refer to the
AlliedView NMS Administration Guide for information on changing the password.
4. Verify that the client can log in and that the AlliedView NMS starts up and displays properly on the client
machine.
5. If you wish to exit the AlliedView NMS, from the panel-specific menu, select File -> Exit.
5.3.4 HTML Client
For starting the AlliedView NMS Client for simple network monitoring over a slow dialup link, it is recom-
mended that you use the HTML client. To start the AlliedView NMS HTML Client, follow these steps:
1. In your Web browser, enter the following address:
http://:9090
where server ip address is the IP address of the AlliedView NMS Server. The AlliedView NMS logon screen
shown in
Figure 5-3 will appear.
