Installation
29
Wall-Mounting
the Provider
Unit
The Provider unit can be mounted onto a wall using the keyholes on the
bottom of the unit. The screws and plastic anchors used for mounting the
unit are provided.
To wall-mount the Provider Unit, perform the following procedure:
1. If attached, remove the protective feet, data cables, and power cord from
the unit.
2. Select a wall location for the device.
3. Install the screws and plastic anchors onto the wall, as shown in Figure
7.

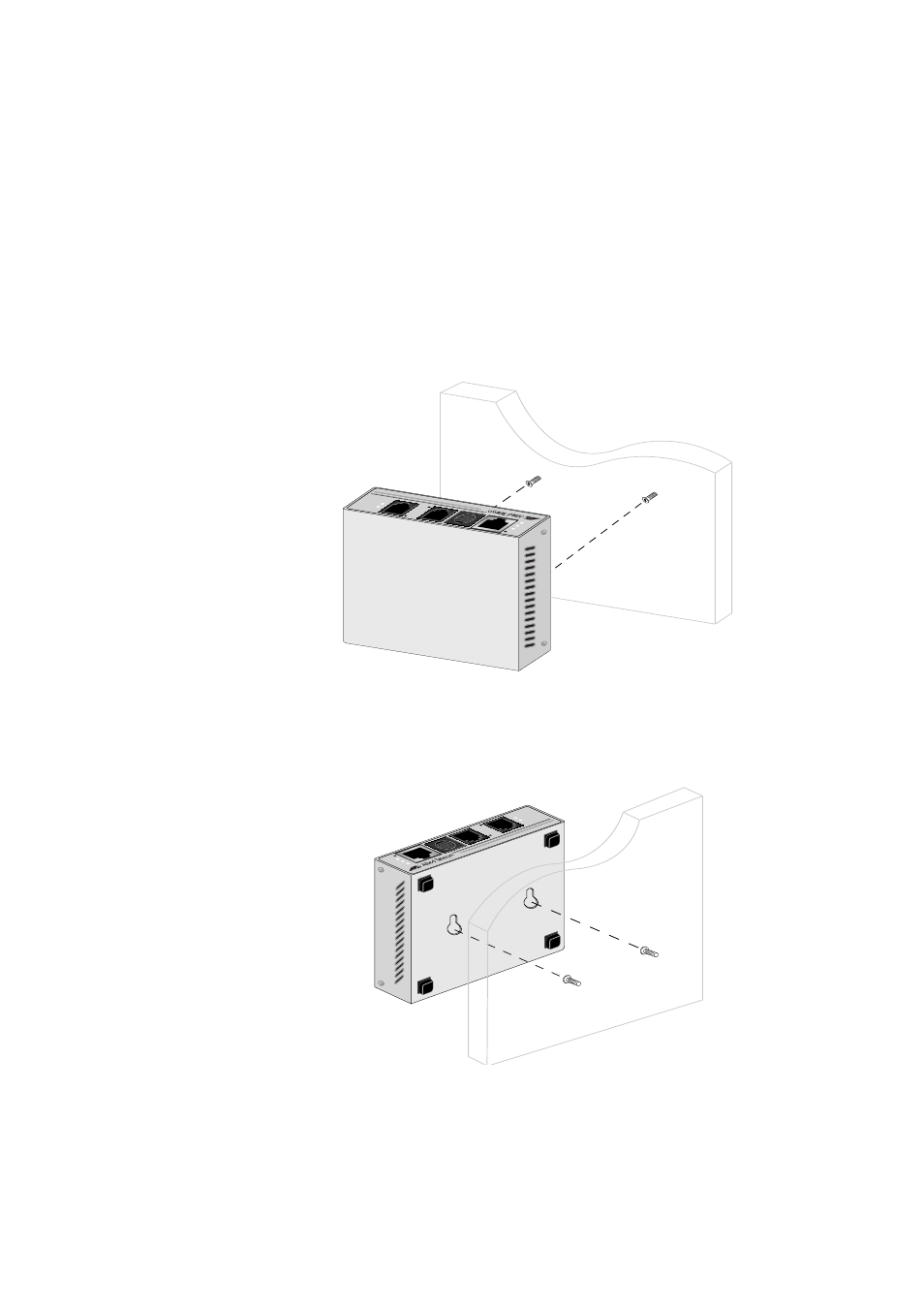

Figure 14 Installing the Screws and Plastic Anchors Onto The Wall
4. Position the switch onto the wall screws so that the ports are facing the
ceiling, as shown in Figure 8.
Figure 15 Positioning The Switch Onto The Wall Screws
LINE
10Base T/ 100Base TX
PSTN
LINK ACT PWR
ERR LINK
MGMT A T-MC602 VDSL EXTENDED ETHERNET
LINE
10Base T/
100Base
TX
PSTN
LINK ACT PWR
ERR LINK
MGMT
AT-MC602
VDSL EXTENDED ETHERNET
