AT-MC601, AT-MC602 Installation and User’s Guide
14
Auto-Negotiation.The network extenders Auto-Negotiate the speed
and duplex mode of the Ethernet link, so that the link comes up in the
highest performance configuration supported by both ends.
Half- and Full-duplex Mode.Duplex mode refers to the way an end-
node sends and receives data on the network. An end-node can operate in
either half- or full-duplex mode, depending on its capabilities. An end-
node that is operating in half-duplex mode can either send data or receive
data, but it cannot do both at the same time. An end-node that is operating
in full-duplex mode can send and receive data simultaneously. The best
network performance is achieved when an end-node can operate at full-
duplex, since the end-node is able to send and receive data simultaneously.
The AT-MC601 and AT-MC602 network extenders can operate in either
half- or full-duplex mode. The network extender can operate with end-
nodes capable of either half-duplex, full-duplex, or that can Auto-
Negotiate the duplex mode. However, it is important to remember that the
two end-nodes connected to the ports on the network extenders must be
able to operate in the same duplex mode.
RJ-45 Port Pinouts.Figure 4 illustrates the pin assignments of an RJ-
45 connector and port.

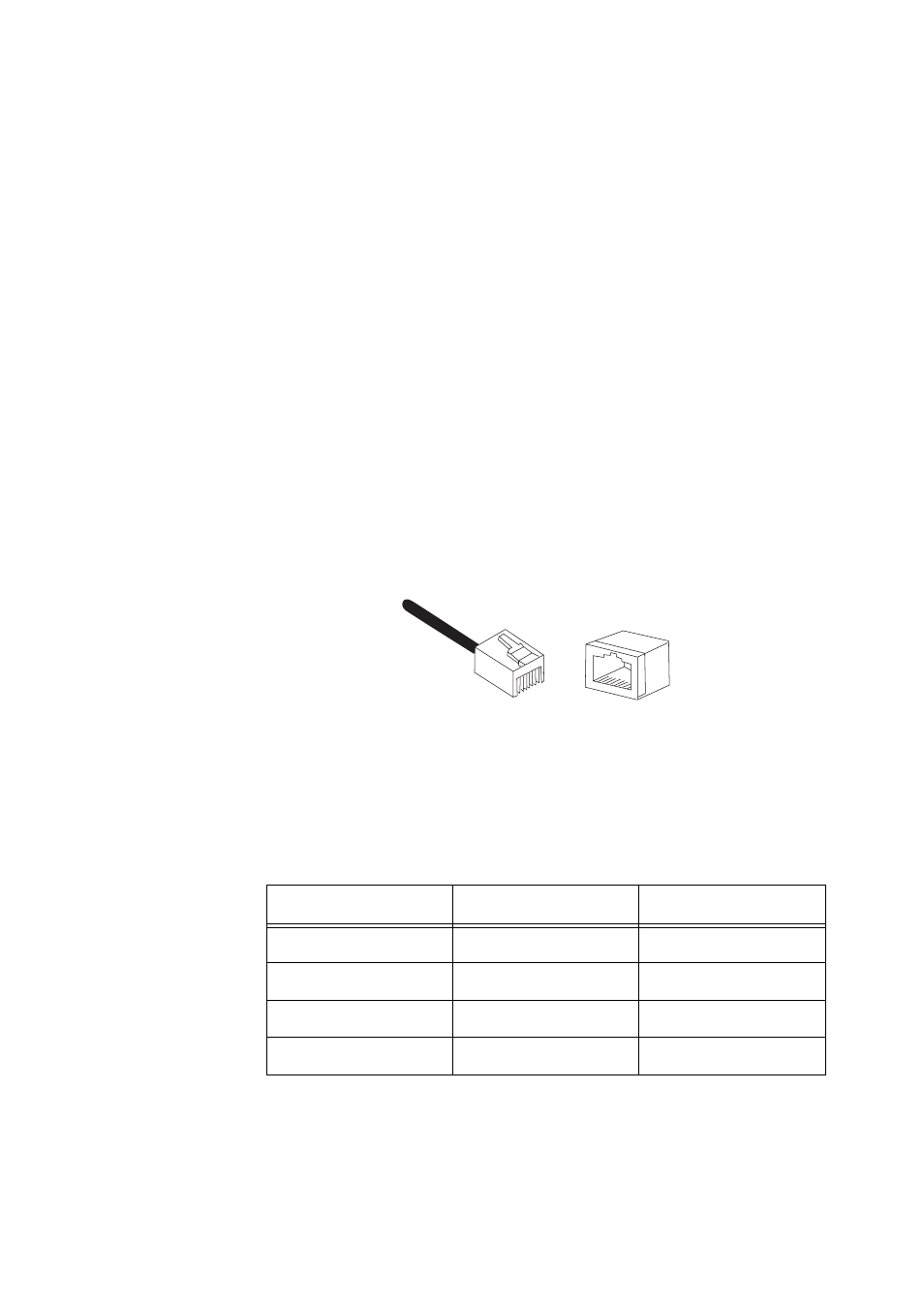

Figure 4 RJ-45 Connector and Port Pin Assignments
Table 3 lists the RJ-45 10Base-T/100Base-TX connector pins and their
signals when the port is operating in either MDI or MDI-X configuration.
Table 3 RJ-45 Port Pinouts
Pin MDI Signal MDI-X Signal
1 TX+ RX+
2 TX- RX-
3 RX+ TX+
6 RX- TX-
8
8
1 1
