AT-MC601, AT-MC602 Installation and User’s Guide
24
Installing the AT-MC601 Subscriber Unit
The AT-MC601 Subscriber unit will most likely be used as a stand-alone
device, or can be used as a desktop device, or mounted onto a wall, using
the keyholes on the bottom of the unit. The screws and plastic anchors used
for mounting the unit are provided.
Using the
Subscriber Unit
on a Desktop
To use the Subscriber unit on a desktop, perform the following procedure:
1. Remove all equipment from the package and store the packaging
material in a safe place.
2. Attach the four protective feet (provided) to each corner of the bottom
of the unit, as illustrated in Figure 6.

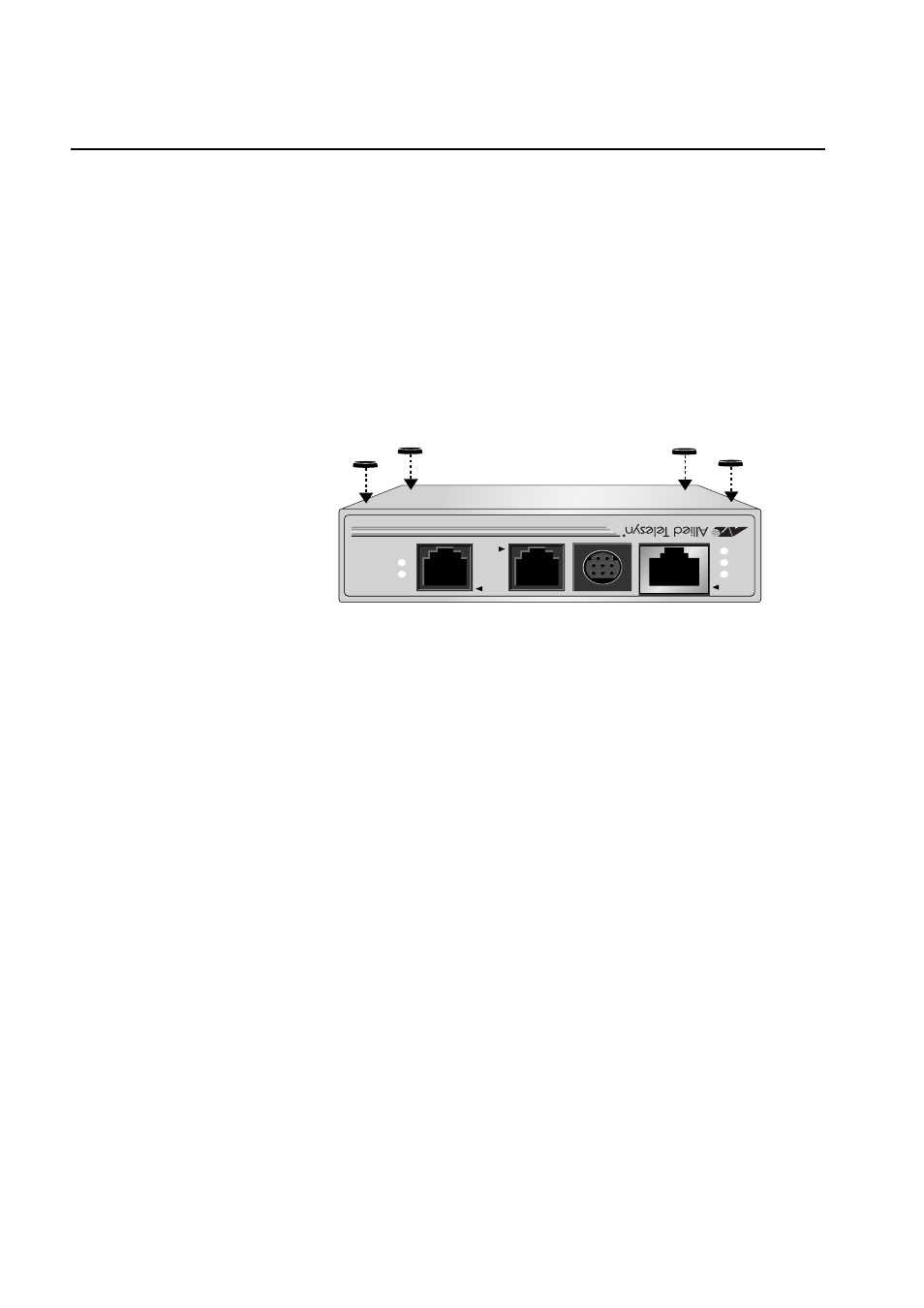

Figure 6 Attaching Protective Feet to the Subscriber Unit
Wall-Mounting
the Subscriber
Unit
The Subscriber unit can be mounted onto a wall using the keyholes on the
bottom of the unit. The screws and plastic anchors used for mounting the
unit are provided.
To wall-mount the Subscriber Unit, perform the following procedure:
1. If attached, remove the protective feet, data cables, and power cord from
the unit.
2. Select a wall location for the device.
LINE 10 BaseT /
100Base TX
PSTN
LINK
ACT
PWR
ERR
LINK
MGMT
A T-MC601 VDSL EXTENDED ETHERNET
