Product Description
15
Status LEDs
The AT-MC601 and AT-MC602 network extenders feature the status
LEDs defined in Table 4.
MGMT Port
The management port features a 8-pin DIN connector for connecting the
network extenders to your laptop or PC-compatible computer for
configuration using the provided management cable.
Management
Cable
The management cable included with the AT-MC602 Provider unit
features a 9-pin RS-232 connector to attach to your computer and an
8-pin DIN connector to attach to the network extender.

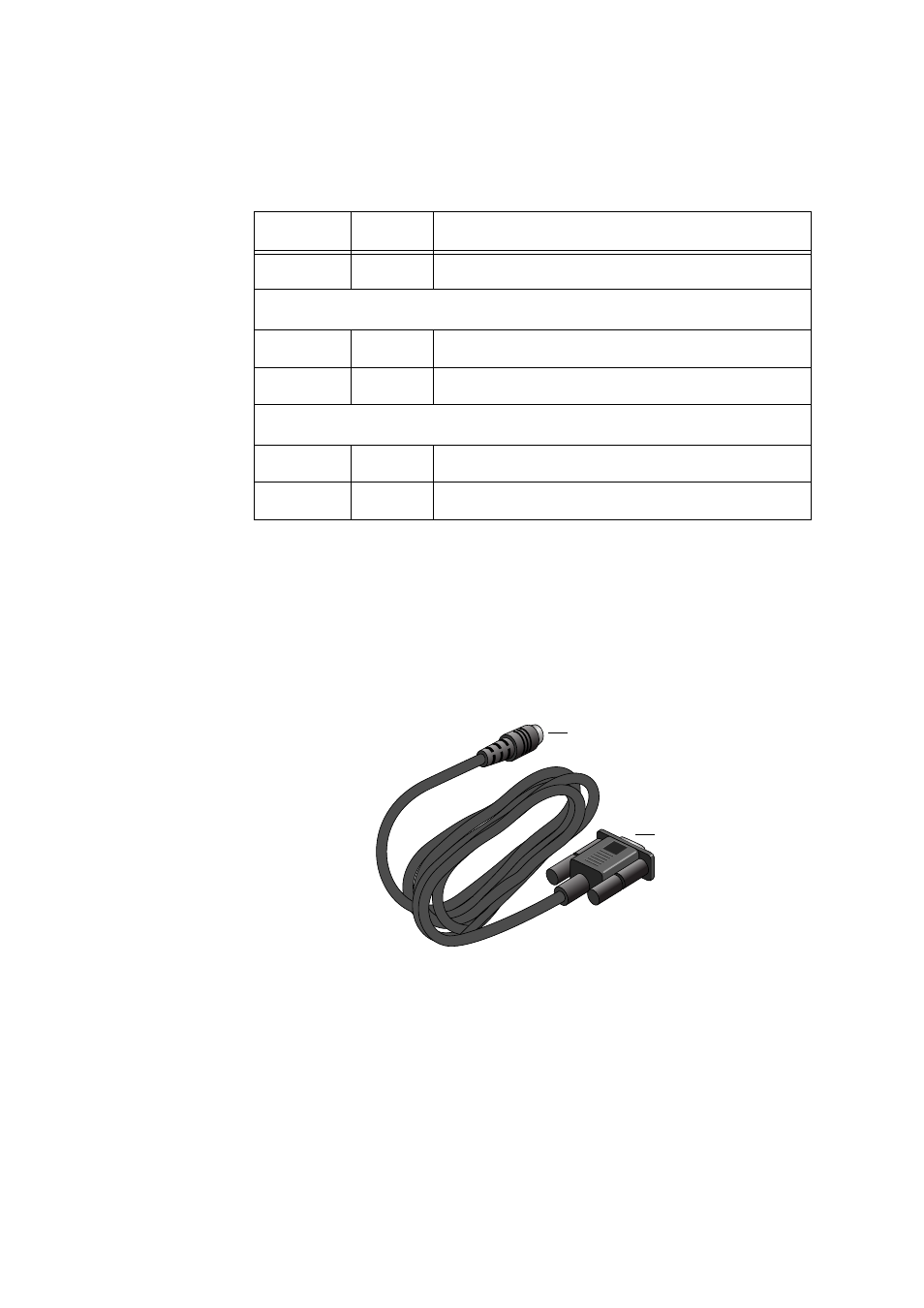

Figure 5 Management Cable
Table 4 Status LEDs
LED Color Description
PWR Green Power is applied to the unit.
10/100Base-TX Port
LINK Green A link has been established on the port.
ACT Green Data is being received on the ports.
LINE Port
ERR Green An error has been detected on the port.
LINK Green A link has been established on the port.
8-pin DIN connector
9-pin RS-232
connector
