Appendix A: Technical Specifications
40
Safety and Electromagnetic Emissions Certifications
RFI Emissions FCC Class A, EN55022 Class A,
CISPR 22 Class A
Safety UL- USA, LVD (EN60950), CSA or
cUL - Canada, CE
Immunity EN55024
Electrical Safety UL 60950-1 (CULUS), EN60950 (TUV)
Compliance Standards
IEEE 802.3 – Ethernet
IEEE 802.3u – Fast Ethernet
IEEE 802.3x – Flow Control, Symmetric and Asymmetric
IEEE 802.3z - Full Duplex
RJ-45 Twisted-Pair Port Connectors
This section lists the connectors and connector pinouts for the AT-FS716L
and AT-FS724L Fast Ethernet Switches ports.
Figure 16 illustrates the pin layout to an RJ-45 connector and port.

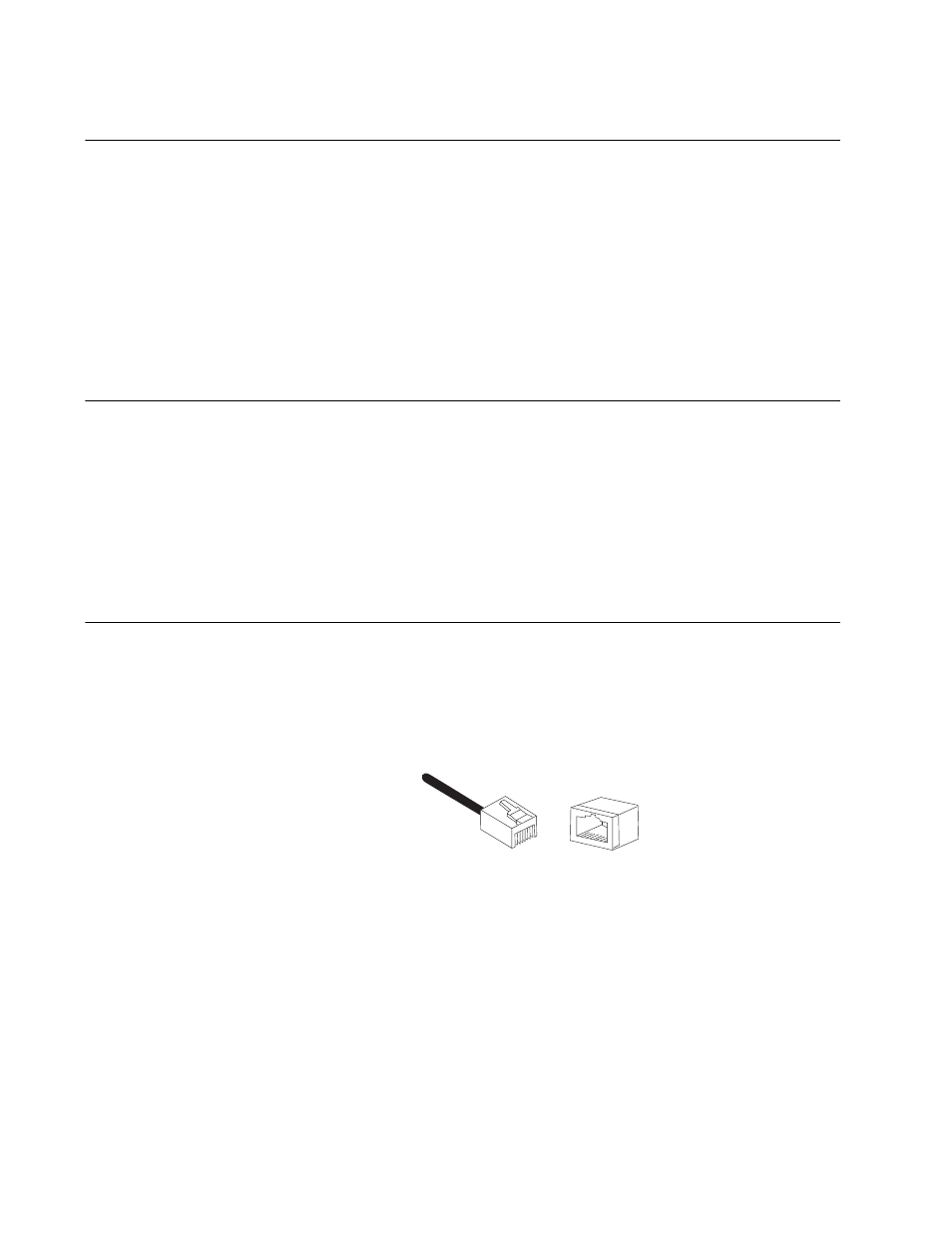

Figure 16. RJ-45 Connector and Port Pin Layout
8
8
1 1
