AT-FS716L & AT-FS724L Fast Ethernet Switch Installation Guide
11
Overview
The AT-FS716L and AT-FS724L Fast Ethernet Switches provide simple,
energy efficient, and cost-effective solutions for switching 10 Mbps and
100 Mbps network traffic.
The AT-FS716L and AT-FS724L switches feature 16 and 24
10/100Base-TX twisted-pair ports respectively. Each port has an RJ-45
connector and a maximum operating distance of 100m and is capable of
Auto-Negotiating speeds of 10 or 100 Mbps at half/full-duplex operation.
Both the AT-FS716L and AT-FS724L Fast Ethernet switches can be used
on a desktop, mounted to a wall or in a rack and feature high efficiency,
low power consumption internal power supplies. These switches are easy
to install and do not require any software configuration or management.

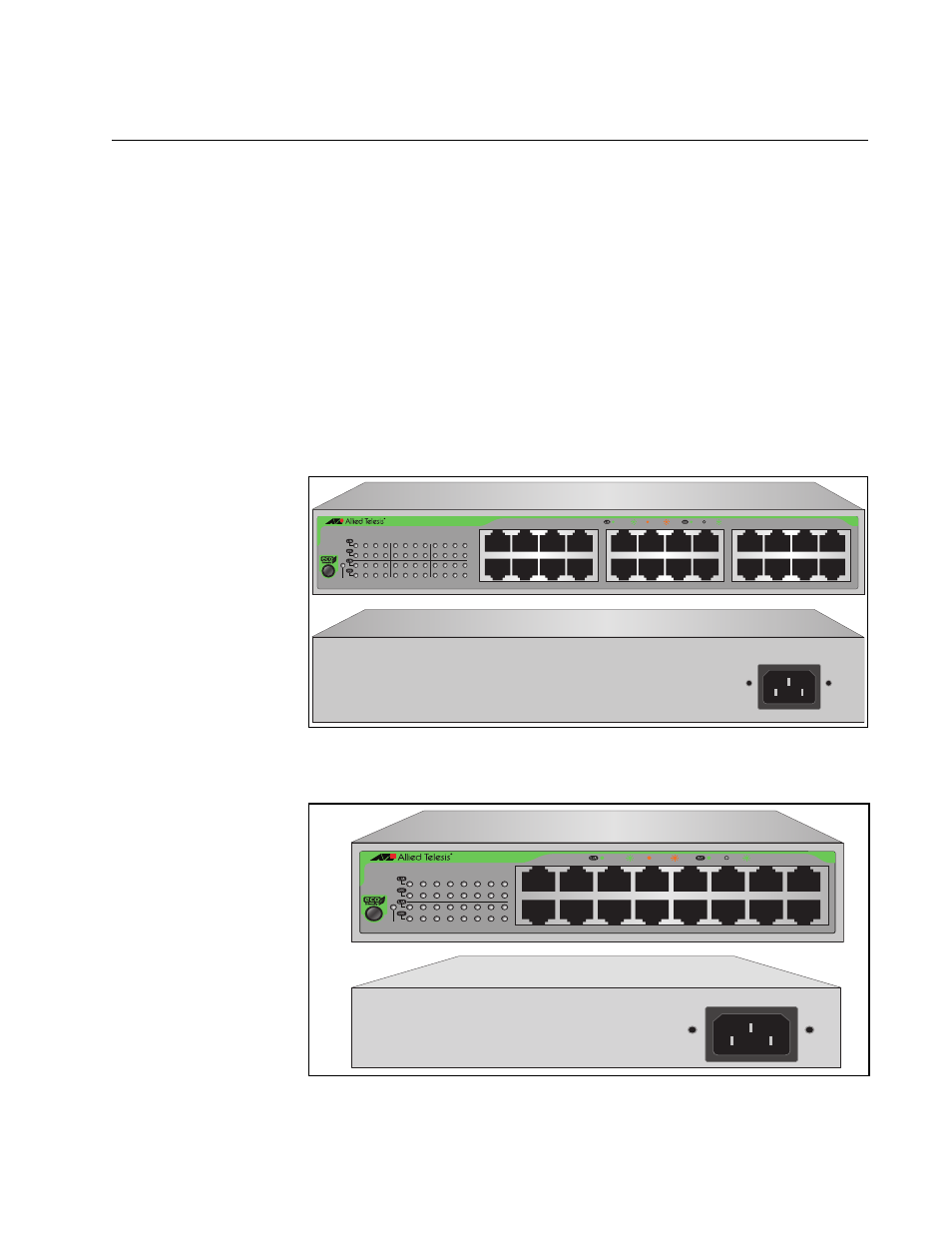

Figure 1 and 2 illustrate the front and rear panels of these switches.
Figure 1. AT-FS724L Front and Rear Panels
Figure 2. AT-FS716L Front and Rear Panels
1540
AT-FS724L
24 Port Unmanaged Fast Ethernet Switch
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
18
20
22
24
10
12
14
16
2
4
6
8
9
11
13
15
1
3
5
7
17
19
21
23
POWER
10 LINK
ACT
100 LINK
ACT
FDX
HDX
COL
1541
100-240VAC~
1527
AT-FS716L
16
Port Unmanaged Fast Ethernet Switch
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
POWER
10 LINK
ACT
100 LINK
ACT
FDX
HDX
COL
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
100-240VAC~
