AT-FS716L & AT-FS724L Fast Ethernet Switch Installation Guide
29
Installing the Switch on a Table or Desktop
To install the switch on a table or desktop, perform the following
procedure:
1. Remove all the items from the packaging and store the packaging
material in a safe place. In the event a problem occurs and you need to
return the unit, please use as much of the original shipping material as
possible.
2. Attach the four self-adhesive rubber feet to the bottom of the switch, as
shown in Figure 6.

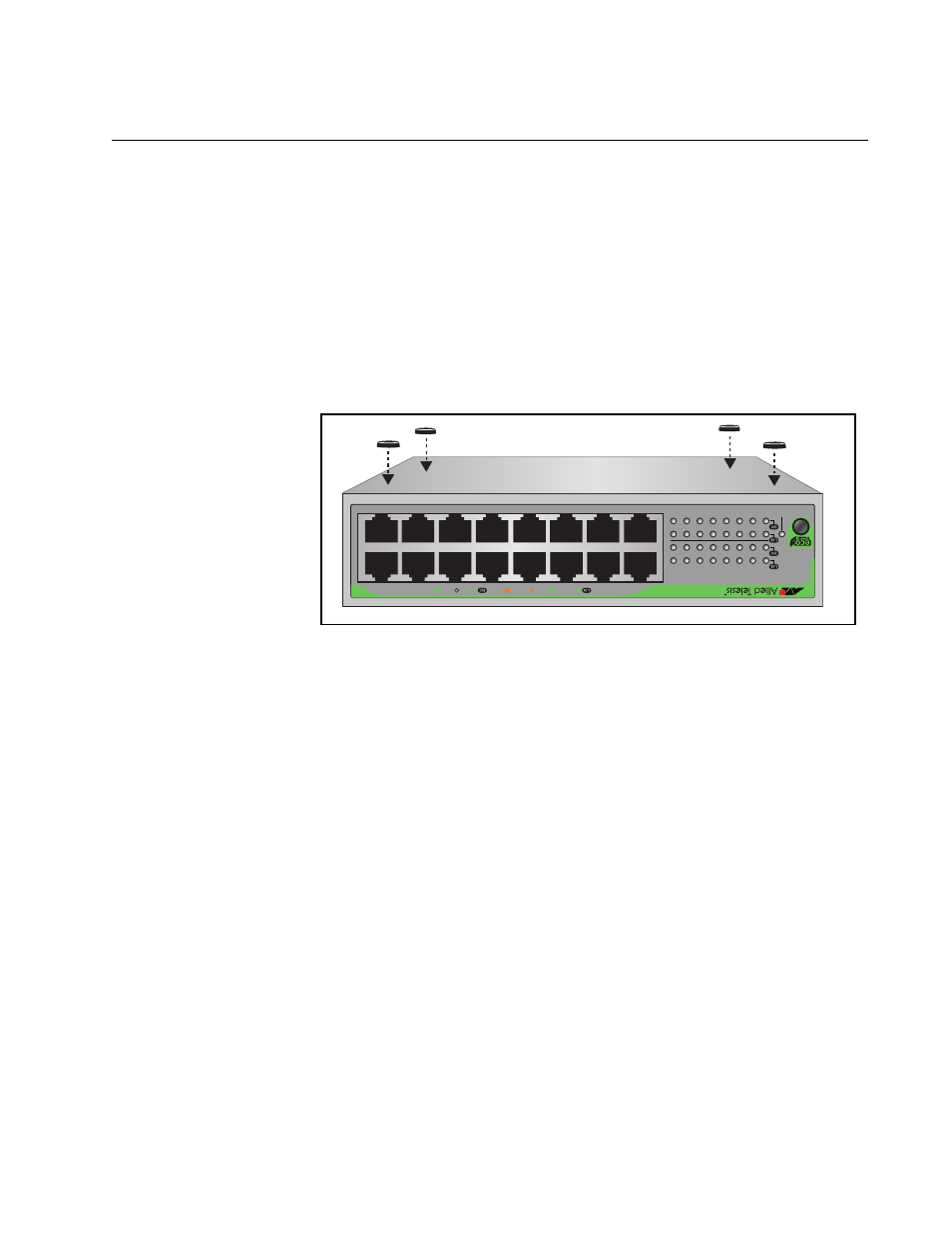

Figure 6. Attaching the Rubber Feet
3. Turn the switch over and place it on a flat and secure surface, leaving
ample space around the switch for ventilation.
4. The switch is now ready for cabling and powering up. Go to
“Connecting the Ports and Powering On the Switch” on page 36 to
connect your switch to the network.
