Wall-Mounting the Switch
Either switch can be mounted horizontally on a wall using the wall-
mounting brackets that come with the unit. The wall-mounting screws and
plastic anchors necessary to mount the switch on a wall are provided.
To wall-mount the switch, perform the following procedure:
1. Remove any data cables and the power cord from the switch if they
are attached to the switch.
2. If attached, remove the rubber feet from the bottom of the chassis with
a flat bladed screw driver as shown in Figure 10.

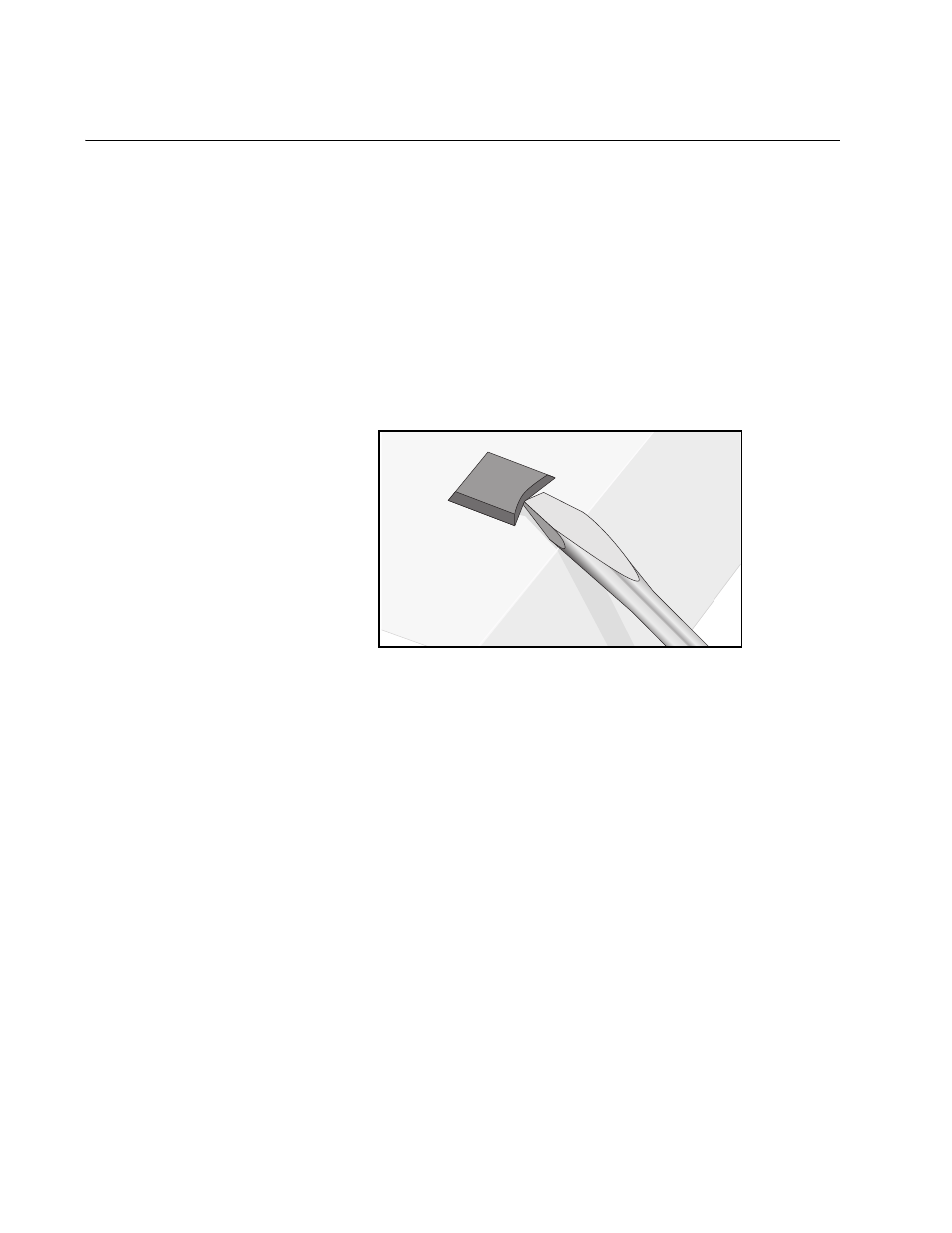

Figure 10. Removing the Rubber Feet from Chassis
3. Select a wall location for the switch.
