AT-GS2002/SP Gigabit Ethernet to Fiber SFP Media Converter Installation Guide
43
Powering On the AT-GS2002/SP Media Converter
To power on an AT-GS2002/SP Media Converter, perform the following
procedure:
Note
The AC/DC power adapter shipped with the unit is not used if you
install the AT-GS2002 in an AT-MCR12 chassis. In this case, refer
to the AT-MCR12 Installation Guide for installation of the media
converter into the chassis and the power up instructions.
Note
The AC/DC power adapter shipped with the unit is used if you install
the AT-GS2002 in an AT-TRAY4 or AT-TRAY1 chassis. The
following procedure applies in these cases.
1. Locate the 12 VDC input connector on the rear panel of the AT-
GS2002/SP Media Converter as shown in Figure 11.

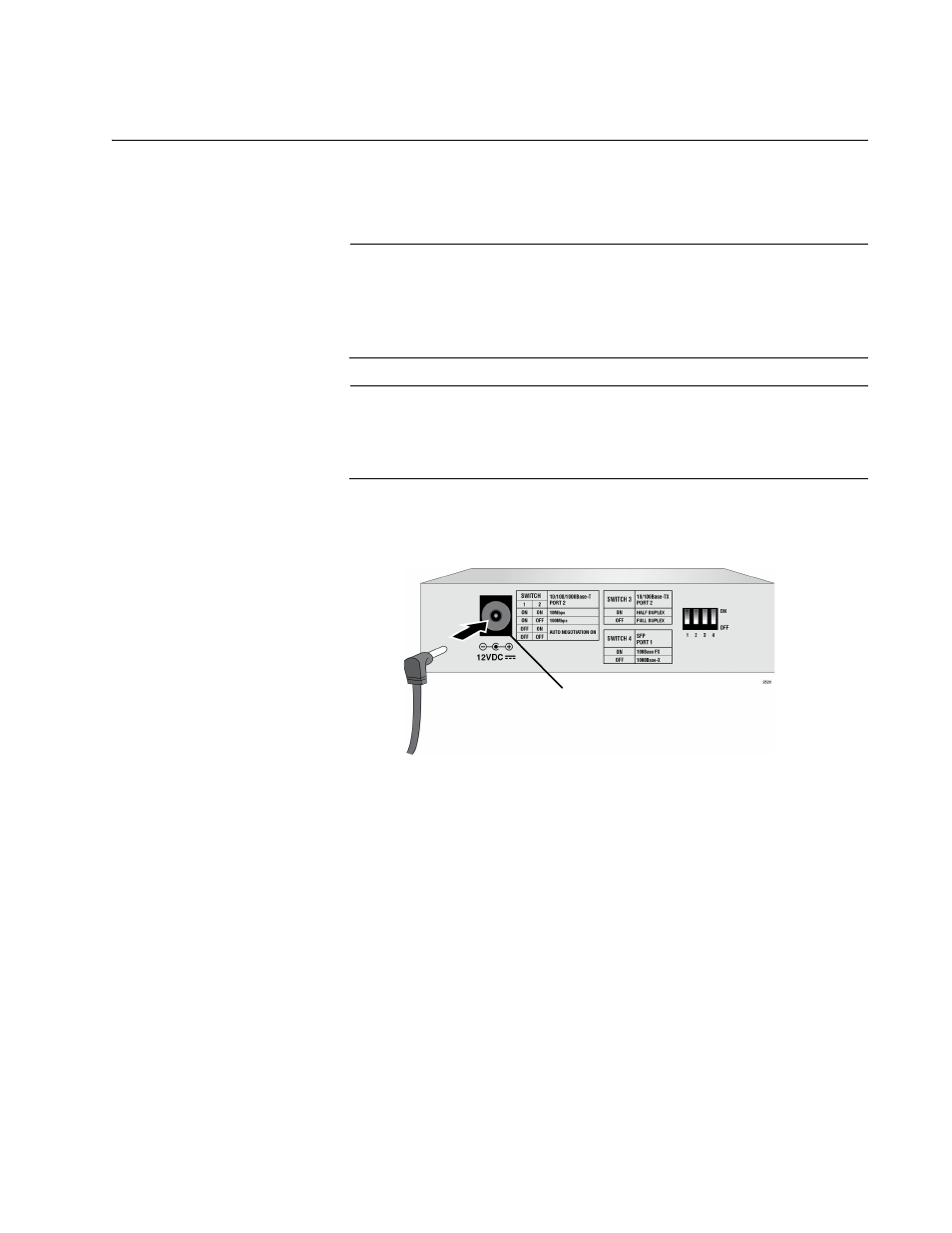

Figure 11. Connecting Power Cord to an AT-GS2002 AC Powered
Chassis
2. Plug the DC end of the power cord to the power receptacle connector
labeled 12VDC.
12 VDC
Input Connector
