AT-GS2002/SP Gigabit Ethernet to Fiber SFP Media Converter Installation Guide
23
LEDs
There are four types of LEDs on the AT-GS2002/SP Media Converter, as
shown in Figure 3:
 SFP Port LEDs
 Twisted-pair port LEDs
 Status LED
 Missing Link Mode LEDs

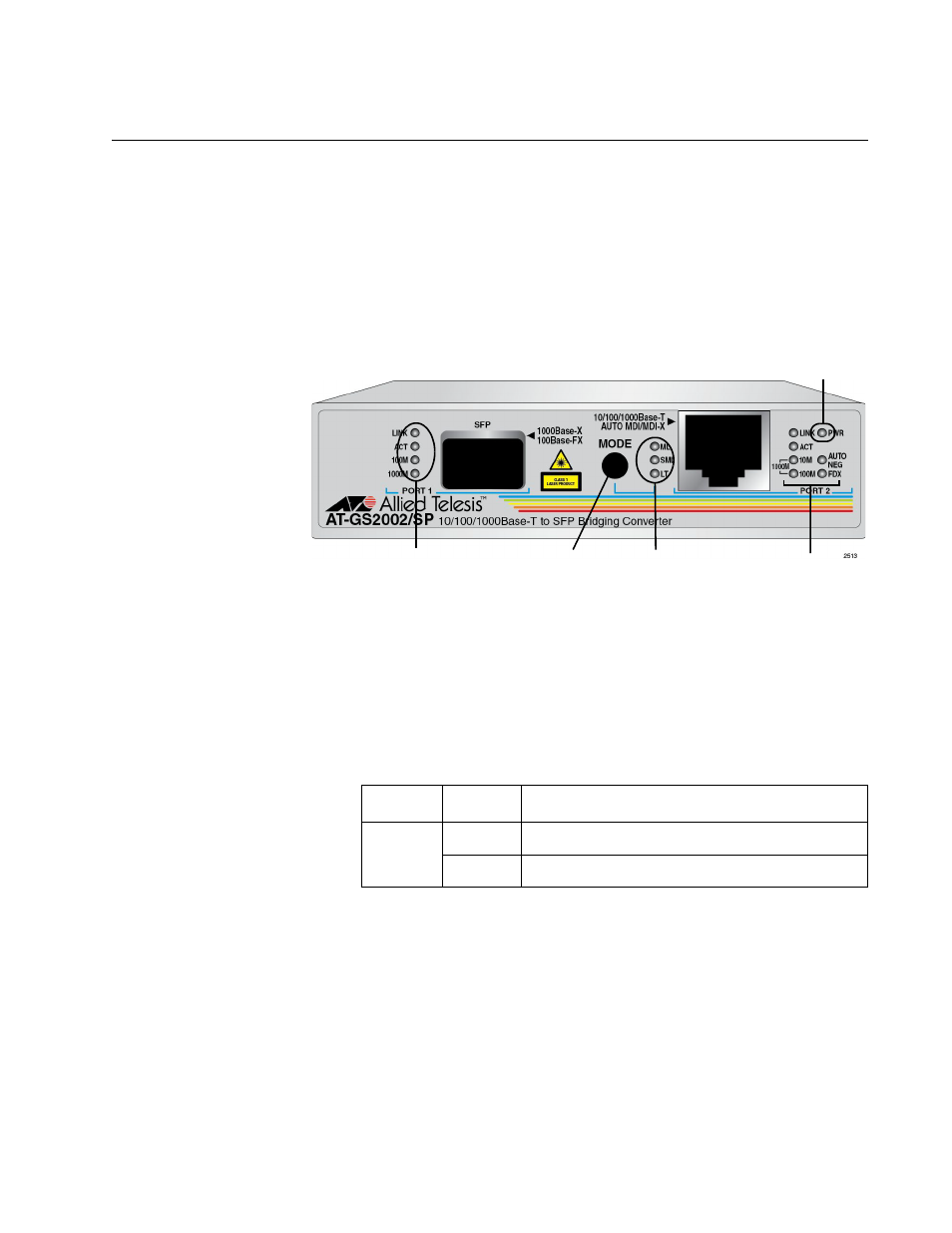

Figure 3. LEDs on the AT-GS2002 Series Converter
Power LED
The Power LED indicates the operating status of the converter. Refer to
Figure 3 for the location of this status LED. This LED is described in
Table 2.
SFP Port (1) MODE Push Mode Twisted-Pair
Power LED
LEDs Button LEDs Port (2) LEDs
Table 2. Power LED
LED Color Description
PWR
Green
Indicates that the unit power is ON.
Off Indicates that the converter power is OFF.
