AT-GS2002/SP Gigabit Ethernet to Fiber SFP Media Converter Installation Guide
19
Front and Back Panels

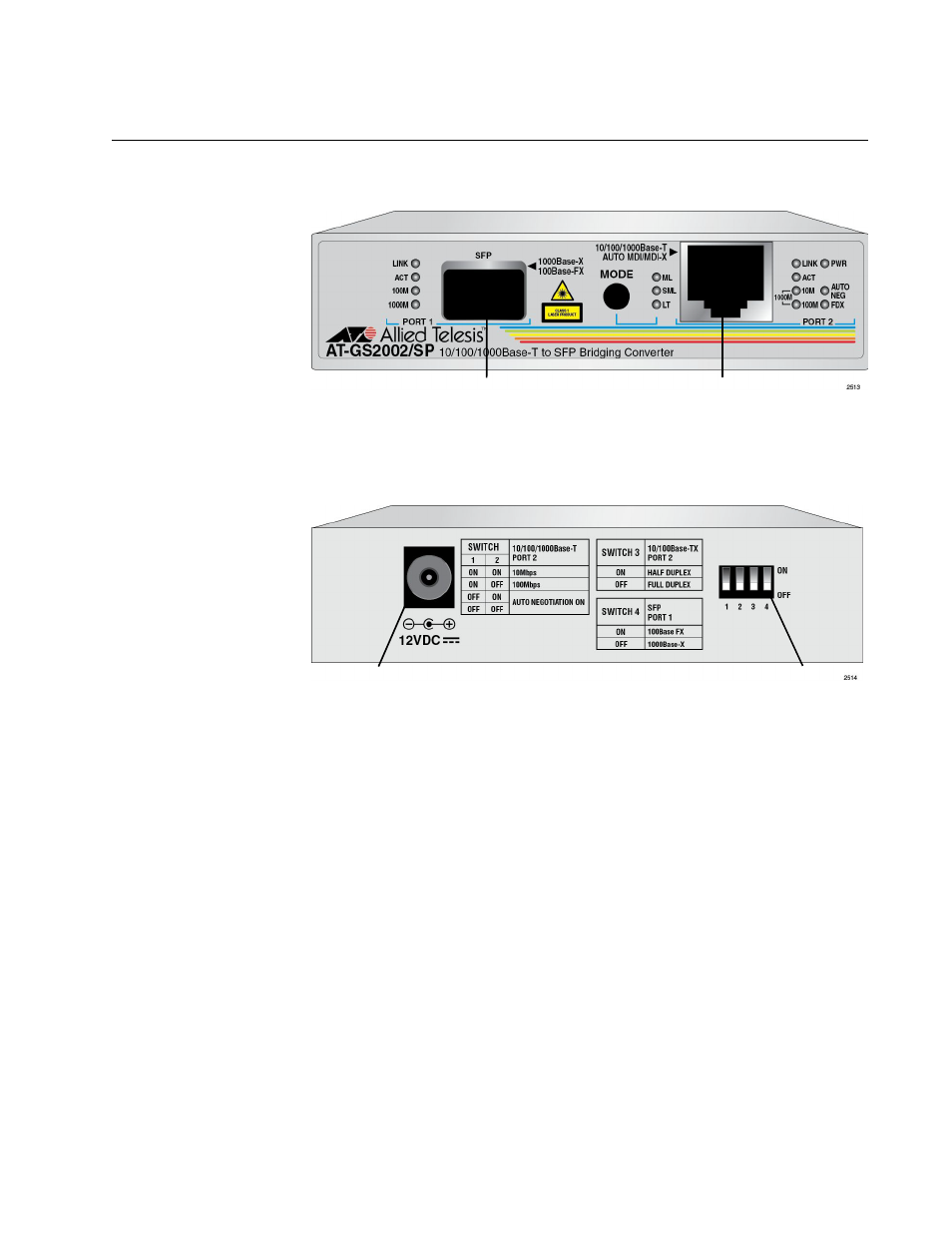

Figure 1 illustrates the front panel of the AT-GS2002/SP Media Converter.
Figure 1. AT-GS2002/SP Front Panel
Figure 2 illustrates the back panel of the AT-GS2002/SP Media Converter.
Figure 2. AT-GS2002/SP Back Panel
Port 1
SFP
Port 2
Twisted-Pair
DIP
Switch
12 VDC
Input Connector
