AT-2701 Series Fast Ethernet Adapter Installation Guide
65
PCI PME
The PCI PME (Power Management Event) property enables the Wake-on-
LAN (WOL) function to wake the adapter up from a low-power mode,
based on the settings of the “Wake on Magic Packet” and “Wake on
Pattern Match” properties.
For example, if the PCI PME and Wake on Magic Packet properties are
enabled, the adapter wakes up from a low-power mode when receiving a
Magic Packet. If the PCI PME, Wake on Magic Packet, and Wake on
Pattern Match properties are enabled, the adapter wakes up from a low-
power mode when receiving a Magic Packet or a packet that matches one
of the patterns specified in the operating system.
To enable or disable the PCI PME property, do the following:
1. Access the Advanced Properties.
See “Accessing Advanced Properties” on page 60.
2. Select PCI PME in the Property box.

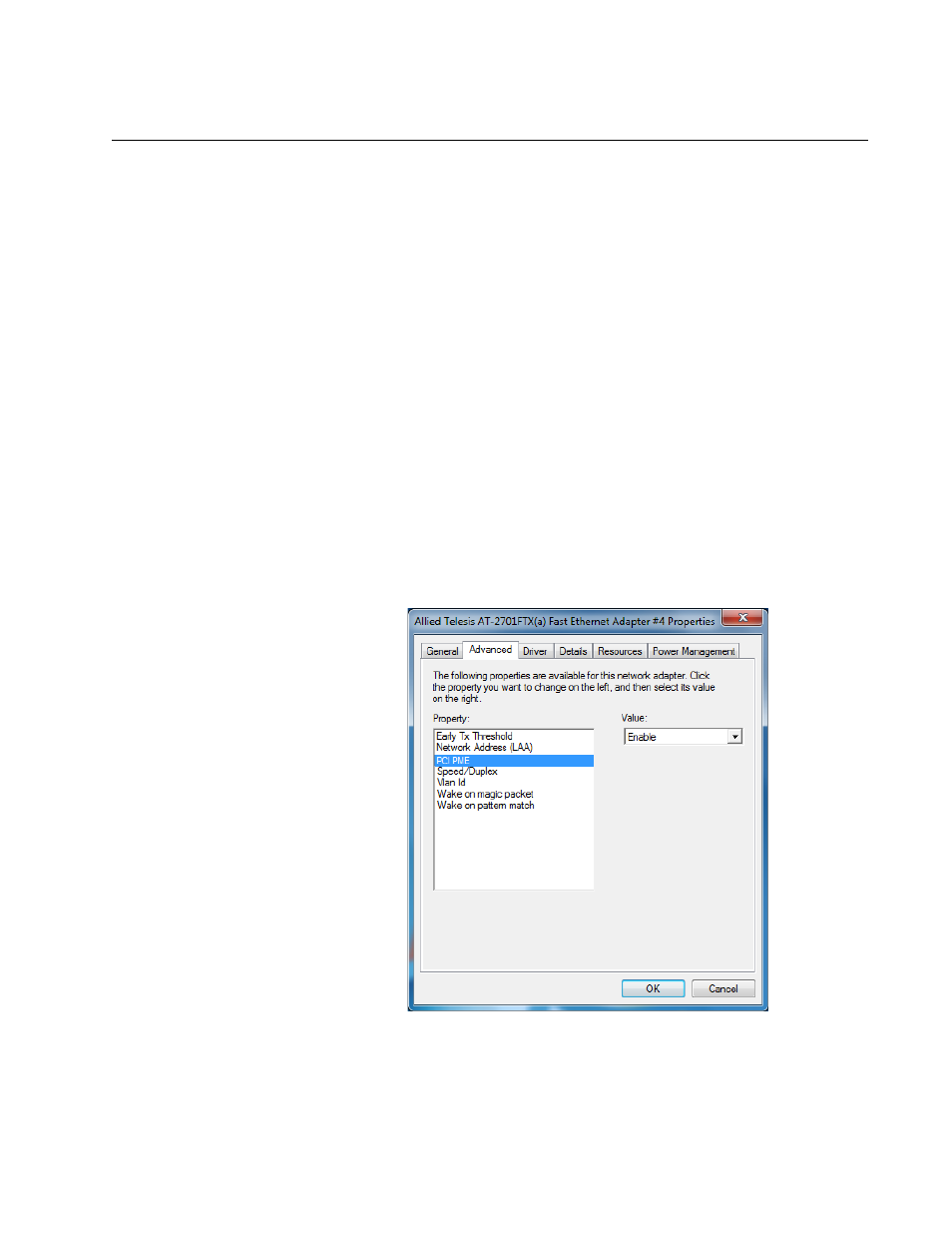

The PCI PME page is displayed as shown in Figure 34.
Figure 34. PCI PME Page
