AT-2701 Series Fast Ethernet Adapter Installation Guide
13
SC Fiber Optic
Adapter
The AT-2701FXa/SC and AT-2701FTXa/SC adapter cards are equipped
with a 100BASE-FX port with the SC adapter.
The SC adapter is shown in Figure 2.

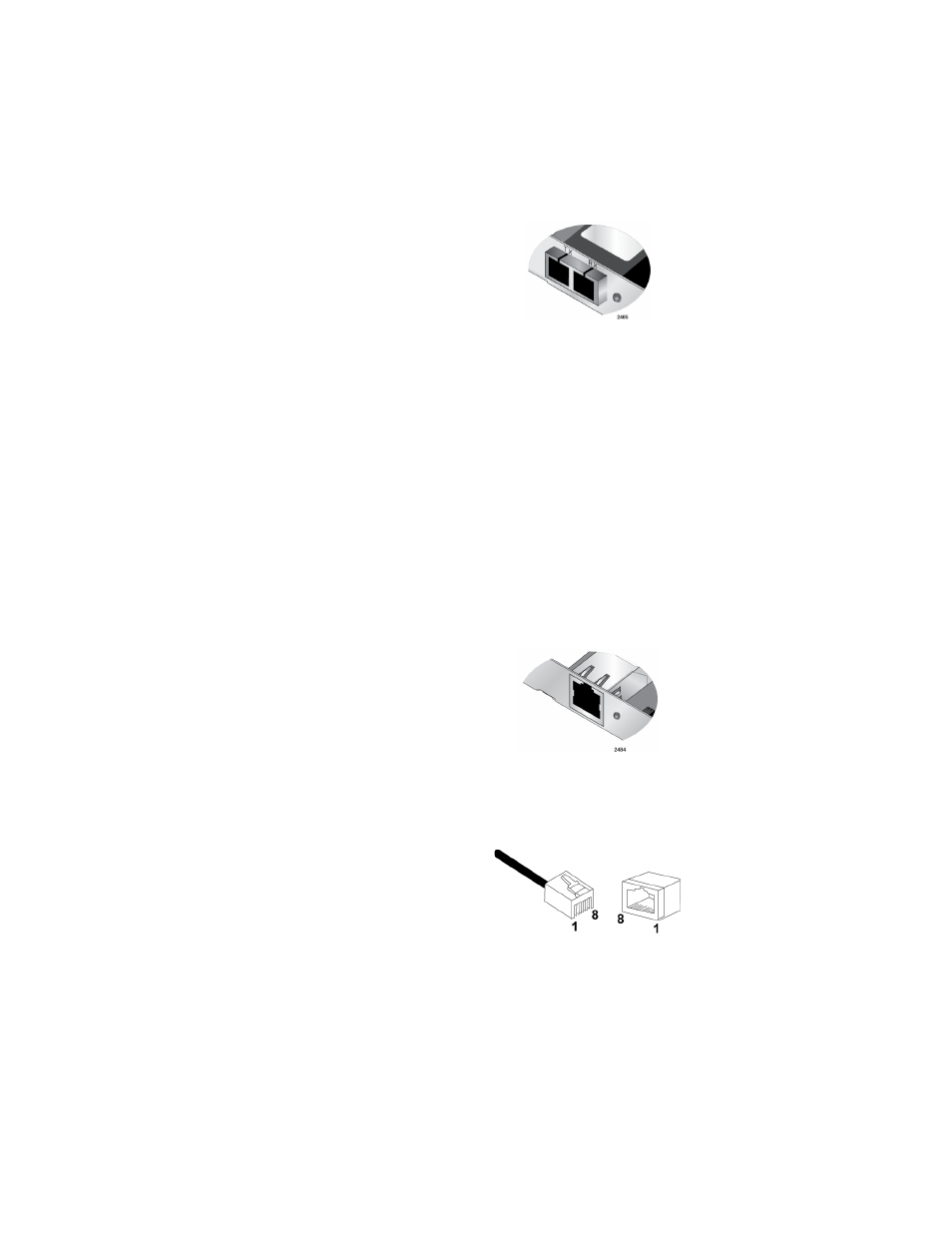

Figure 2. SC Fiber Optic Adapter
To connect the SC adapter to a network cable, you must have a fiber optic
network cable with the SC connector.
ST Fiber Optic
Adapter
The AT-2701FXa/ST and AT-2701FTXa/ST adapter cards are equipped
with a 100BASE-FX port with the ST adapter.
To connect the ST adapter to a network cable, you must have a fiber optic
network cable with the ST connector.
Twisted Pair
Copper Port
The AT-2701FTXa/SC and AT-2701FTXa/ST adapter cards are equipped
with a port for a 10/100BASE-T twisted pair cable.
The twisted pair cable port is shown in Figure 3.
Figure 3. Twisted Pair Cable Port
The pin layout to a port and RJ-45 connector is illustrated in Figure 4.
Figure 4. Pin and RJ-45 Connector Pin Layout
