Page 37: Surround mode and input signal chart, Eng opera tion, Press surround button to select ‘stereo, Press stereo button, Sfe mode works with 2-ch signals, Wait for about 5 seconds
37
ENG
OPERA
TION
L/R : front speaker (left/right) C : center speaker SL/SR : surround speaker (left/right) SBL/SBR : surround back speaker (left/right)
SW : subwoofer

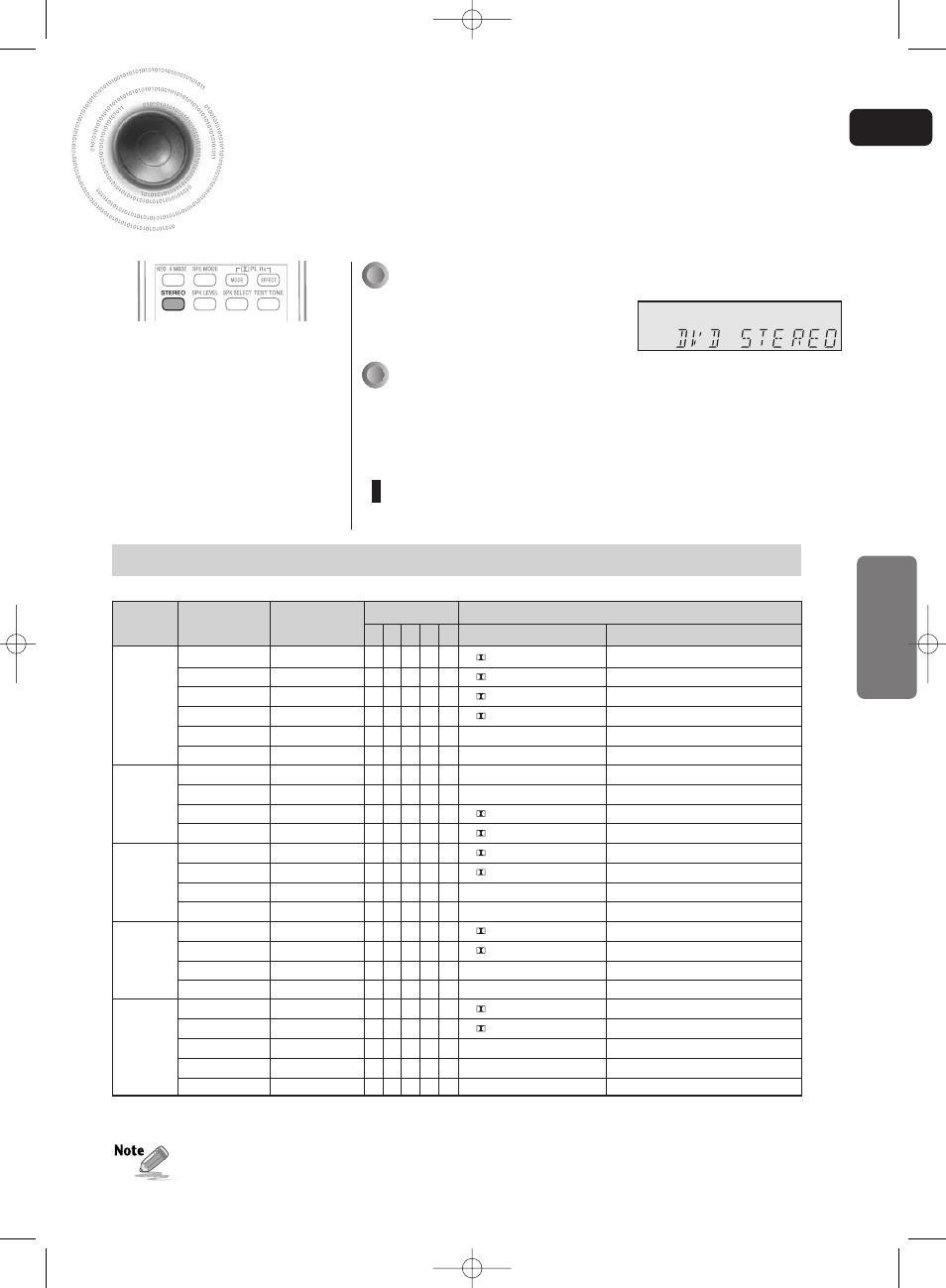

Surround Mode and Input Signal Chart
•
Channel status displays are dependent on the speaker configuration.
•
SFE mode works with 2-ch signals.
Dolby D Surr. EX
Dolby Digital 5.1
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (5.1ch)
Dolby Digital 5.1
O
O
O
–
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
Pro Logic II x
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch Surr)
Pro Logic II x
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
L.PCM (Audio)
Pro Logic II x
O
O
O
O
O
L.PCM
L, C, R, SL, SR, SBL, SBR, SW
Analog
Pro Logic II x
O
O
O
O
O
ANALOG
L, C, R, SL, SR, SBL, SBR, SW
L.PCM (Audio)
Neo:6
O
O
O
O
O
L.PCM
L, C, R, SL, SR, SBL, SBR, SW
Analog
Neo:6
O
O
O
O
O
ANALOG
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch)
Neo:6
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch Surr)
Neo:6
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch)
DD+SFE
O
O
O
–
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch Surr)
DD+SFE
O
O
O
–
O
DIGITAL
L, C, R, SL, SR, SW
L.PCM (Audio)
SFE
O
O
O
–
O
L.PCM
L, C, R, SL, SR, SW
Analog
SFE
O
O
O
–
O
ANALOG
L, C, R, SL, SR, SW
Dolby D Surr. EX
Dolby Digital EX
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (5.1ch)
Dolby Digital EX
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SBL, SBR, SW
DTS-ES
DTS-ES
O
O
O
O
O
dts, ES
L, C, R, SL, SR, SBL, SBR, SW
DTS (5.1ch)
DTS-ES
O
O
O
O
O
dts
L, C, R, SL, SR, SBL, SBR, SW
Dolby D (2ch)
Stereo
O
–
–
–
O
DIGITAL
L, R, SW
Dolby D (2ch Surr)
Stereo
O
–
–
–
O
DIGITAL
L, R, SW
L.PCM (Audio)
Stereo
O
–
–
–
O
L.PCM
L, R, SW
L.PCM 96KHz
Stereo
O
–
–
–
O
L.PCM
L, R, SW
Analog
Stereo
O
–
–
–
O
ANALOG
L, R, SW
Surround
Mode
Input Signal
Decoding
Output Channel
L/R C SL
SR
SBL
SBR SubW
Display Information
Display Signal Format
Channel Status
EX/ES
DOLBY
(MUSIC,
CINEMA,
MATRIX,
GAME,
PRO LOGIC)
NEO:6
(MUSIC,
CINEMA)
STEREO
SFE
o = active, – = inactive
Press SURROUND button to select ‘STEREO’.
•
Each time you press this button, DPLIIx
➝ NEO:6 ➝ SFE ➝ STEREO will be
selected in turn.
•
If you press the STEREO button on the player, it will switch to STEREO mode.
MAIN UNIT
Stereo mode
You can select this mode when listening to sound through the front left and right speakers and subwoofer.
Press STEREO button.
•
“STEREO” appears in the display and
Stereo Mode is selected.
