13
ENG
CONNECTIONS
MAIN UNIT AV-R720
FRONT SPEAKER PS-AF720S
CENTER SPEAKER PS-AC720S
SURROUND SPEAKER PS-AR720S
ACTIVE SUBWOOFER PS-AW720S
SYSTEM MODEL NAME : HT-AS720S

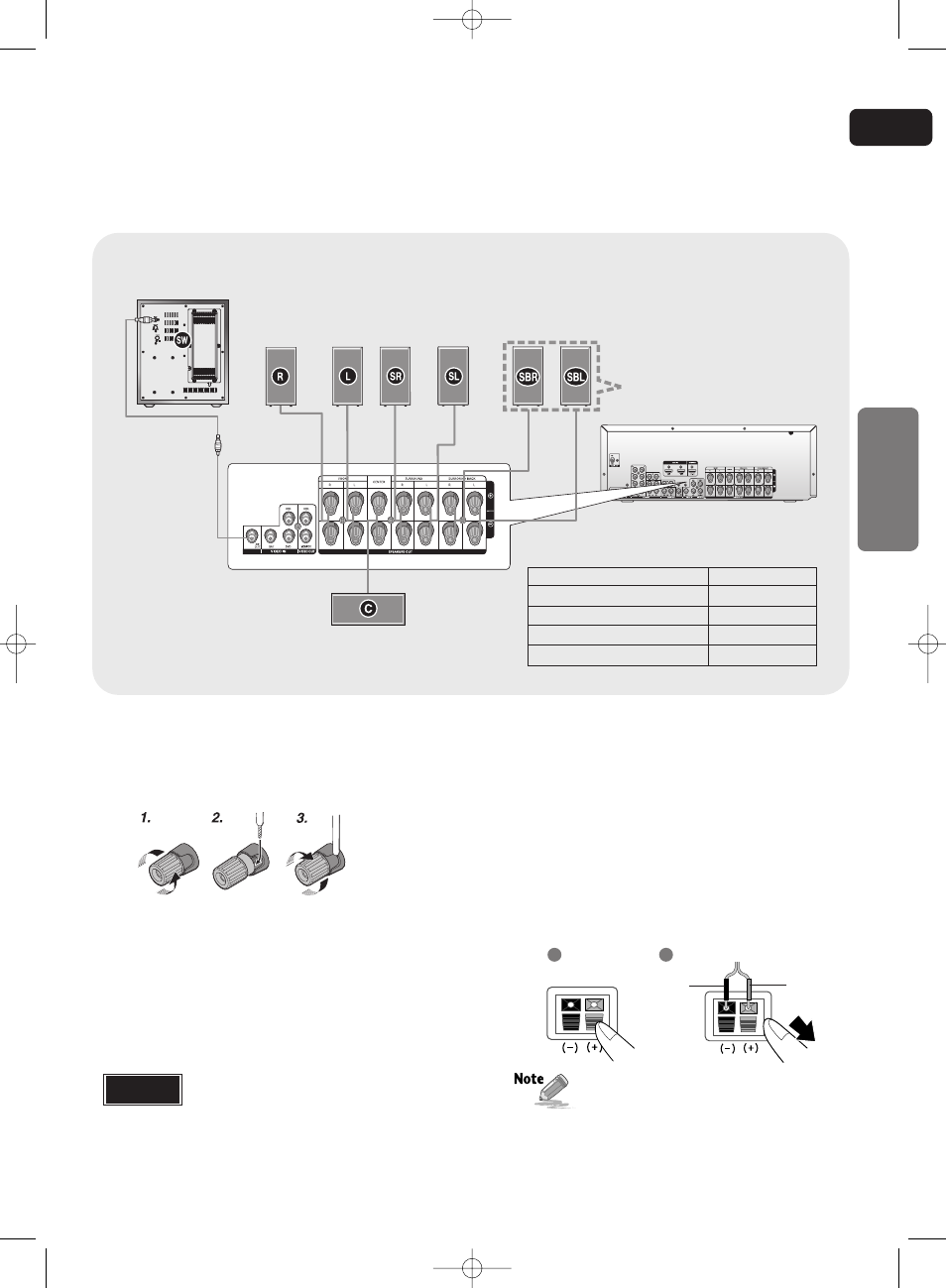

√ CONNECTING SPEAKER WIRE
SURROUND (R)
PS-AR720S
SURROUND (L)
PS-AR720S
SURROUND
BACK (R)
SURROUND
BACK (R)
(Not supplied)
MAIN UNIT
AV-R720
CENTER
PS-AC720S
• Never touch speaker terminals while the power is on.
Doing so could result in electric shock.
• Make sure the polarities (+ and -) are correct.
• This system is capable of reproducing 6.1/7.1
channel sound, however only 5.1 speakers are
supplied.
• Keep the subwoofer speaker out of reach of children to
prevent them from inserting their hands or objects
into the duct (hole).
Caution
FRONT (L)
PS-AF720S
FRONT (R)
PS-AF720S
ACTIVE SUBWOOFER
(BUILT-IN POWER AMPLIFIER)
PS-AW720S
1. Loosen the knob by turning counterclockwise.
2. Insert the bare part of the wire into the hole in the side of each terminal.
3. Tighten the knob by turning clockwise to secure the wire.
√ Connecting the Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire
into the red (+) terminal, and then release the tab.
3. Connect the connecting plugs to the back of the Home Theater.
• Make sure the colors of the speaker terminals match the colors
of the connecting plugs.
1 2
Black Red
