English - 8

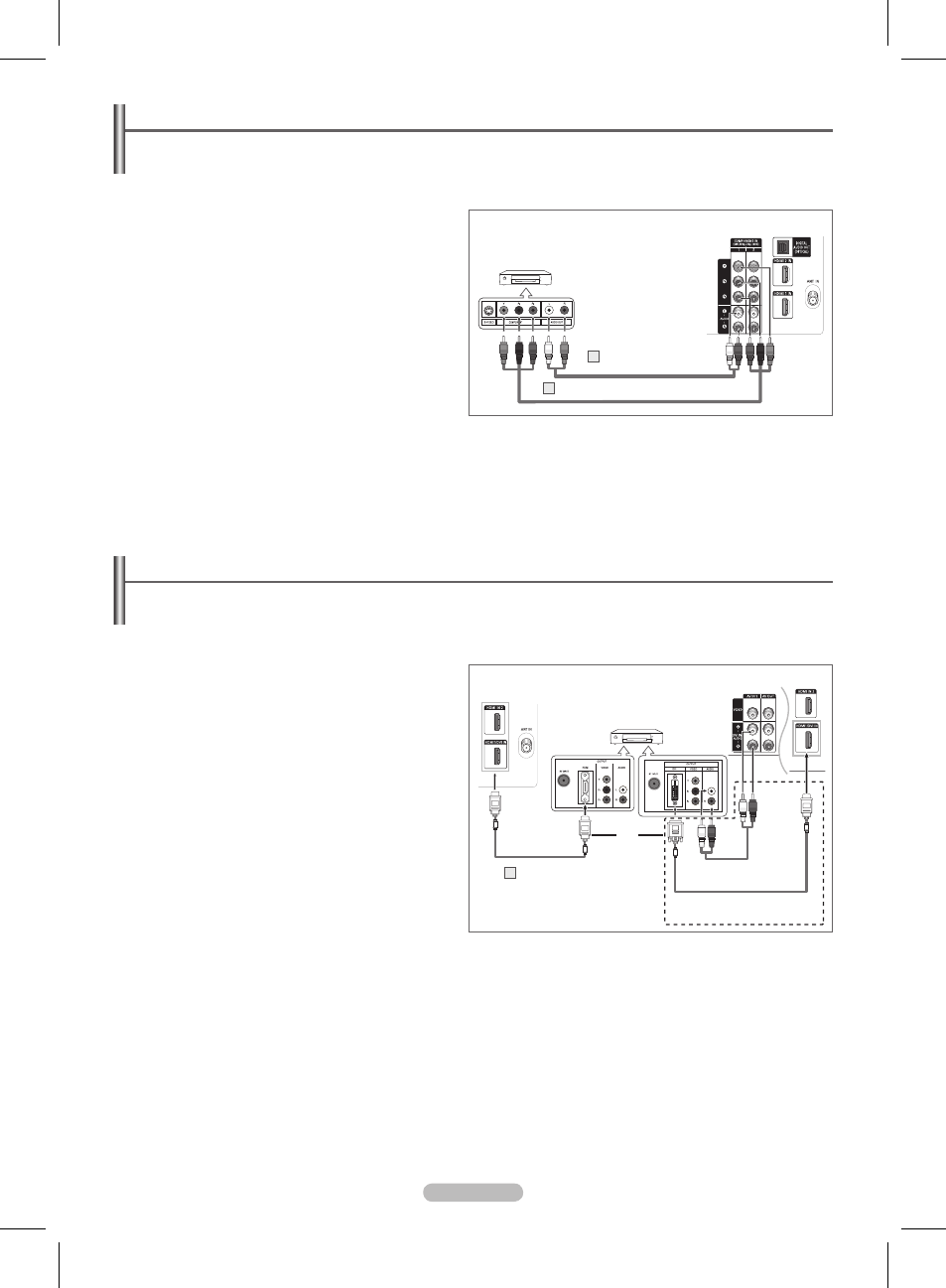

Connecting a DVD Player/Set-Top Box
The rear panel jacks on your TV make it easy to connect a DVD player/Set-Top Box.
➢  Each DVD Player/Set-Top Box has a different back panel configuration.
 When connecting a DVD Player/Set-Top Box, match the color of the connection terminal to the cable.
1 Connect Component Cables between the COMPONENT
IN 1 [Y, P
B
, P
R
] or COMPONENT IN 2 [Y, P
B
, P
R
] jacks on
the TV and the COMPONENT OUT [Y, P
B
, P
R
] jacks on the
DVD Player/Set-Top Box.
2 Connect Audio Cables between the COMPONENT IN 1
[L-AUDIO-R] or COMPONENT IN 2 [L-AUDIO-R] jacks on
the TV and the AUDIO OUT jacks on the DVD Player/
Set-Top Box.
➢ Component video separates the video into Y(Luminance
(brightness)), P
B
(Blue), and P
R
(Red) for enhanced video
quality. Be sure to match the component video and
audio connections. For example, if connecting the video
cable to COMPONENT IN, connect the audio cable to
COMPONENT IN also.
Connecting a DVD Player/Set-Top Box via HDMI
This connection can only be made if there is an HDMI/DVI Output jack on the external device.
➢  Each DVD Player/Set-Top Box has a different back panel configuration.
 When connecting a DVD Player/Set-Top Box, match the color of the connection terminal to the cable.
1 Connect an HDMI Cable between the HDMI/DVI IN
(or HDMI1/DVI IN, HDMI IN 2) on the TV and the HDMI
OUT on the DVD player/Set-Top Box or connect a DVI to
HDMI Cable or DVI-HDMI Adapter between the HDMI/DVI
IN (or HDMI1/DVI IN, HDMI IN 2) jack on the TV and the
DVI jack on the DVD player/Set-Top Box.
If connecting via HDMI/DVI, you must also connect audio
cables. Connect Audio Cables between the AV IN 1
[L-DVI IN/AUDIO-R] jacks on the TV and the AUDIO OUT
jacks on the DVD player/Set-Top Box.
➢ When connecting via HDMI, you do not need to connect
Audio Cables. You only need to connect Audio cables when
connecting via HDMI/DVI.
What is HDMI?
 HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video
signals using a single cable.
 “Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy
Protection) coding feature installed, and supports multi-channel digital audio.
Rear of the TV
DVD Player/
Set-Top Box
Audio Cable
(Not supplied)
2
Component Cable(Not supplied) 1
Rear of the TV
DVD Player/
Set-Top Box
Audio Cable
(Not supplied)
HDMI Cable
(Not supplied)
1
Rear of the TV
DVI to HDMI Cable
(Not supplied)
or
