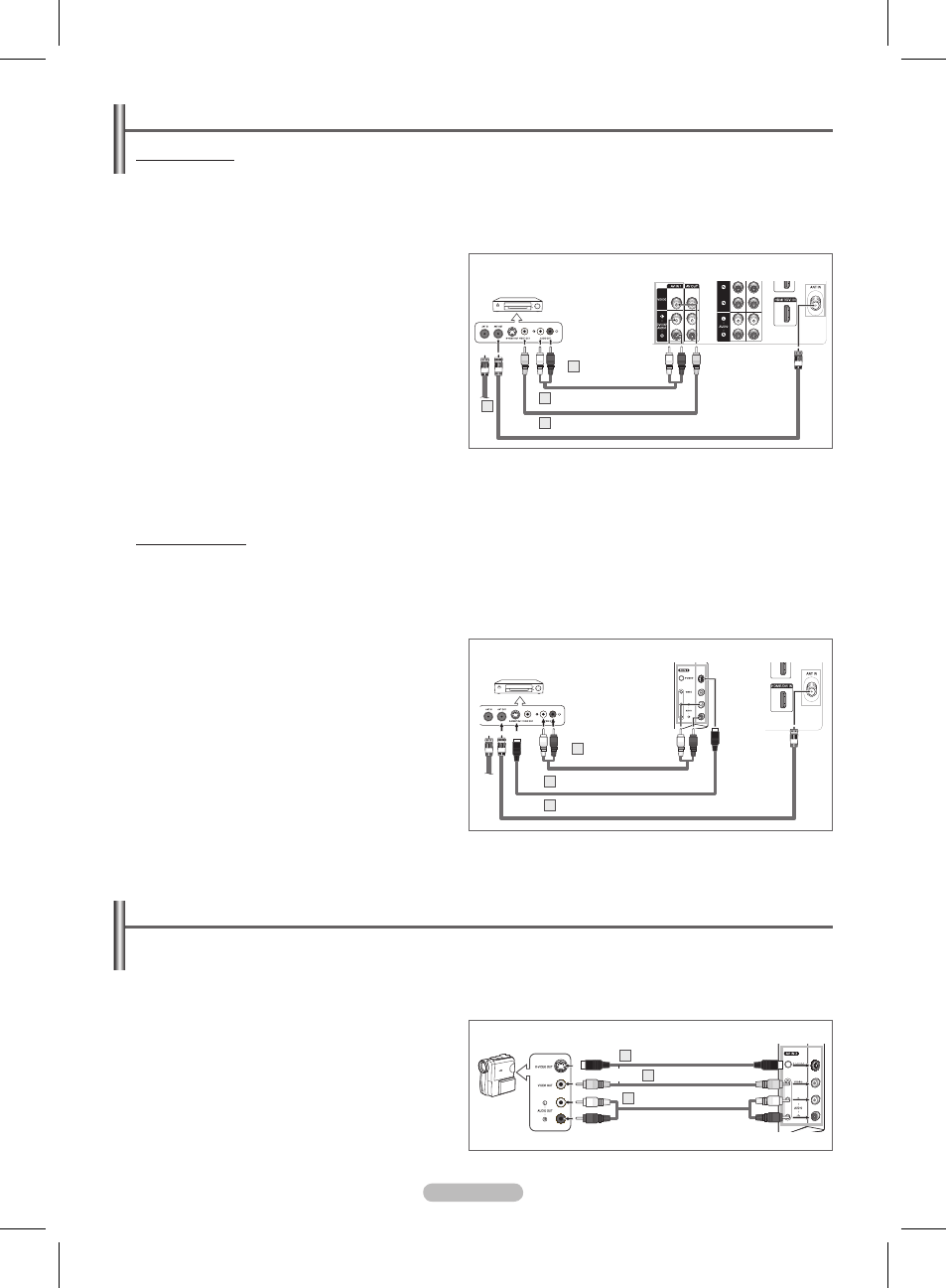

Connecting a VCR
Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system(according to the
instructions on page 6). Skip step 1 if you have not yet connected to an antenna or a cable system.
➢  Each VCR has a different back panel configuration.
 When connecting a VCR, match the color of the connection terminal to the cable.
1 Unplug the cable or antenna from the back of the TV.
2 Connect the cable or antenna to the ANT IN terminal on the
back of the VCR.
3 Connect an Antenna cable between the ANT OUT terminal
on the VCR and the ANT IN terminal on the TV.
4 Connect a Video Cable between the VIDEO OUT jack on
the VCR and the AV IN 1 [VIDEO] jack on the TV.
5 Connect Audio Cables between the AUDIO OUT jacks on
the VCR and the AV IN 1 [L-DVI IN/AUDIO-R] jacks on the
TV.
➢ If you have a “mono” (non-stereo) VCR, use a
Y-connector (not supplied) to hook up to the right and
left audio input jacks of the TV. If your VCR is stereo,
you must connect two cables.
➢ Also, you can connect to AV IN 2 on the side panel of TV.
S-Video Connection
Your Samsung TV can be connected to the S-Video jack of a VCR.
(This connection delivers a better picture when compared to the regular video connection above.)
➢  Each VCR has a different back panel configuration.
 When connecting a VCR, match the color of the connection terminal to the cable.
1 To begin, follow steps 1–3 in the previous section to
connect the antenna or cable to your VCR and your TV.
2 Connect an S-Video Cable between the S-VIDEO OUT jack
on the VCR and the AV IN 2 [S-VIDEO] jack on the TV.
3 Connect Audio Cables between the AUDIO OUT jacks on
the VCR and the AV IN 2 [L-AUDIO-R] jacks on the TV.
➢ Some games may be displayed with a cut off picture when
the TV is connected to a game player.
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
They allow you to view the camcorder tapes without using a VCR.
➢  Each Camcorder has a different back panel configuration.
 When connecting a Camcorder, match the color of the connection terminal to the cable.
1 Connect a Video Cable (or S-Video Cable) between the
AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the
VIDEO OUT jack on the camcorder.
2 Connect Audio Cables between the AV IN 2
[L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on
the camcorder.
Rear of the TV
VCR
2
1
Audio Cable
(Not supplied)
5
Video Cable(Not supplied) 4
Antenna Cable(Not supplied) 3
Rear of the TV
VCR
Audio Cable
(Not supplied)
3
S-Video Cable(Not supplied) 2
Antenna Cable(Not supplied) 1
Side of the TV
Camcorder
Audio Cable(Not supplied) 2
S-Video Cable(Not supplied) 1
Side of the TV
Video Cable(Not supplied) or
