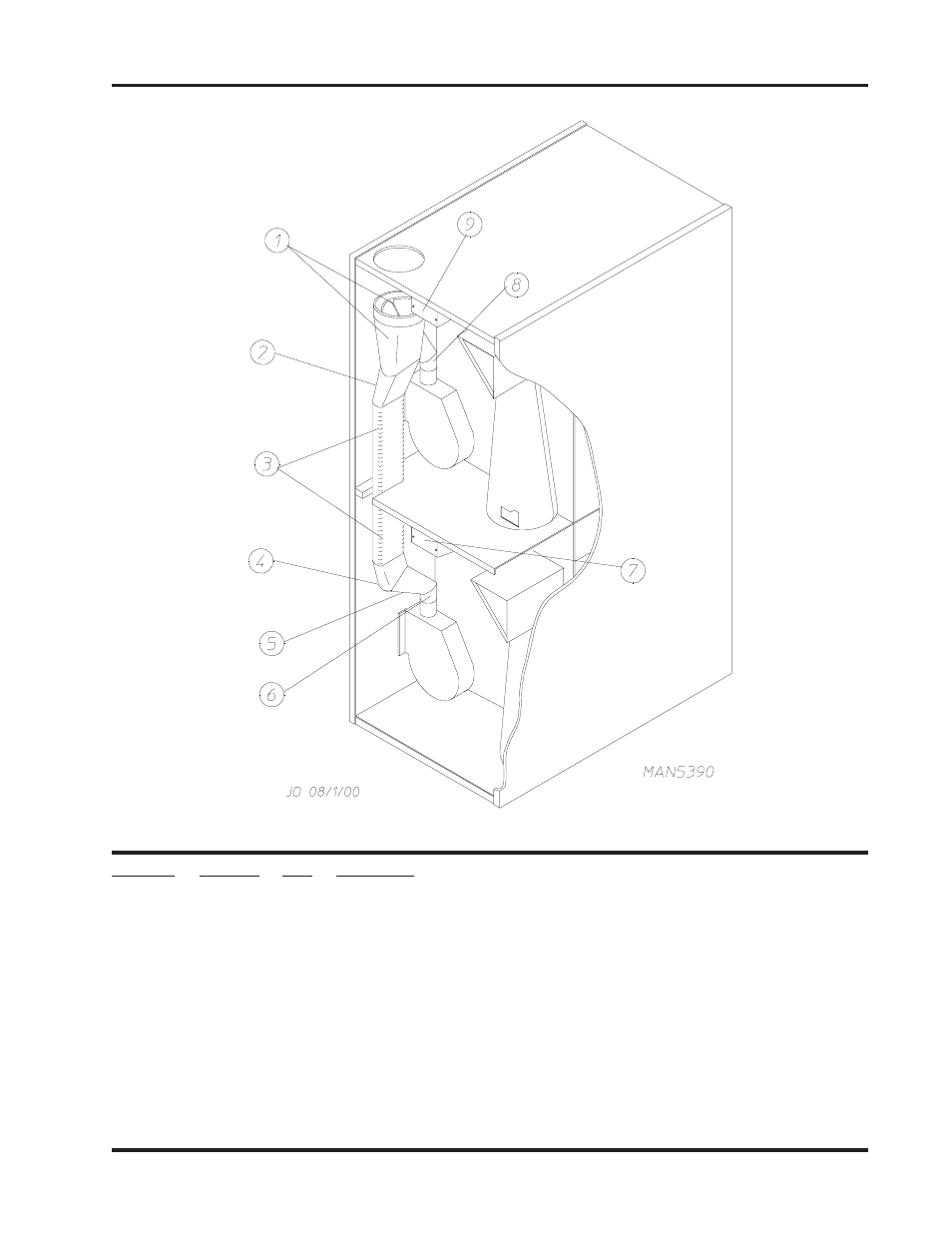

Exhaust Ducting Assembly

Illus. No.

Part No.

Qty.

Description

1

880505

1

Wye Branch Damper Assembly

2

143527

1

6” Round x 7” Oval Straight Boot

3

143539

1

15-1/2” Long x 7” Oval Duct

4

143537

1

7” Oval x 45º Elbow

5

143538

1

6” Round x 7” Oval Straight Boot

6

143536

2

6” Round x 45º Elbow

7

315300

1

Rear Wiring Box Cover

8

143536

2

6” Round x 45º Elbow

9

315300

1

Rear Wiring Box Cover

117505

*

Aluminum Duct Tape (sold by the foot) (not illustrated)

*

As required.
