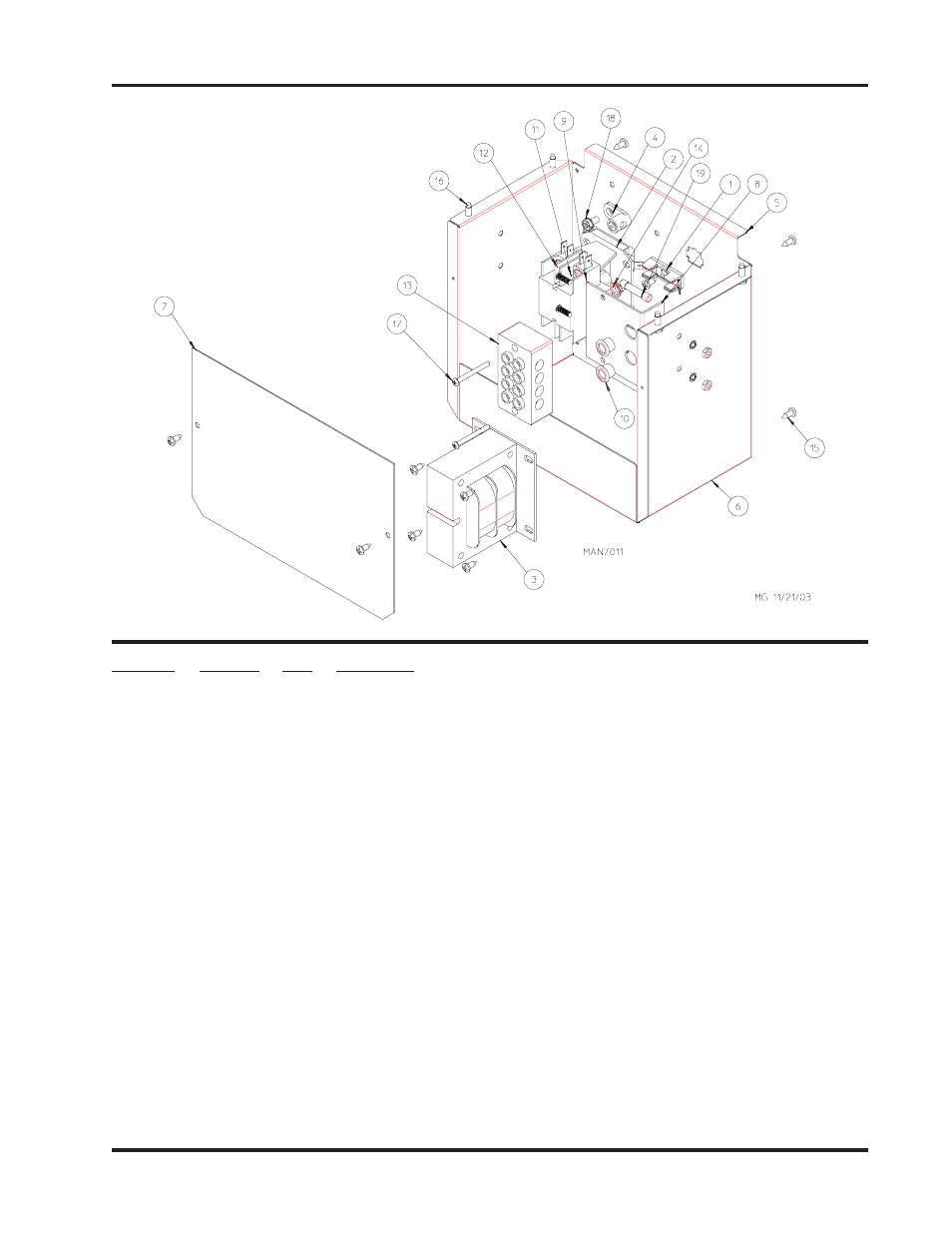

Single-Phase (1ø) Motor, Electrical Relay Panel Assembly
Illus. No. Part No. Qty. Description
1 136008 1 or 2 Fuse Holder
2 132475 1 Double Pole 24 VAC Motor Contactor
3 855255 1 Transformer Assembly (120V)
855256 1 Transformer Assembly (208-240V)
4 121010 1 Terminal Lug
5 315293 1 Rear Wire Box Back Plate
6 315294 1 Rear Wire Box Body
7 315300 1 Rear Wiring Box Cover
8 353142* 1 Power Block Mounting Bracket
9 153528* 2 #8-32 x 1/2” Self-Clinching Stud
10 121300* 2 Open/Closed Bushing
11 153012* 2 Star Washer
12 152001* 2 #8-32 x 3/8” Hex Nut
13 120701* 1 4-Position Terminal Block
14 151000* 2 #6-32 Pal Nut
15 150301 11 #8-18 x 7/16” Phillips Pan Head TEK Screw
16 150300 4 #10-16 x 1/2” Hex Washer TEK Screw
17 150009* 2 #6-32 x 1-1/2” Phillips Machine Screw
18 120910 1 Green Ground Screw
19 136049 1 or 2 3/4-amp Slo-Blo Fuse
* Parts for top electric box only.
