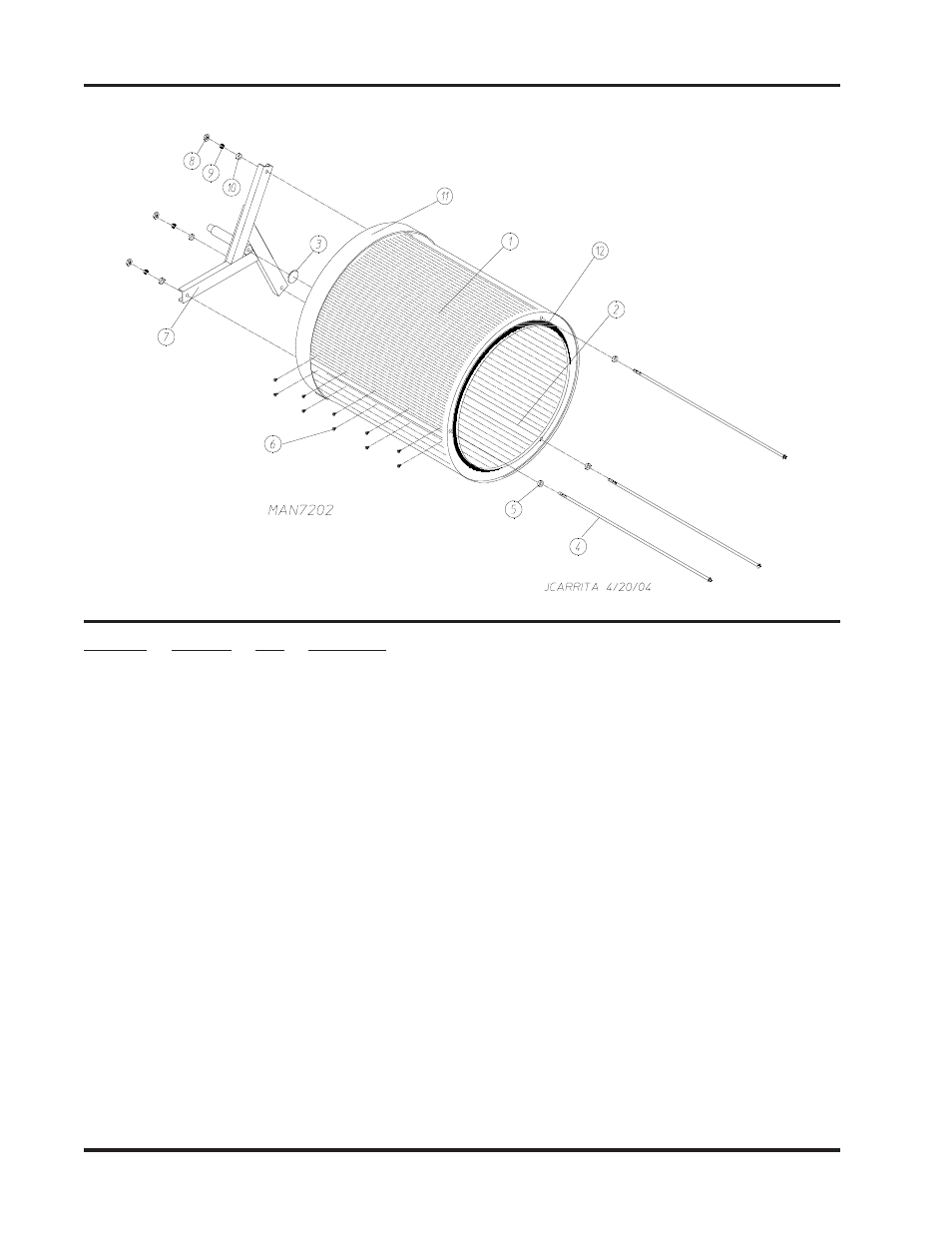

Basket (Tumbler)/Support Assembly
Illus. No. Part No. Qty. Description
1 800831 1 Galvanized Basket and Support Assembly Complete
(includes illus. nos. 1 through 12)
800721 1 Galvanized Basket
(includes illus. nos. 1, 2, 6, 11, and 12)
800891 1 Stainless Steel Basket and Support Assembly Complete
(includes illus. nos. 1 through 11)
800841 1 Stainless Steel Basket
(includes illus. nos. 1, 2, and 6)
2 301315 2 Short Basket (tumbler) Rib ONLY
301316 1 Tall Basket (tumbler) Rib ONLY
301414 2 Stainless Steel Short Basket (tumbler) Rib ONLY
301415 1 Stainless Steel Tall Basket (tumbler) Rib ONLY
3 115986 1 Felt Tumbler Pad
4 100915 3 3/8-16 x 31” Tie Rod
5 153004 3 3/8” Flat Washer
6 154210 30 5/32” x 3/16” Pop Rivet
7 800617 1 Basket (tumbler) Support ONLY
8 152027 3 3/8-16 Hex Nut
9 153005 3 3/8” Lock Washer
10 153004 3 3/8” Flat Washer
11 116003 1 Felt Collar
12 115992 1 Felt Collar
401010 1 #847 Adhesive for Felt Collar (5 oz. tube) (not illustrated)
