Upper pocket sensor bracket assembly – American Dryer Corp. AD-236 User Manual

Page 15

background image

13

Telephone: (508) 678-9000

Fax: (508) 678-9447

Illus. No.

Part No.

Qty.

Description

1

800769

1

Temperature Sensor Bracket ONLY

855260

1

Temperature Sensor Bracket Complete
(includes illus. nos. 1 through 11)

2

882931

1

Temperature Sensor Probe
(includes illus. nos. 2, 8, 10, and 11)

3

130112

1

225º Thermostat

4

150005

2

#6-32 x 1/4” Round Head Machine Screw

5

153010

2

Star Washer

6

152000

2

#6-32 Hex Nut

7

150309

2

#10-16 x 1/2” Hex Head TEK Crimptite Screw

8

122605

1

4-Pin Connector (female)

9

121300

1

Open/Closed Bushing

10

121494

3

3/16” Push Mount Wire Tie

11

154007

2

1/4” Push On Fastener

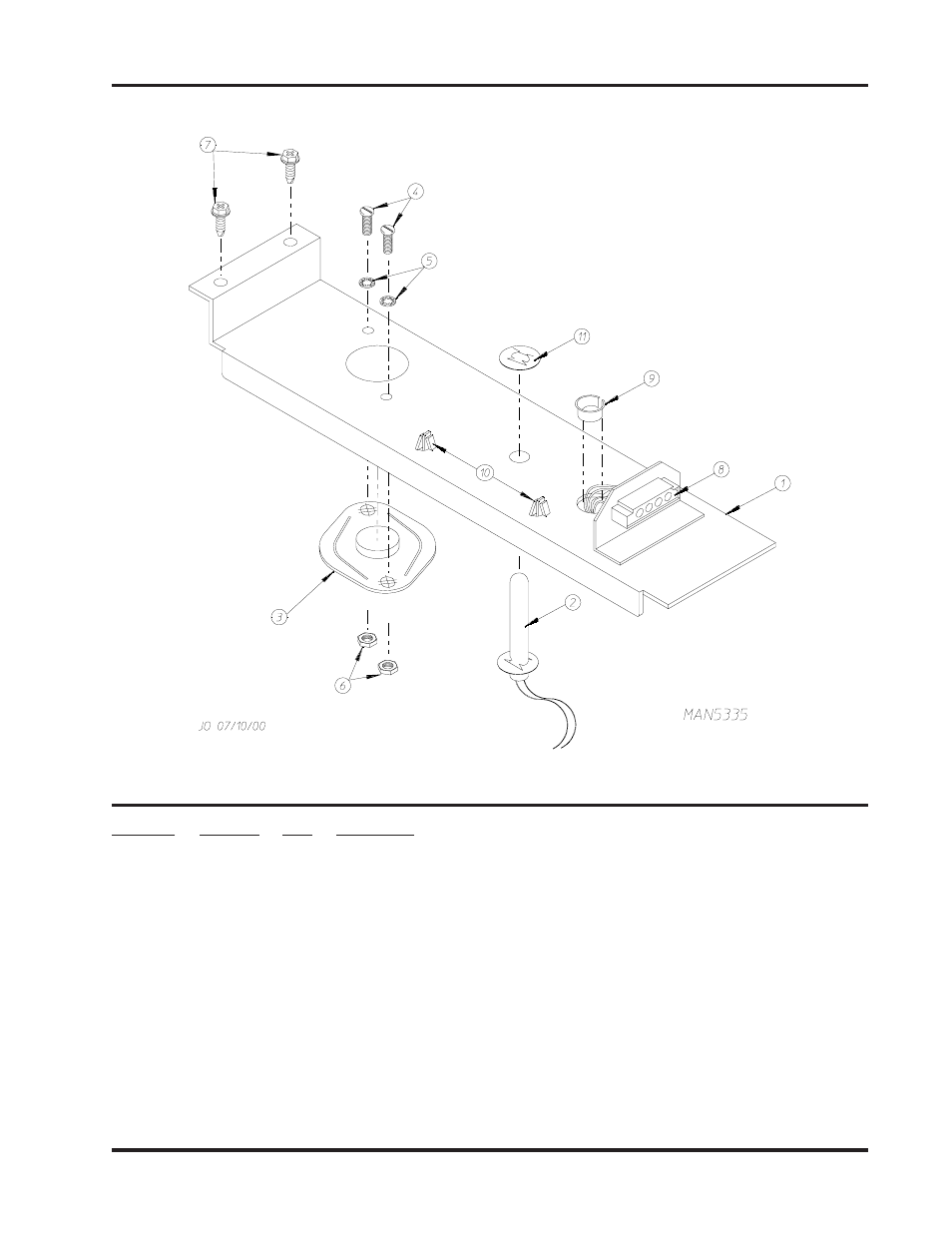

Upper Pocket Sensor Bracket Assembly
